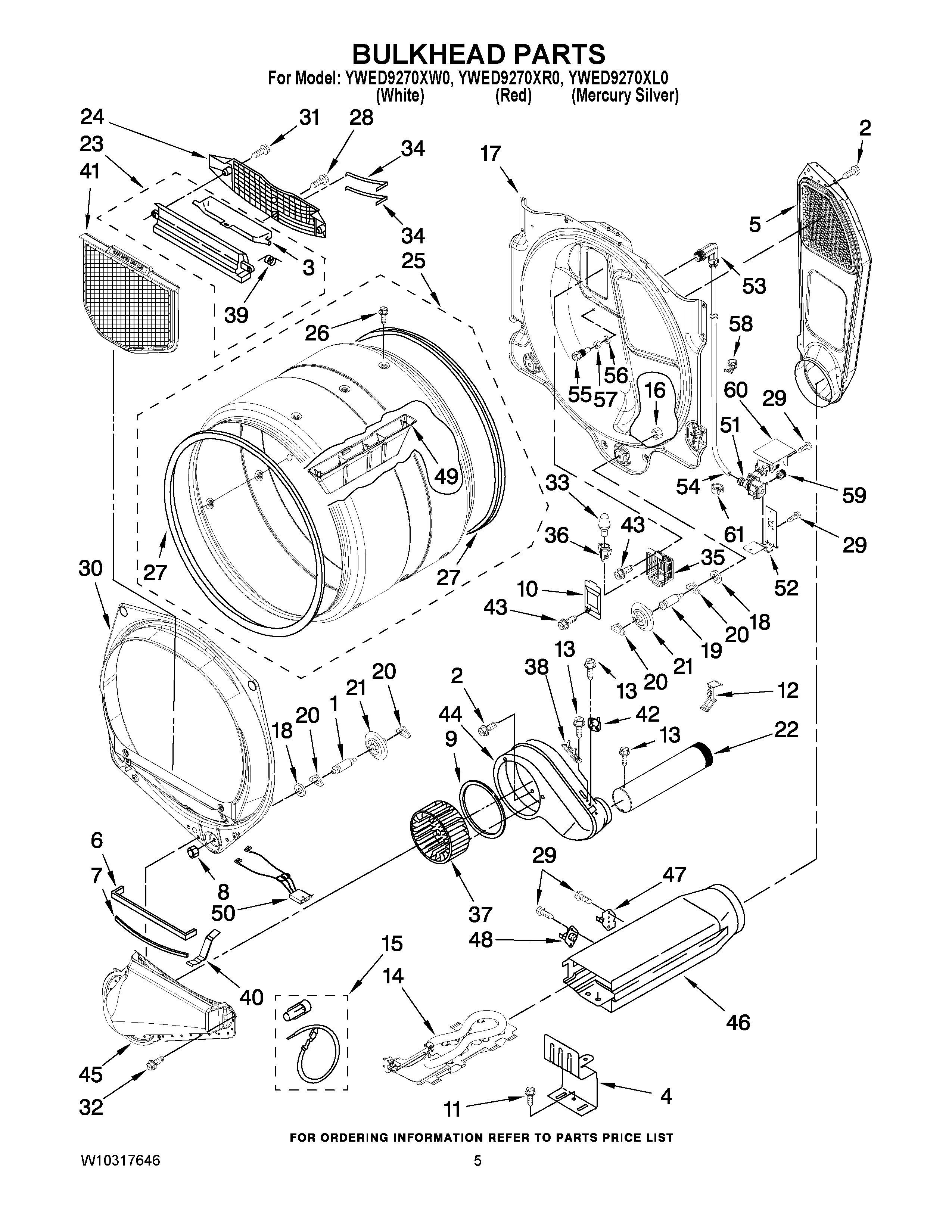

YWED9270XW0 03 – BULKHEAD PARTS

YWED9270XW0 03 – BULKHEAD PARTS

Written by

in

YWED9270XW0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11222846 Whirlpool Door
4	8066099 Whirlpool Bracket
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	WP697770 Whirlpool Blower Cover Plate Seal
10	W11226088 Whirlpool Lens Assembly
11	WP693995 Whirlpool Screw
12	W11684573 Whirlpool Clip Assembly
13	WP90767 Whirlpool Screw
14	WP3387747 Whirlpool Dryer Heating Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	Bulkhead, Rear
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WP8563728 Whirlpool Exhaust Pipe
23	W11219327 Whirlpool Grille Outlet
24	W11086603 Whirlpool Dryer Link Screen Air Grille
25	W10865330 Whirlpool Drum
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
30	8565061 Whirlpool Bulkhead Assembly
31	WP3387230 Whirlpool Screw
32	WP489463 Whirlpool Refrigerator Screw
33	WP22002263 Whirlpool Dryer 10W Light Bulb
34	WP3387223 Whirlpool Electrode Assembly
35	8578825 Whirlpool Bracket
36	W11222979 Whirlpool Socket
37	WP697772 Whirlpool Dryer Blower Wheel
38	WP3392519 Whirlpool Dryer Thermal Fuse
39	WP3394986 Whirlpool Spring
40	WP8066208 Whirlpool Clip
41	W10120998 Whirlpool Dryer Lint Screen Filter
42	WP8577274 Whirlpool Dryer Thermistor
44	W10888146 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
46	W10802681 Whirlpool Box Assembly
47	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48	THRMST-FIX
49	W10852390 Whirlpool Drum Baffle
50	WP3406653 Whirlpool Wire Harness
51	W10815373 Whirlpool Valve
52	BRACKET, VALVE
53	NOZZLE BODY ASSEMBLY (INCLUDES ITEMS, 56,5
54	WPL W10044598
55	WPW10277503 Whirlpool Nozzle
56	W10044579 Whirlpool Washer
57	W10044628 Whirlpool Nut
58	WP3391018 Whirlpool Wire Tie
59	W10859554 Whirlpool Coupler
60	W10184825 Whirlpool Cover
61	W10044599 Whirlpool Clip
