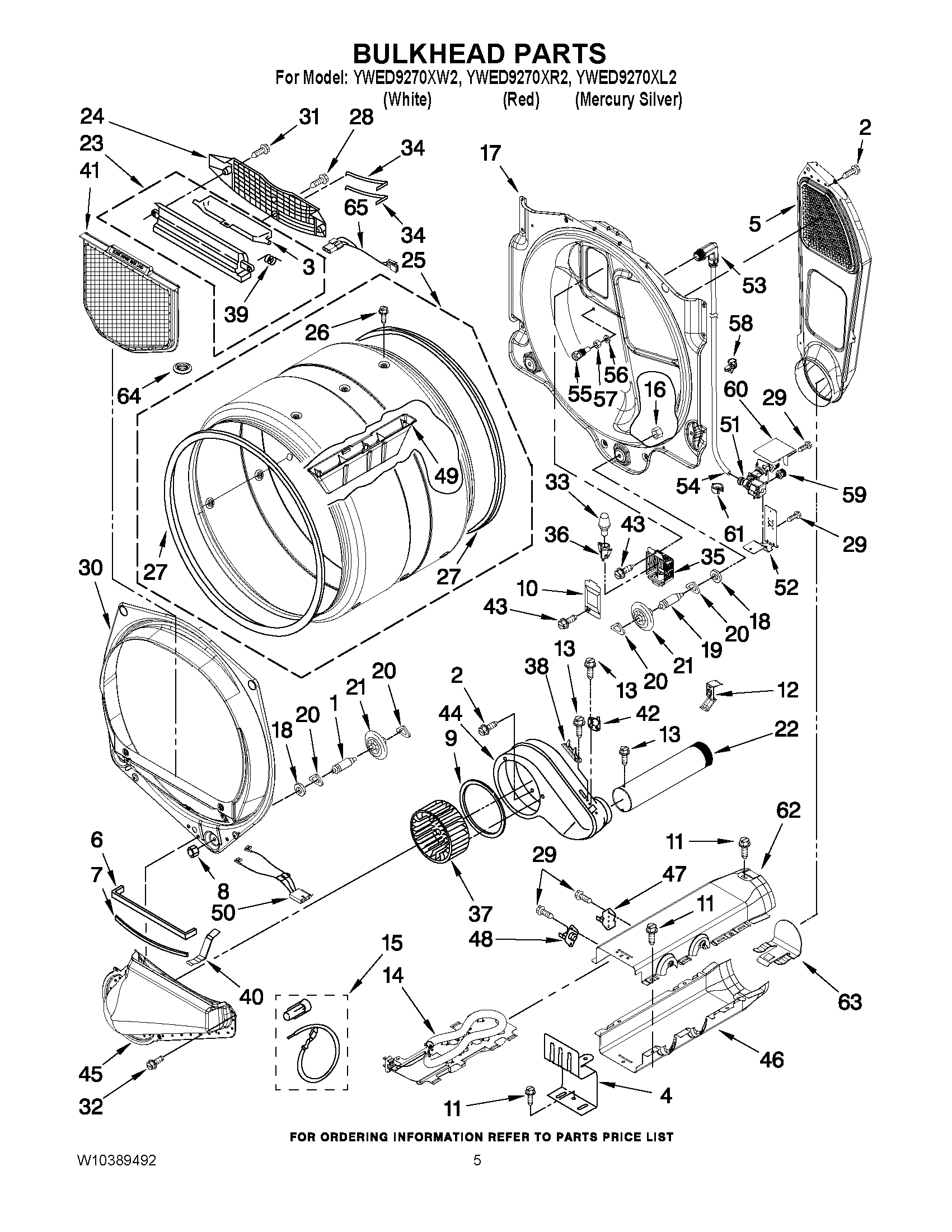

YWED9270XW2 03 – BULKHEAD PARTS
Written by
in
YWED9270XW2 03 – BULKHEAD PARTS
Products
Position
Product
1
SHAFT
2
WP488729 Whirlpool Refrigerator Door Screw
3
W11222846 Whirlpool Door
4
8066099 Whirlpool Bracket
5
WP3387911 Whirlpool Air Duct
6
WP697813 Whirlpool Seal
8
WPW10080210 Whirlpool Nut
9
WP697770 Whirlpool Blower Cover Plate Seal
10
W11226088 Whirlpool Lens Assembly
11
WP693995 Whirlpool Screw
12
W11684573 Whirlpool Clip Assembly
13
WP90767 Whirlpool Screw
14
WP8544771 Whirlpool Dryer Heating Element
15
279457 Whirlpool Dryer Heating Element Wide Spade Connection
16
WPW10080190 Whirlpool Nut
17
Bulkhead, Rear
18
W11236646 Whirlpool Washer Assembly
19
SHAFT
20
WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21
WPW10314173 Whirlpool Dryer Drum Support Wheel
22
WP8563728 Whirlpool Exhaust Pipe
23
W11219327 Whirlpool Grille Outlet
24
W11086603 Whirlpool Dryer Link Screen Air Grille
25
W10865330 Whirlpool Drum
26
W10853898 Whirlpool Screw
27
280114 Whirlpool Dryer Drum Seal
30
8565061 Whirlpool Bulkhead Assembly
31
WP3387230 Whirlpool Screw
32
WP489463 Whirlpool Refrigerator Screw
33
WP22002263 Whirlpool Dryer 10W Light Bulb
34
WP3387223 Whirlpool Electrode Assembly
35
8578825 Whirlpool Bracket
36
W11222979 Whirlpool Socket
37
WP697772 Whirlpool Dryer Blower Wheel
38
WP3392519 Whirlpool Dryer Thermal Fuse
39
WP3394986 Whirlpool Spring
40
WP8066208 Whirlpool Clip
41
W10120998 Whirlpool Dryer Lint Screen Filter
42
WP8577274 Whirlpool Dryer Thermistor
44
W10888146 Whirlpool Housing
45
WPW10128606 Whirlpool Lint Duct
46
HOUSING TAB, HEATER BOX
47
279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48
THRMST-FIX
49
W10852390 Whirlpool Drum Baffle
50
WP3406653 Whirlpool Wire Harness
51
W10815373 Whirlpool Valve
52
W10346402 Whirlpool Bracket
53
NOZZLE BODY ASSEMBLY (INCLUDES ITEMS, 56,5
54
WPL W10044598
55
WPW10277503 Whirlpool Nozzle
56
W10044579 Whirlpool Washer
57
W10044628 Whirlpool Nut
58
WP3391018 Whirlpool Wire Tie
59
W10859554 Whirlpool Coupler
60
W10184825 Whirlpool Cover
61
W10044599 Whirlpool Clip
62
WP8544769 Whirlpool Box
63
8544776 Whirlpool Clip Assembly
64
W10665050 Whirlpool Plug
65
HARNESS, MOISUTRE SENSOR
←
