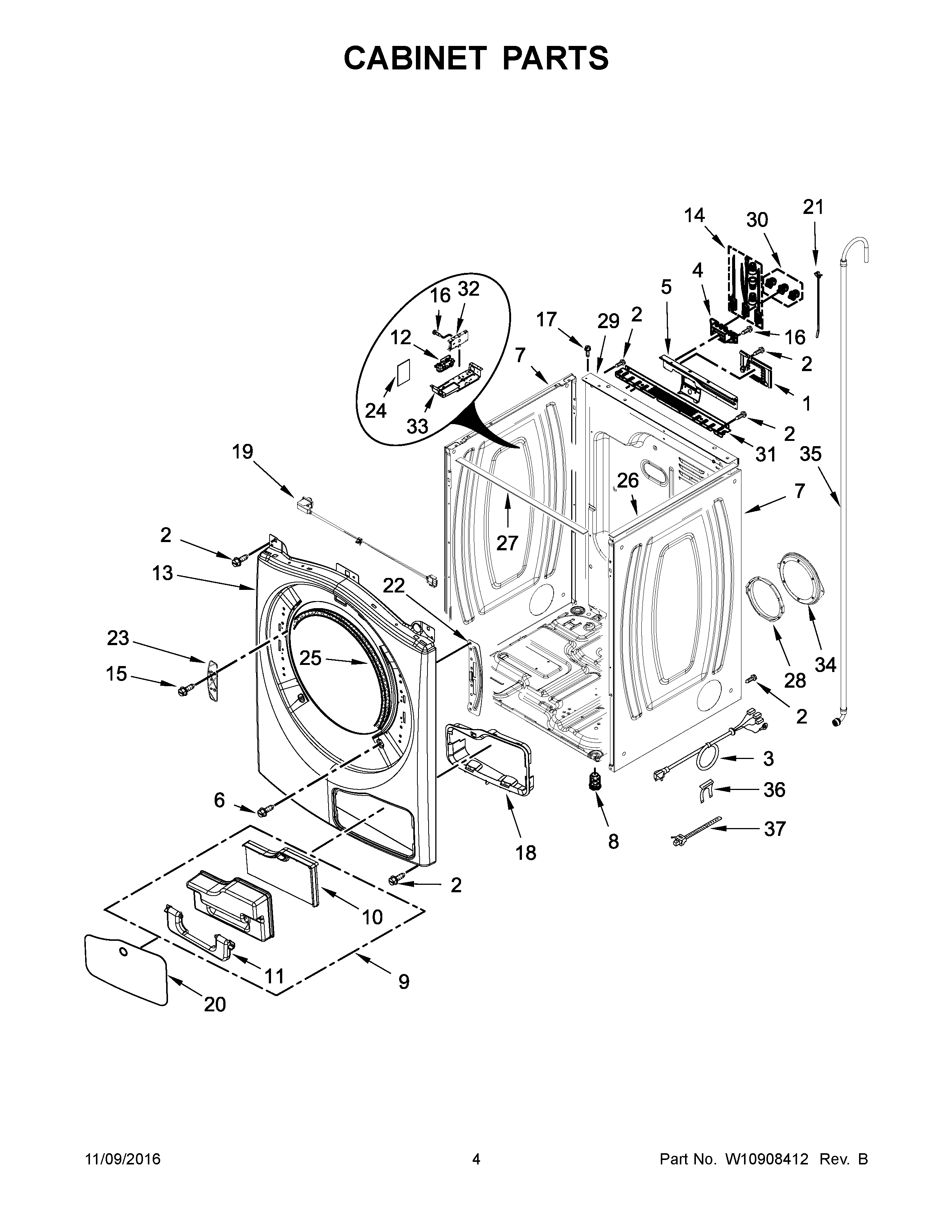

YWED9290FC0 03 – CABINET PARTS

Products

PositionProduct
NIFOOT, OPTIONAL (EXTENDED LENGTH) (NOT INCLUDED)
1WPW10316167 Whirlpool Dishwasher Terminal Cover
2WP488729 Whirlpool Refrigerator Door Screw
3W11710615 Whirlpool Cord-Power
4WP3397659 Whirlpool Terminal Block
5BRACKET, TERMINAL CROSS BAR
6WP308685 Whirlpool Microwave Screw
7AW11315726 Whirlpool Panel Assembly
7W11233548 Whirlpool Panel
849621 Whirlpool Leveling Feet
9W10897401 Whirlpool Housing
10W11199484 Whirlpool Screen Assembly
11W10739609 Whirlpool Handle Assembly
12WPW10652285-includeCORE Whirlpool WPW10652285 Washer Electronic Control Board + Core
13AW11103937 Whirlpool Panel
13W10682653 Whirlpool Panel
14279318 Whirlpool Terminal
15SCREW
16WP3390631 Whirlpool Screw
18W10739602 Whirlpool Control Bezel
18AW10739601 Whirlpool Control Bezel
19WPW10350906 Whirlpool Door Switch
20W11168387 Whirlpool Cover
20ADOOR, SECONDARY LINT (CHROME SHADOW)
21WP3391018 Whirlpool Wire Tie
22BRACKET, DOOR HINGE
23WPW10208250 Whirlpool Strike
24W11409002 Whirlpool Pad
25WP3387242 Whirlpool Seal
26SEAL – STRIP
27SEAL – STRIP
28GASKET, FAN
29PANEL, REAR
30279393 Whirlpool Terminal Block Screw and Nut Kit
31WPW10208382 Whirlpool Dryer Bracket
32W11038309-includeCORE Whirlpool W11038309 Washer Electronic Control Board + Core
33BRACKET, CONTROL
34FAN GUARD ASSEMBLY
35W11169712 Whirlpool Hose
36W11712577 Whirlpool Clip
37WPW10155270 Whirlpool Wire Tie
