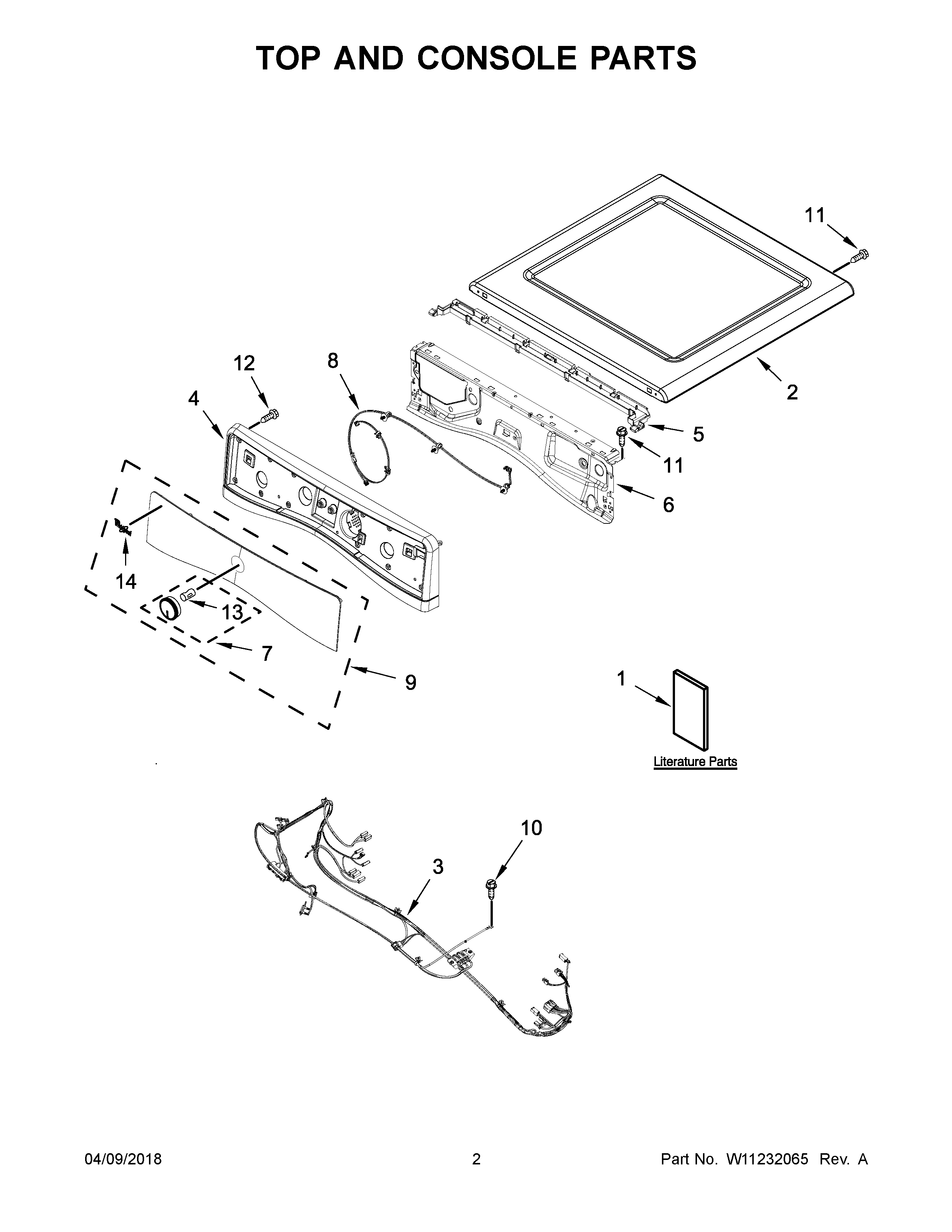

YWED92HEFW2 02 – TOP AND CONSOLE PARTS

YWED92HEFW2 02 – TOP AND CONSOLE PARTS

Written by

in

YWED92HEFW2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CWIRING DIAGRAM
1EENERGY GUIDE
1AINSTALLATION INSTRUCTIONS
1DQUICK START GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
2CW10628221 Whirlpool Top
2AWPW10460919 Whirlpool Top
2BWPW10316282 Whirlpool Top Assembly
2WPW10208383 Whirlpool Top Panel
3HARNESS, MAIN
4WPW10391519 Whirlpool Console
4BW10875910 Whirlpool Console Assembly
4AW10876224 Whirlpool Console
4CW10876286 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10875909 Whirlpool Timer Knob
8W10837344 Whirlpool Wire Harness
9CASSEMBLY, OVERLAY (BLACK)
9W10919216 Whirlpool Control Panel
9AW10919217 Whirlpool Control Panel
9BW10919218 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WP8536939 Whirlpool Spring Clip
14BADGE (WHITE)
14AW10510982 Whirlpool Nameplate
