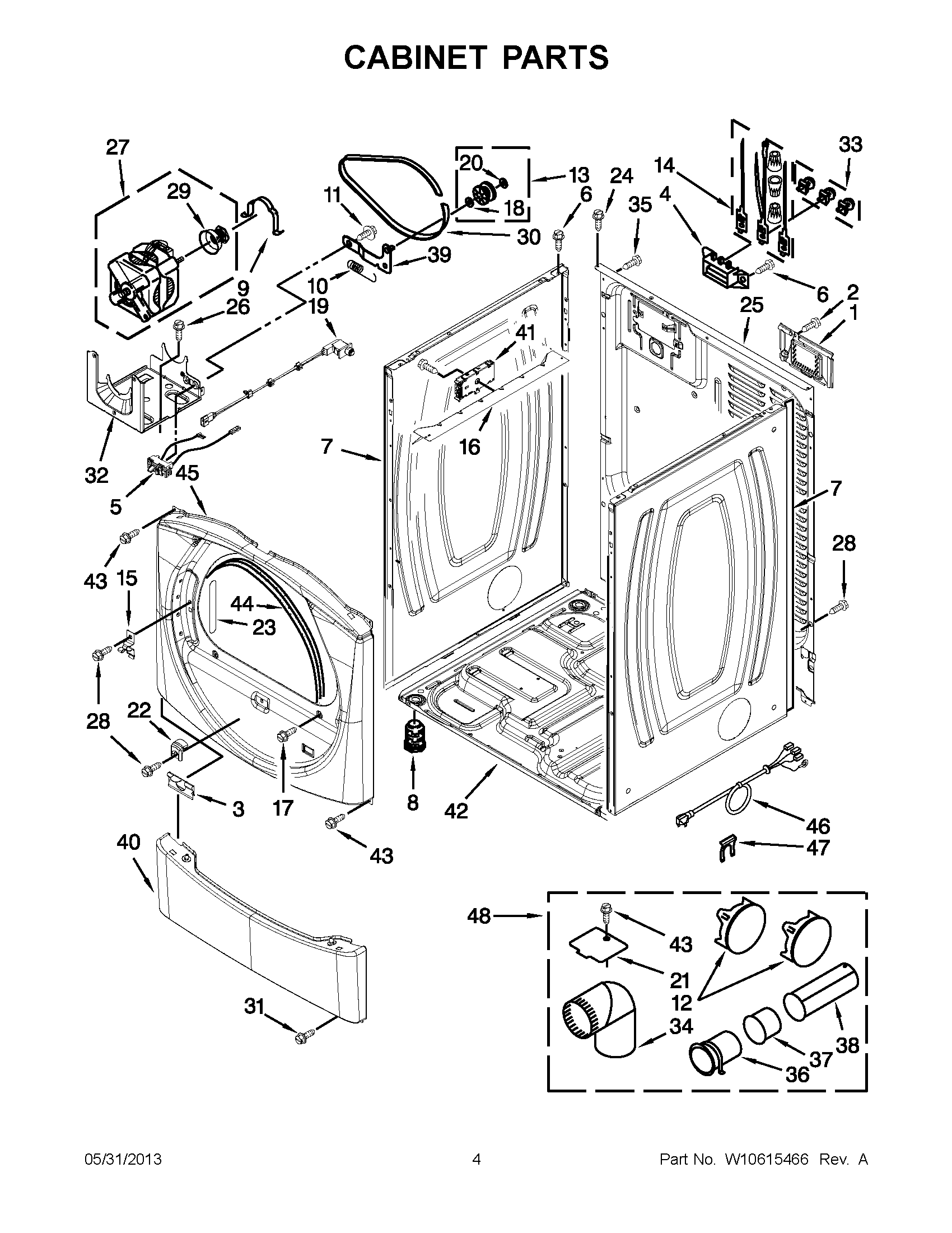

YWED9371YL1 02 – CABINET PARTS

YWED9371YL1 02 – CABINET PARTS

Written by

in

YWED9371YL1 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WPW10119283 Whirlpool Terminal Cover
2WP3390631 Whirlpool Screw
3W11295573 Whirlpool Clip
4WP3397659 Whirlpool Terminal Block
5W10847984 Whirlpool Switch
6WP90767 Whirlpool Screw
7W10542714 Whirlpool Panel
7W10542715 Whirlpool Panel
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14279318 Whirlpool Terminal
15WP8565122 Whirlpool Strike Assembly
16WP8563727 Whirlpool Bracket
17WP308685 Whirlpool Microwave Screw
18WPW10121334 Whirlpool Washer
19WPW10350910 Whirlpool Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
228565083 Whirlpool Ramp Assembly
23W10085210 Whirlpool Label
24W11693756 Whirlpool Screw Assembly
25PANEL, REAR
26SCREW
27279787 Whirlpool Dryer Drive Motor
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31SCREW
32W11481730 Whirlpool Bracket
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35W10850756 Whirlpool Screw
36WP8563747 Whirlpool Exhaust Pipe
37WP8563748 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40W10251210 Whirlpool Toe Panel
40WP8540621 Whirlpool Toe Panel
41CONTROL BOARD
42W11215531 Whirlpool Base
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
45PANEL, FRONT (INCLUDES TOE PANEL CLIP) (WHITE)
45PANEL, FRONT (INCLUDES TOE PANEL CLIP) (SILVER)
46CORD-POWER
47W11712577 Whirlpool Clip
48W10470674 Whirlpool Dryer Side Vent Exhaust Kit
