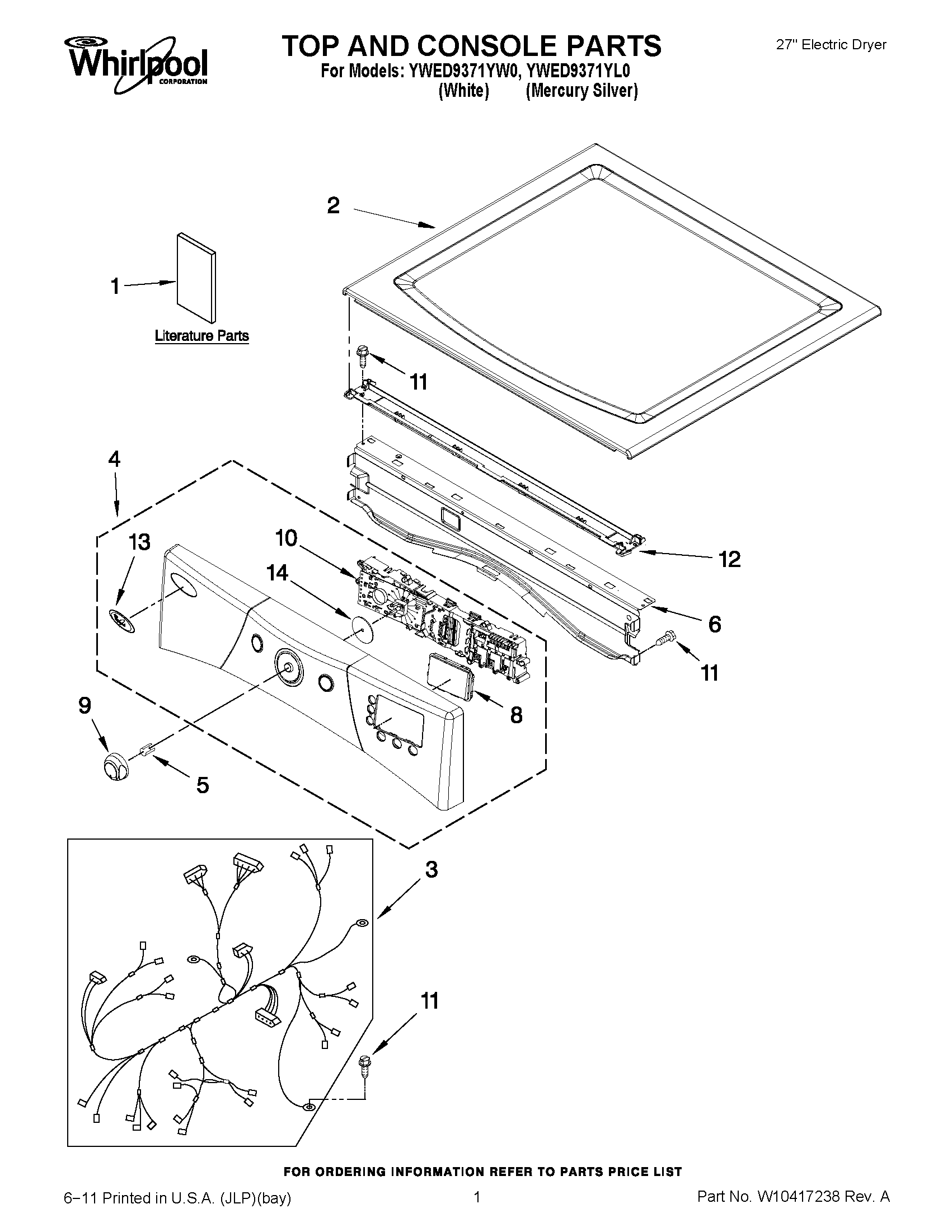

YWED9371YW0 01 – TOP AND CONSOLE PARTS

YWED9371YW0 01 – TOP AND CONSOLE PARTS

Written by

in

YWED9371YW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2WPW10336091 Whirlpool Top
2WPW10336080 Whirlpool Top Assembly
3HARNESS, MAIN
4PANEL, CONSOLE (WHITE)
4PANEL, CONSOLE (SILVER)
5WP8536939 Whirlpool Spring Clip
6WP8565237 Whirlpool Bracket Assembly
8WINDOW, DISPLAY
9WPW10251394 Whirlpool Knob
10WPW10387234 Whirlpool Electronic Control Board + Core
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13Medallion
14SEAL, USER INTERFACE
