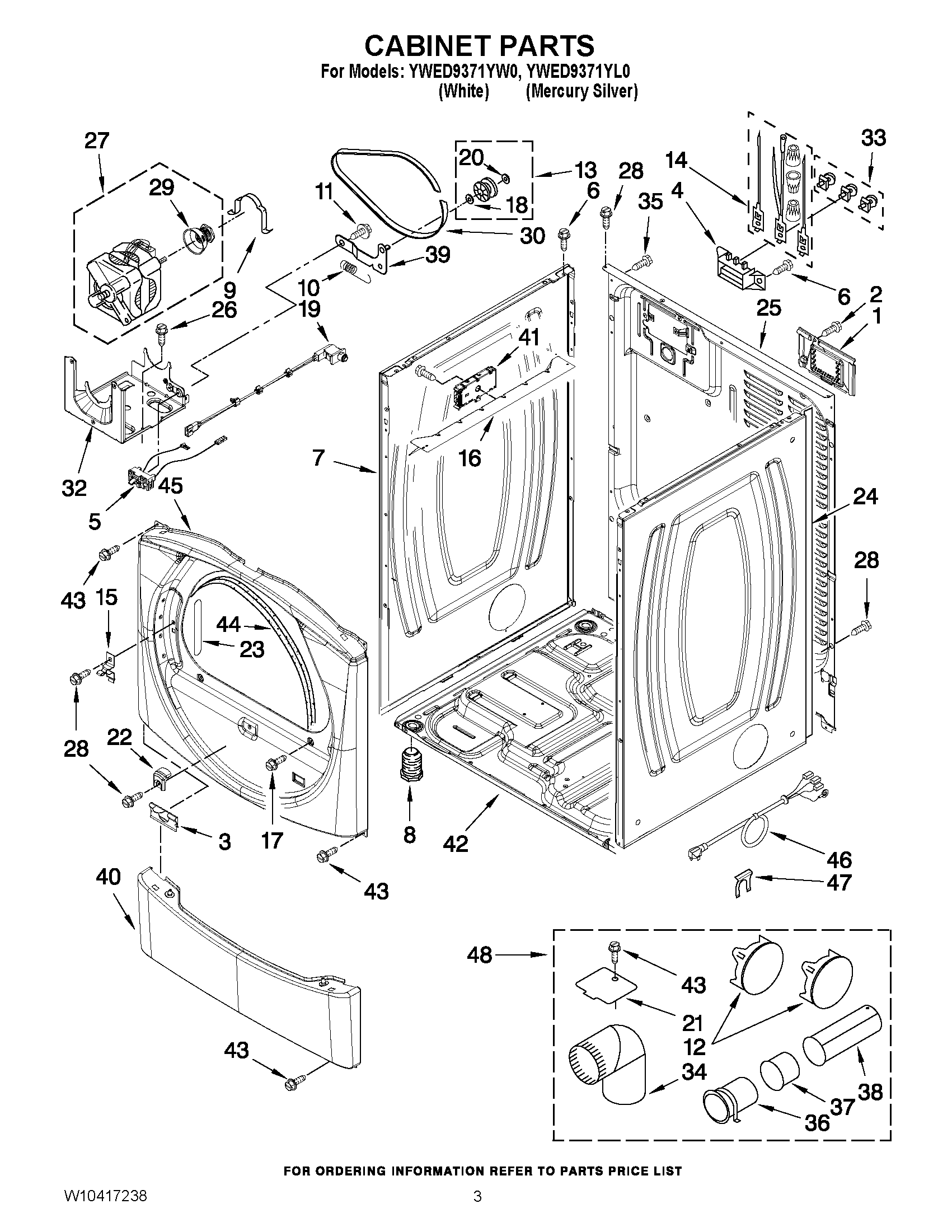

YWED9371YW0 02 – CABINET PARTS

Products

Position	Product
NI	W10331132 Whirlpool Plug
NI	49621 Whirlpool Leveling Feet
1	WPW10119283 Whirlpool Terminal Cover
2	WP90767 Whirlpool Screw
3	W11295573 Whirlpool Clip
4	WP3397659 Whirlpool Terminal Block
5	WPW10411937 Whirlpool Switch
7	W10542715 Whirlpool Panel
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	WP8565122 Whirlpool Strike Assembly
16	WP8563727 Whirlpool Bracket
17	WP308685 Whirlpool Microwave Screw
18	WPW10121334 Whirlpool Washer
19	W10318609 Whirlpool Dryer Door Switch
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10354249 Whirlpool Cover
22	8580015 Whirlpool Ramp
23	W10085210 Whirlpool Label
24	W10542714 Whirlpool Panel
25	PANEL, REAR
26	SCREW
27	279787 Whirlpool Dryer Drive Motor
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
32	W11481730 Whirlpool Bracket
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
35	W10850756 Whirlpool Screw
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10837240 Whirlpool Dryer Idler Pulley
40	W10251210 Whirlpool Toe Panel
40	WP8540621 Whirlpool Toe Panel
41	WPW10405846-includeCORE Whirlpool WPW10405846 Refrigerator Electronic Control Board + Core
42	W11215531 Whirlpool Base
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP3387242 Whirlpool Seal
45	WPL 8580257
45	WPL W10251204
46	CORD-POWER
47	W11712577 Whirlpool Clip
