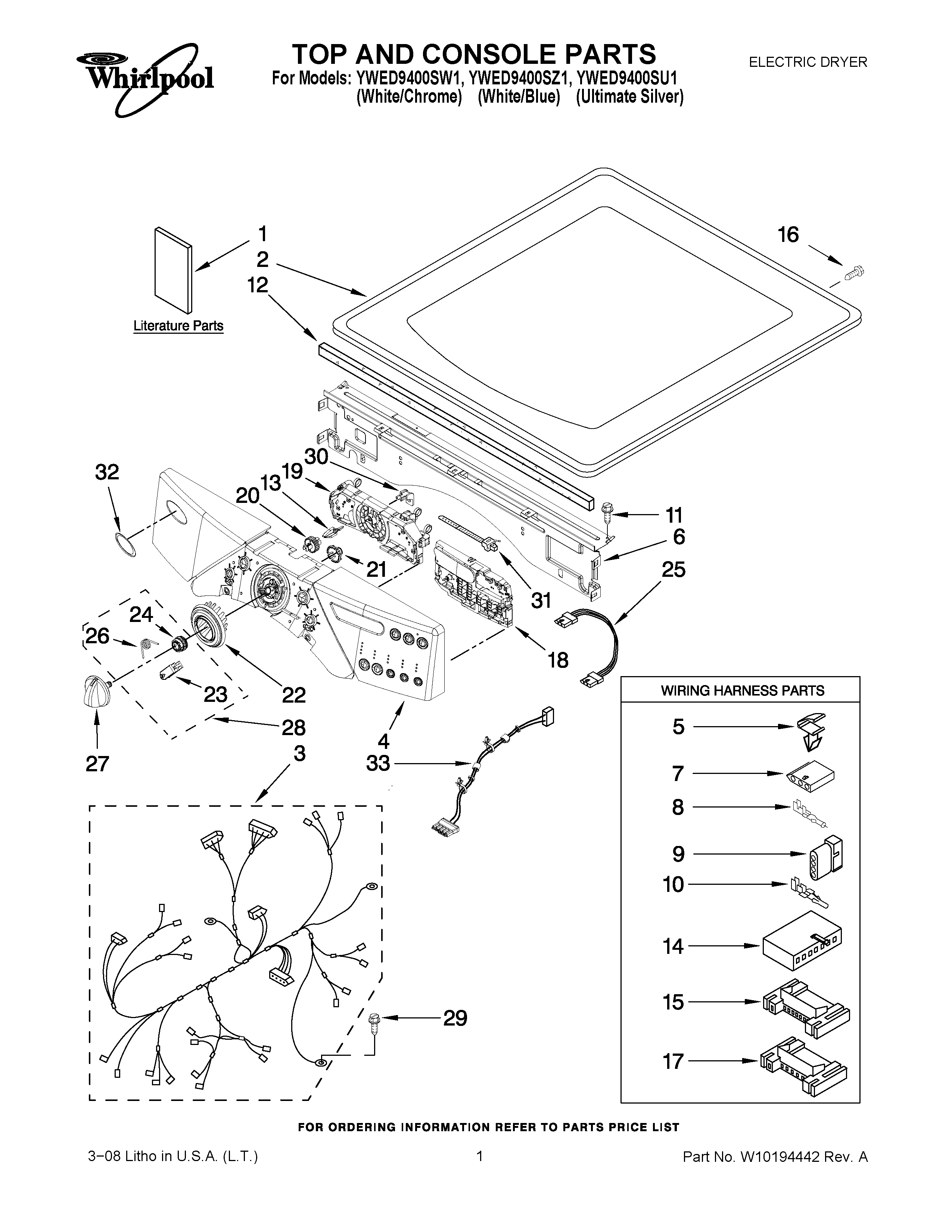

YWED9400SW1 01 – TOP AND CONSOLE PARTS

YWED9400SW1 01 – TOP AND CONSOLE PARTS

Written by

in

YWED9400SW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, QUICK START
1TECH SHEET
1Installation, Diagnostic Guide
1Use & Care Guide
2Top (Ultimate Silver)
2Top (White)
3Harness, Main
4Panel, Console (Includes Illus: 20,21,22,27,28.) (White)
4Panel, Console (Includes Illus: 20,21,22,27,28.)
4Panel, Console (Includes Illus: 20,21,22,27,28.) (White/Blue)
5WP3394427 Whirlpool Clip
6Bracket, Console (Includes No.12)
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12W10112267 Whirlpool Seal Assembly
13W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
143936150 Whirlpool Connector
153395683 Whirlpool Connector
16303776 Whirlpool Dishwasher Screw
172203186 Whirlpool Connector
18User Interface (Right)
19User Interface (Center) (Includes: Illus. 13)
20Encoder-Wheel
21Retainer-Snap
22KNOB, LIGHT RING (INCLUDES: ITEM 21)
23Rast, Wheel Assy. (Service Only With Item. 28)
24Detent Wheel (Service Only With Illus. 28)
25Harness, Communication
26Knob, Spring (Service Only With Item 28)
27WPL W10116706
27Knob, Control (Includes: Item. 21) (Ultimate Silver)
27Knob, Control (Includes: Item. 21) (White)
28Encoder, Wheel Kit (Includes Items: 23, 24, & 26
29W11693756 Whirlpool Screw Assembly
30W10112268 Whirlpool Clip
31WP3391018 Whirlpool Wire Tie
32Medallion
33WPL W10111020
