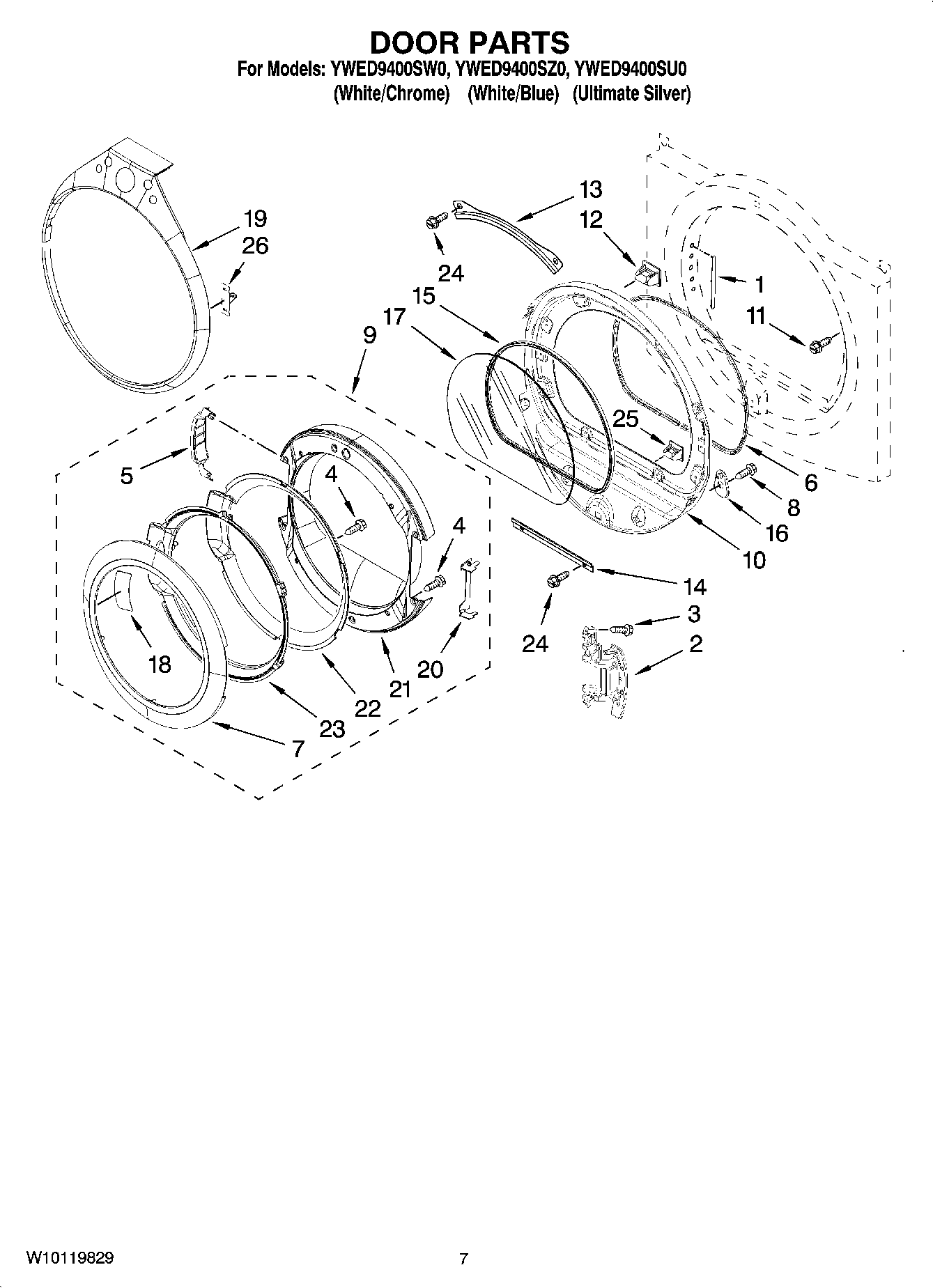

YWED9400SZ0 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	8579666ARP Whirlpool Door Kit
	WPL 8212605
	8541503 Whirlpool Stacking Kit
	8212450A Whirlpool Dryer Rack Assembly
	PAINT, TOUCH-UP (1/2oz.) (Black)
	ACCESSORY PARTS, KIT, HOLD DOWN
	PAINT, BULK (1 qt.) (Black (Uncut))
	4392067 Whirlpool Dryer Repair Kit
	WPL 786020
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL ARI166943A
1	W10085210 Whirlpool Label
1	WPW10085230 Whirlpool Label Assembly
2	WPW10310366 Whirlpool Hinge
3	Screw, 10-24 x 3/64
4	SCREW
5	Cover-Hinge, Stationary (LH)
5	(Following Parts Not Included)
5	Cover-Hinge, Stationary (RH)
6	WPW10139457 Whirlpool Door Seal
7	Handle, Ring & Pad Assembly (Gold)
7	Handle, Ring & Pad Assembly (Silver)
8	WP308685 Whirlpool Microwave Screw
9	Door Assembly (Outer) (White/Blue)
9	Door Assembly (Outer)
10	Door Assembly (Inner) (Includes Illus. 12 & 18)
11	WP355515 Whirlpool Screw
12	279570 Whirlpool Dryer Door Latch Kit
13	8519356 Whirlpool Retainer
14	W10822054 Whirlpool Retainer
15	8579662 Whirlpool Seal
16	Screw-Plug
17	WP8566254 Whirlpool Window Assembly
18	W10121607 Whirlpool Cushion
19	Tear-Drop Trim & Clip Assembly (White)
19	Tear-Drop Trim & Clip Assembly (White/Blue)
19	Tear-Drop Trim & Clip Assembly
20	Door Shield
21	Door-Intermediate
22	Door Mask
23	Door Screen
24	WP3373329 Whirlpool Dishwasher Screw
26	WPW10129065 Whirlpool Clip
