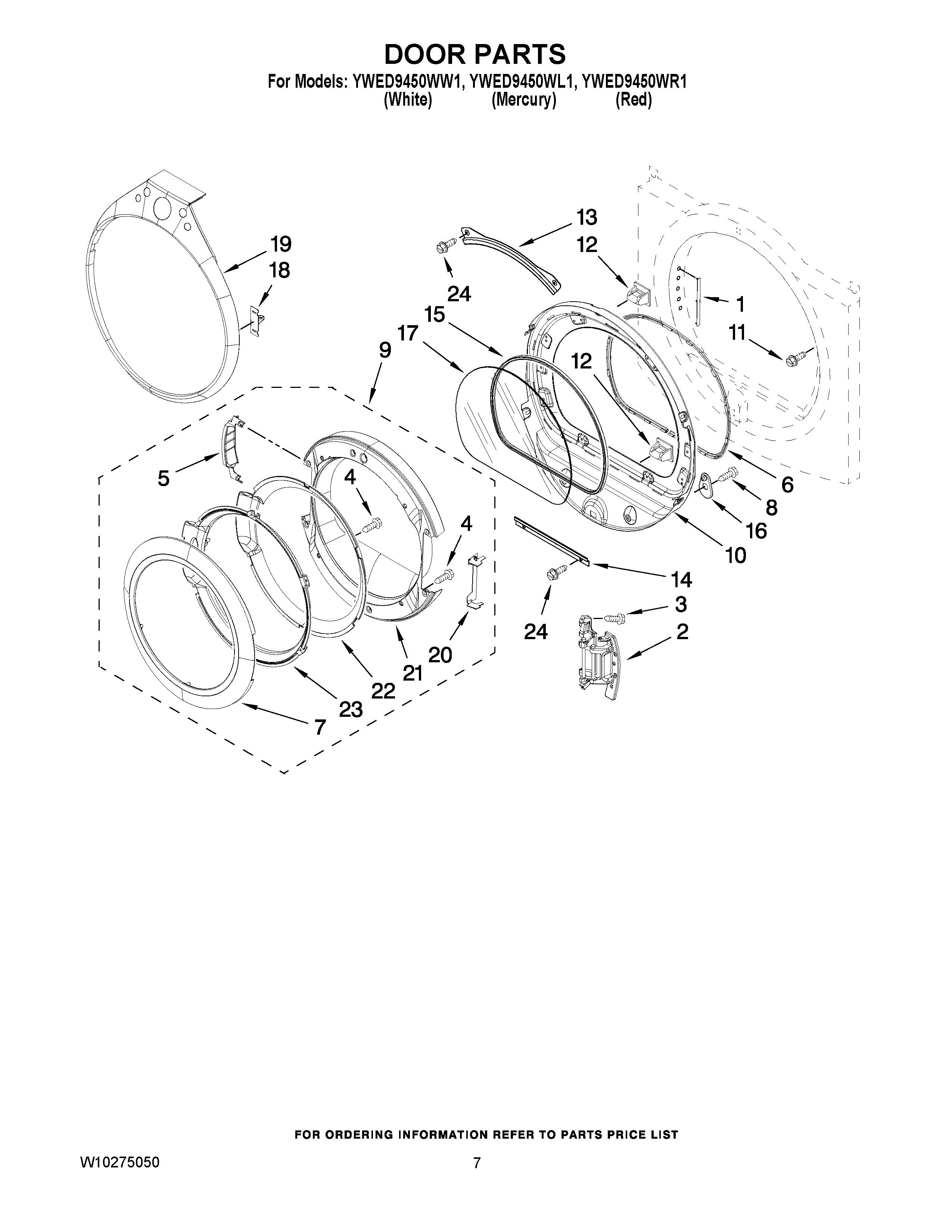

YWED9450WW1 04 – DOOR PARTS

Products

Position	Product
NI	COVER-HINGE (R.H.)
NI	(Following Parts Not Included)
1	W10085210 Whirlpool Label
2	WPW10310366 Whirlpool Hinge
3	WPW10159996 Whirlpool Screw
4	SCREW
5	Cover-Hinge, Stationary (LH)
6	SEAL-DOOR
7	HANDLE-RING
8	SCREW, 10-16 X 1/2
9	DOOR ASSEMBLY (OUTER)
10	DOOR ASSEMBLY (INNER) (INCLUDES ITEM: 12)
11	SCREW, 8-18 X 11/16
12	DOOR CATCH ASSEMBLY
13	RETAINER-WINDOW (UPPER)
14	RETAINER-WINDOW (LOWER)
15	GASKET, WINDOW
16	SCREW-PLUG
17	WINDOW
18	CLIP, METAL
19	TEAR-DROP TRIM & CLIP ASSEMBLY (RED)
19	TEAR-DROP TRIM & CLIP ASSEMBLY (MERCURY)
19	TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE)
20	DOOR-SHIELD
21	DOOR INTERMEDIATE
22	DOOR MASK
23	DOOR SCREEN
24	SCREW, 10-16 X 1/2
