YWED94HEXL2 04 – DOOR PARTS

YWED94HEXL2 04 – DOOR PARTS

Written by

in

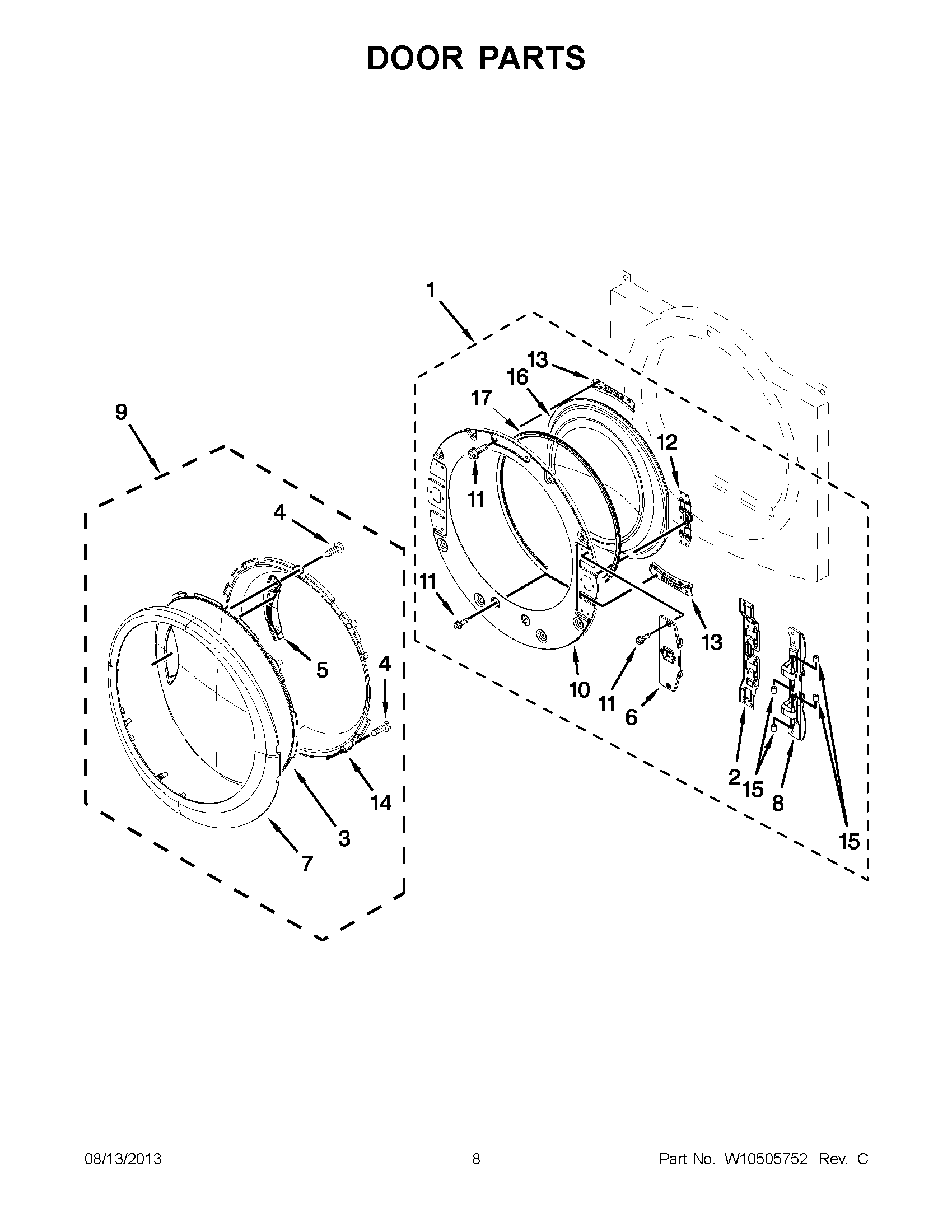

YWED94HEXL2 04 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, INNER DOOR
2	WPW10208419 Whirlpool Plate
3	SCREEN, DOOR
4	SCREW
5	W10208411 Whirlpool Handle
6	W10772469 Whirlpool Door Catch Cover
7	DOOR, TRIM RING
8	HINGE
9	ASSEMBLY, OUTER DOOR
10	DOOR, INNER
11	SCREW
12	WPW10208254 Whirlpool Catch
13	W10208252 Whirlpool Retainer
14	DOOR INTERMEDIATE
15	WPW10208398 Whirlpool Hinge Pin Cap
16	W11310036 Whirlpool Door Glass
17	W11126230 Whirlpool Seal
