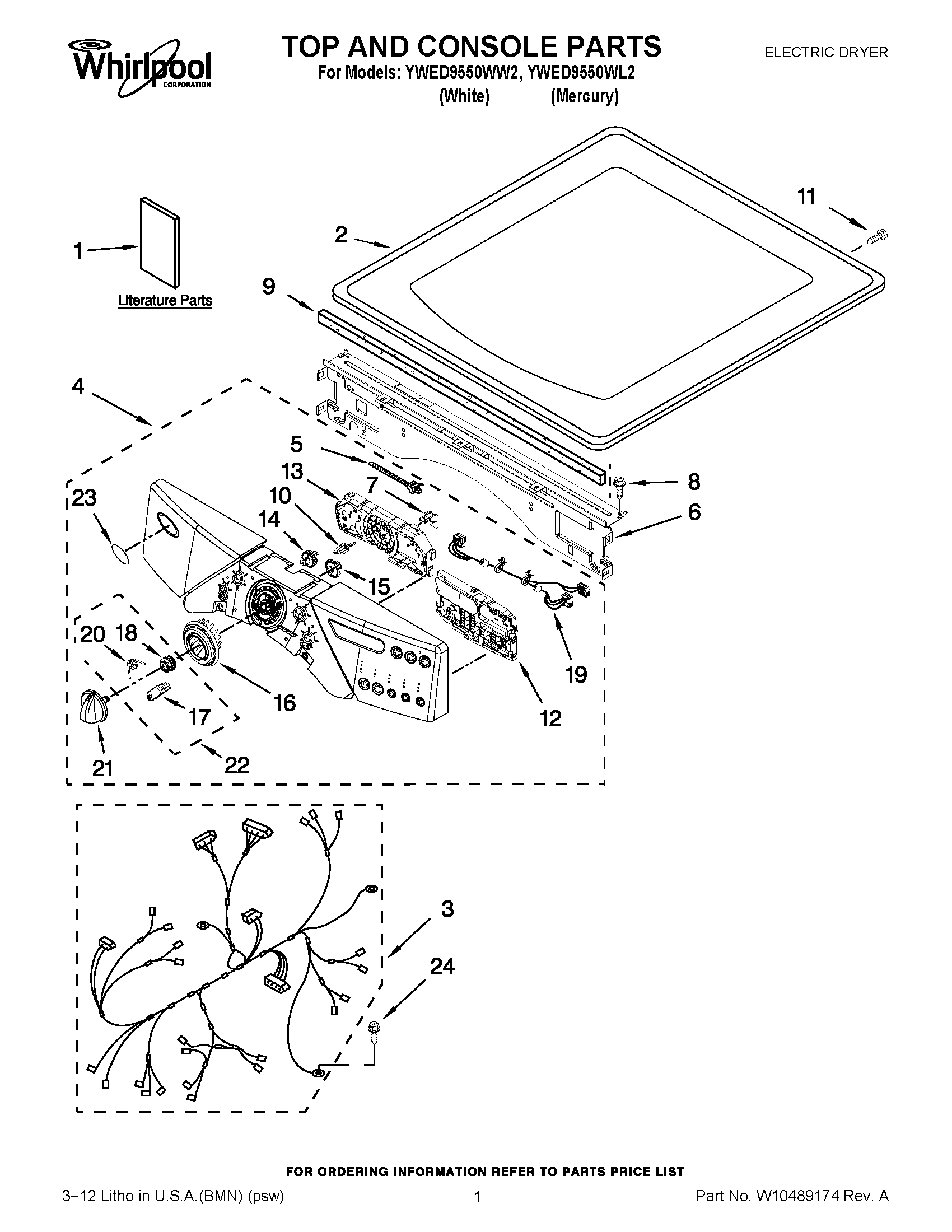

YWED9550WL2 01 – TOP AND CONSOLE PARTS

YWED9550WL2 01 – TOP AND CONSOLE PARTS

Written by

in

YWED9550WL2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2TOP (MERCURY)
2Top (White)
3HARNESS, MAIN
4PANEL, CONSOLE (INCLUDE ITEMS, (WHITE)
4PANEL, CONSOLE (INCLUDE ITEMS, (MERCURY)
5WP3391018 Whirlpool Wire Tie
6BRACKET, CONSOLE (INCLUDE, ITEM. 12)
7W10112268 Whirlpool Clip
9W10112267 Whirlpool Seal Assembly
10W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
11WP488729 Whirlpool Refrigerator Door Screw
12USER INTERFACE (RIGHT)
13USER-INTERFACE CENTER (INCLUDE, ITEM. 11 )
14Encoder-Wheel
15Retainer-Snap
16W10250089 Whirlpool Ring
17Rast, Wheel Assy. (Service Only With Item. 28)
18DETENT WHEEL (SERVICE ONLY WITH ITEM. 19 )
19W10242906 Whirlpool Wire Harness
20Knob, Spring (Service Only With Item 28)
21W10190685 Whirlpool Knob Assembly
23Medallion
24WP693995 Whirlpool Screw
