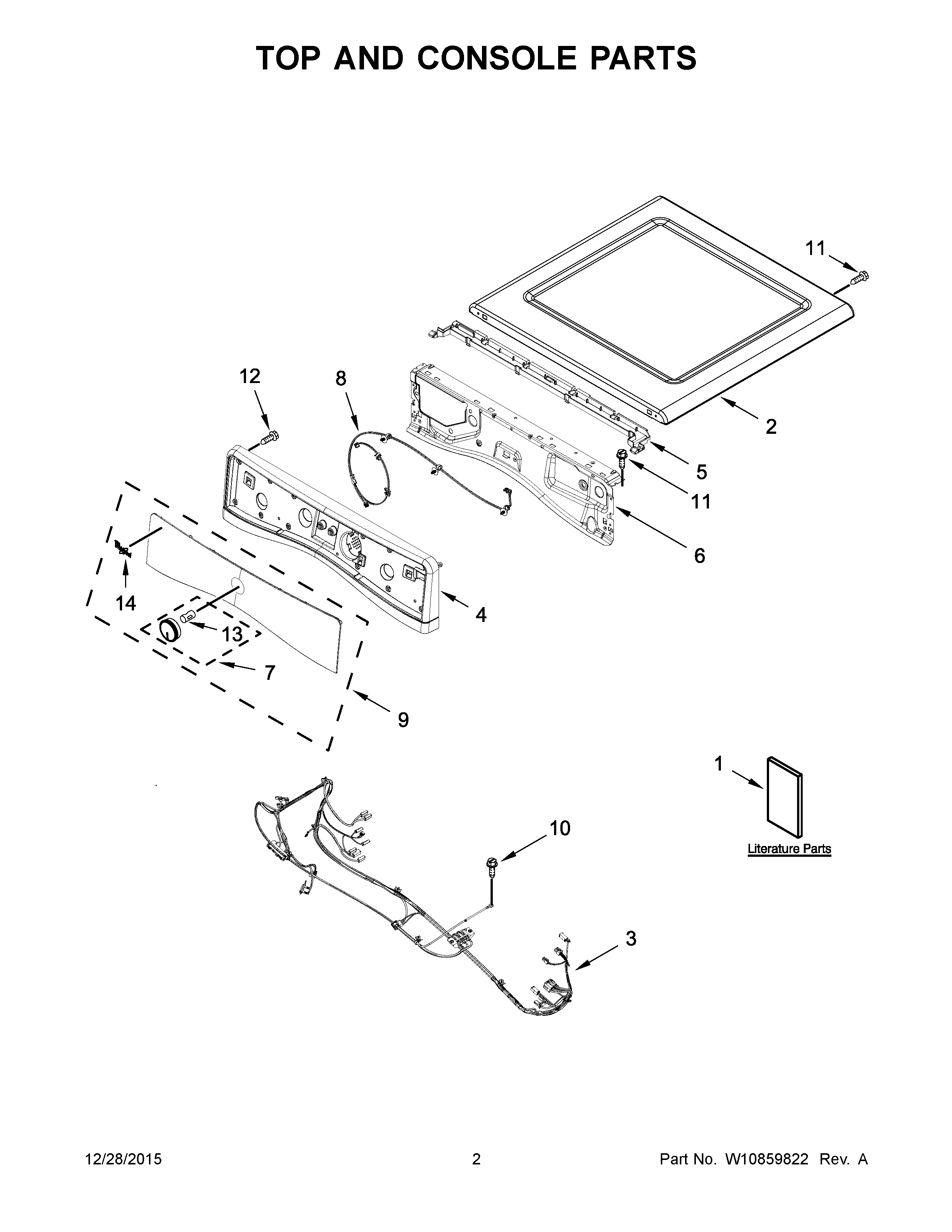

YWED95HEDC1 02 – TOP AND CONSOLE PARTS

YWED95HEDC1 02 – TOP AND CONSOLE PARTS

Written by

in

YWED95HEDC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1CTECH SHEET
1AUSE AND CARE GUIDE
1DQUICK START GUIDE
1INSTALLATION INSTRUCTIONS
1EENERGY GUIDE
2WPW10208383 Whirlpool Top Panel
2BWPW10316282 Whirlpool Top Assembly
2AWPW10460919 Whirlpool Top
3HARNESS, MAIN
4BPANEL, CONSOLE ASSEMBLY (SILVER)
4AWPW10463687 Whirlpool Console Assembly
4WPW10446407 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10875909 Whirlpool Timer Knob
7BW10631128 Whirlpool Knob Assembly
7AWPW10631127 Whirlpool Knob
8W10837344 Whirlpool Wire Harness
9BW10800230 Whirlpool Control Panel
9AW10800229 Whirlpool Control Panel
9W10800228 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WP8536939 Whirlpool Spring Clip
14BADGE (WHITE)
14AW10510982 Whirlpool Nameplate
