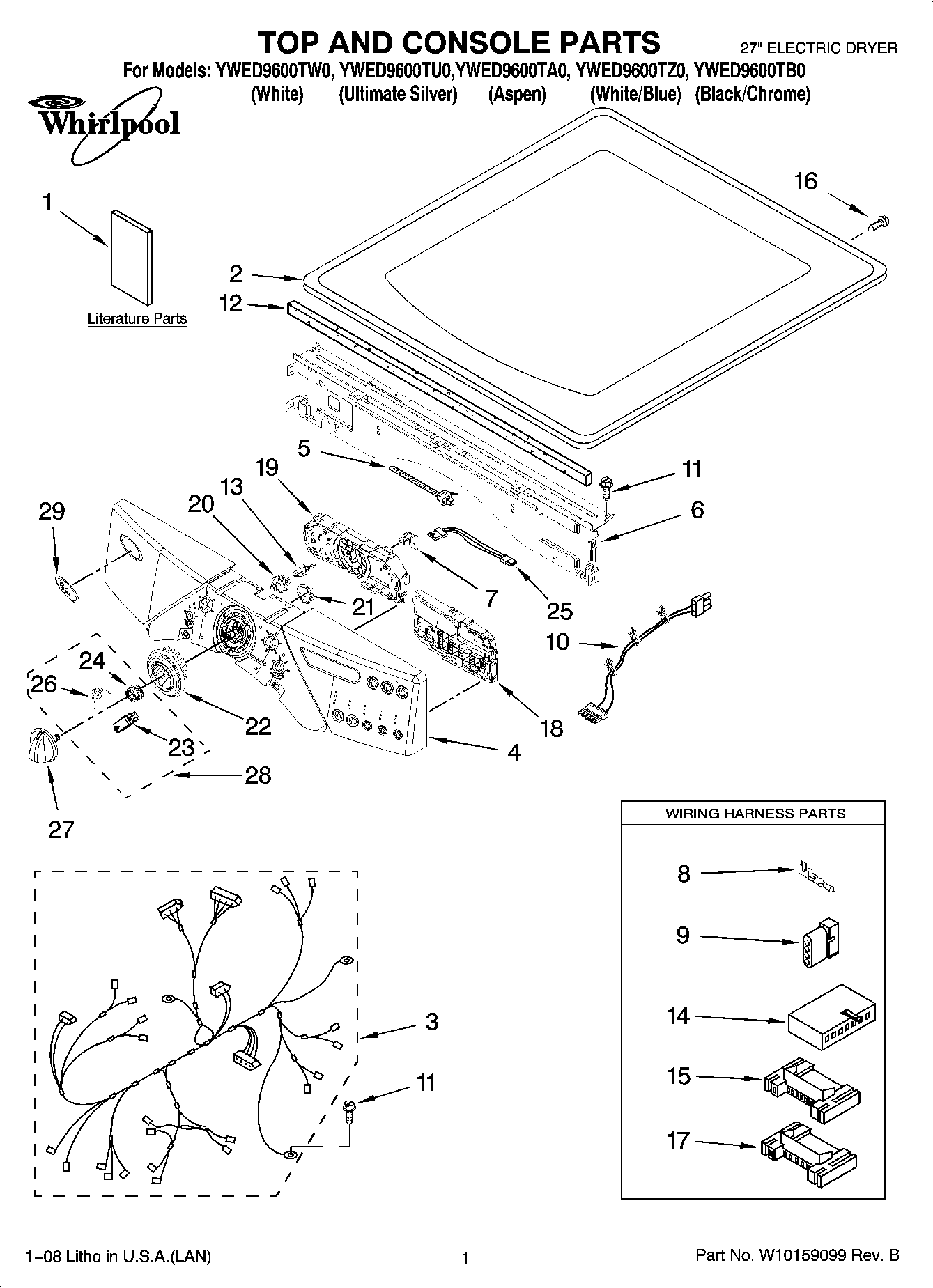

YWED9600TB0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Sheet, Tip Steam Dry
1Tech Sheet
1Use & Care Guide
1Installation, Diagnostic Guide
1Guide, Quick Start
2Top (Ultimate Silver)
2Top (Black/Chrome)
2Top (White)
2Top (Aspen)
3Harness, Main
4Panel, Console (Includes Illus: 20,21,22,27,28 & 29) (Aspen)
4Panel, Console (Includes Illus: 20,21,22,27,28 & 29) (Ultimate Silver)
4Panel, Console (Includes Illus: 20,21,22,27,28 & 29) (Black/Chrome)
4Panel, Console (Includes Illus: 20,21,22,27,28 & 29) (White)
4Panel, Console (Includes Illus: 20,21,22,27,28 & 29) (White/Blue)
5WP3391018 Whirlpool Wire Tie
6Bracket, Console (Includes No.12)
7W10112268 Whirlpool Clip
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WPL W10110976
11WP488729 Whirlpool Refrigerator Door Screw
12W10112267 Whirlpool Seal Assembly
13W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
143936150 Whirlpool Connector
153395683 Whirlpool Connector
16Screw, 8-18 x 1/2
172203186 Whirlpool Connector
18User Interface (Right)
19W10110658 Whirlpool Electronic Control Board
21Retainer-Snap
22KNOB, LIGHT RING (INCLUDES: ITEM 21)
23Rast, Wheel Assy. (Service Only With Item. 28)
24Detent Wheel (Service Only With Illus. 28)
25Harness, Communication
26Knob, Spring (Service Only With Item 28)
27Knob, Control (Includes: Item. 21) (White)
27Knob, Control (Includes: Item. 21) (Ultimate Silver)
27Knob,
27Knob, Control (Black/Chrome (Includes: Item. 21))
27WPL W10116706
28Encoder-Wheel
29Medallion
