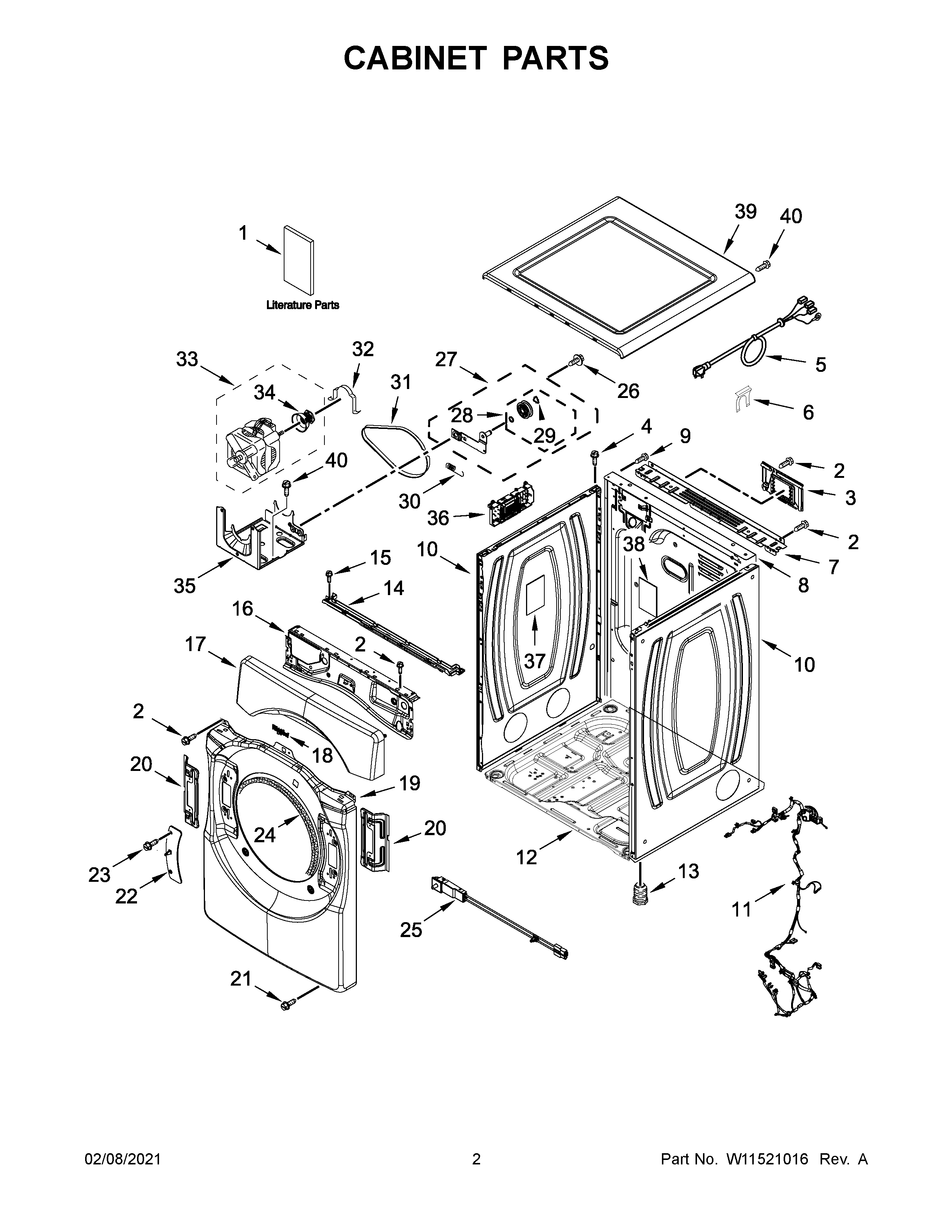

YWED9620HC2 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1A	TECH SHEET
1B	WIRING DIAGRAM
1C	QUICK START GUIDE
1	OWNERS MANUAL
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11662367 Whirlpool Dryer Cover
4	WP489463 Whirlpool Refrigerator Screw
5	W11710615 Whirlpool Cord-Power
6	W11712577 Whirlpool Clip
7	WPW10208382 Whirlpool Dryer Bracket
8	W10487430 Whirlpool Rear Panel
9	W10850756 Whirlpool Screw
10A	W11315726 Whirlpool Panel Assembly
10	W11233548 Whirlpool Panel
11	HARNESS, WIRING (MAIN)
12	W11215531 Whirlpool Base
14	W11310027 Whirlpool Bracket
15	W11686675 Whirlpool Screw
16	W11480682 Whirlpool Bracket
17	W11310042 Whirlpool Console
17A	W11315728 Whirlpool Console
18	W11223753 Whirlpool Refrigerator Nameplate
19A	W11512556 Whirlpool Panel
19	PANEL
20	W11310030 Whirlpool Bracket Assembly
21	WP308685 Whirlpool Microwave Screw
22	W11310031 Whirlpool Strike Assembly
23	SCREW
24	WP3387242 Whirlpool Seal
25	W11551763 Whirlpool Door Switch
26	WP3389420 Whirlpool Screw
27	W10837240 Whirlpool Dryer Idler Pulley
28	279640 Whirlpool Dryer Idler Pulley Kit
29	WPW10121334 Whirlpool Washer
30	WPW10446781 Whirlpool Spring
31	661570V Whirlpool Dryer Drum Belt
32	CLAMP
33	MOTOR-DRVE
34	WP8066184 Whirlpool Dryer Motor Pulley
35	W11481730 Whirlpool Bracket
37	W11409002 Whirlpool Pad
39A	WPW10460919 Whirlpool Top
39	WPW10208383 Whirlpool Top Panel
40	SCREW
