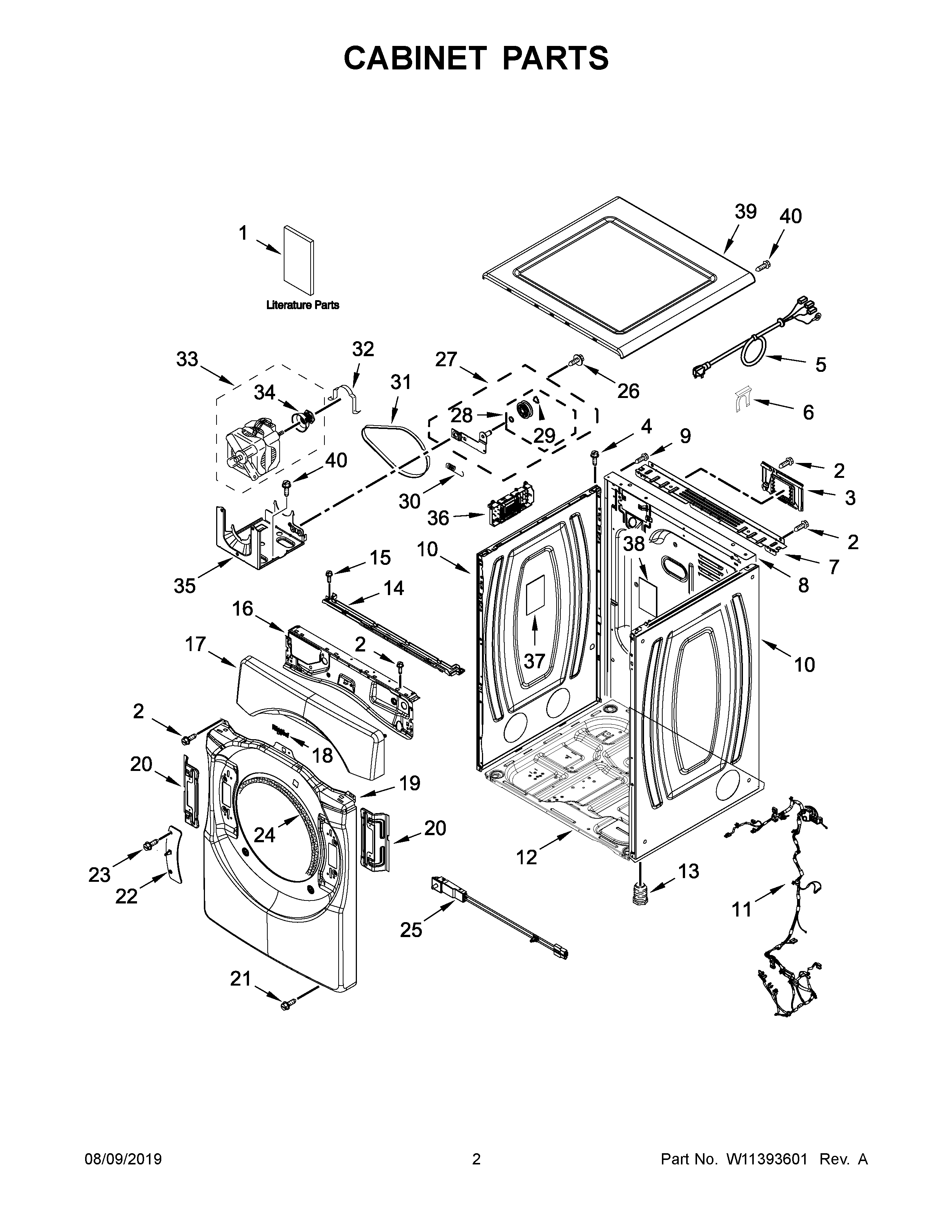

YWED9620HW1 02 – CABINET PARTS

YWED9620HW1 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1BTECH SHEET
1CWIRING DIAGRAM
1DQUICK START GUIDE
1USE AND CARE GUIDE
1EENERGY GUIDE
1AINSTALLATION INSTRUCTIONS
2WP488729 Whirlpool Refrigerator Door Screw
3WPW10316167 Whirlpool Dishwasher Terminal Cover
4WP489463 Whirlpool Refrigerator Screw
5W11710615 Whirlpool Cord-Power
6W11712577 Whirlpool Clip
7WPW10208382 Whirlpool Dryer Bracket
8W10487430 Whirlpool Rear Panel
9W10850756 Whirlpool Screw
10AW11315726 Whirlpool Panel Assembly
10W11233548 Whirlpool Panel
11HARNESS, WIRING (MAIN)
12W11215531 Whirlpool Base
14W11310027 Whirlpool Bracket
15W11686675 Whirlpool Screw
16W11480682 Whirlpool Bracket
17AW11315728 Whirlpool Console
17W11310042 Whirlpool Console
18W11223753 Whirlpool Refrigerator Nameplate
19W11310029 Whirlpool Panel
19APANEL
20W11310030 Whirlpool Bracket Assembly
21WP308685 Whirlpool Microwave Screw
22W11310031 Whirlpool Strike Assembly
23SCREW
24WP3387242 Whirlpool Seal
25W11427601 Whirlpool Door Switch
26WP3389420 Whirlpool Screw
27W10837240 Whirlpool Dryer Idler Pulley
28279640 Whirlpool Dryer Idler Pulley Kit
29WPW10121334 Whirlpool Washer
30WPW10446781 Whirlpool Spring
31661570V Whirlpool Dryer Drum Belt
32CLAMP
33MOTOR-DRVE
34WP8066184 Whirlpool Dryer Motor Pulley
35W11481730 Whirlpool Bracket
36W11419209-includeCORE Whirlpool W11419209 Washer Electronic Control Board + Core
37W11409002 Whirlpool Pad
39WPW10208383 Whirlpool Top Panel
39AWPW10460919 Whirlpool Top
40SCREW
