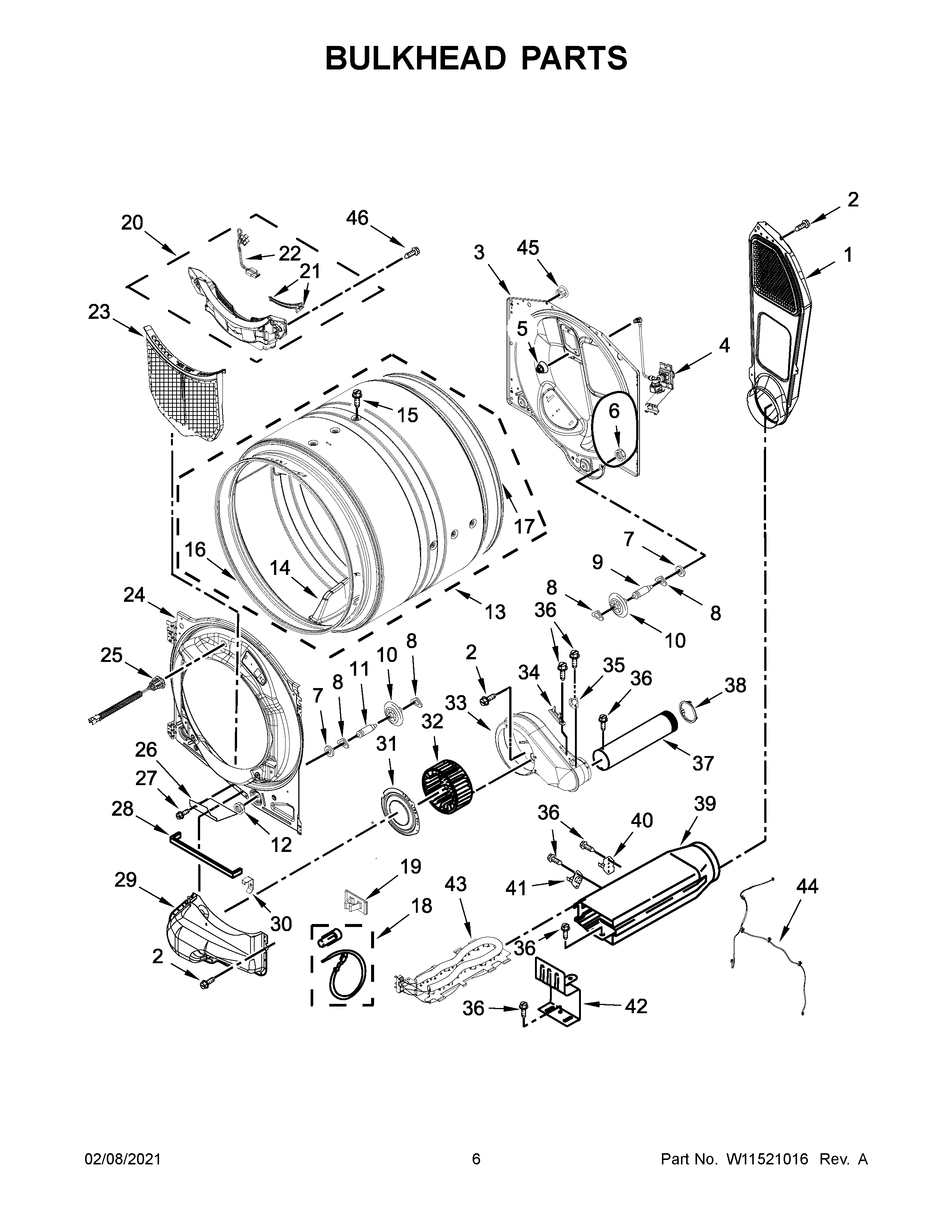

YWED9620HW2 04 – BULKHEAD PARTS

YWED9620HW2 04 – BULKHEAD PARTS

Written by

in

YWED9620HW2 04 – BULKHEAD PARTS

Products

PositionProduct
1W11677720 Whirlpool Air Duct
2WP488729 Whirlpool Refrigerator Door Screw
3W11299321 Whirlpool Bulkhead
4W11216837 Whirlpool Valve
5W11230609 Whirlpool Nozzle
6WPW10080190 Whirlpool Nut
7W11236646 Whirlpool Washer Assembly
8WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
9SHAFT
10WPW10314173 Whirlpool Dryer Drum Support Wheel
11SHAFT
12WPW10080210 Whirlpool Nut
13W10541657 Whirlpool Drum Assembly
14W10280771 Whirlpool Drum Baffle
15W10853898 Whirlpool Screw
16W11193479 Whirlpool Seal
17280114 Whirlpool Dryer Drum Seal
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
19W11501419 Whirlpool Refrigerator Clip
20HOUSNG-DRYER LINT
21WP3387223 Whirlpool Electrode Assembly
22WPW10298258 Whirlpool Wire Harness
23SCREEN – LINT. ALPHA W/FELT
24W10673491 Whirlpool Bulkhead Assembly
25W11310048 Whirlpool Light
26W11257251 Whirlpool Shield
27WP489463 Whirlpool Refrigerator Screw
28W11676493 Whirlpool Seal Assembly
29WPW10211896 Whirlpool Duct Lint
30W10414388 Whirlpool Clip
31W11688571 Whirlpool Collar
32WP697772 Whirlpool Dryer Blower Wheel
33WPW10211911 Whirlpool Housing
34FUSE-THRML
35WP8557403 Whirlpool Thermostat
36WP693995 Whirlpool Screw
37WPW10342188 Whirlpool Exhaust Pipe
38WPW10344699 Whirlpool Collar
39W10802681 Whirlpool Box Assembly
40280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
41WP8577274 Whirlpool Dryer Thermistor
428066099 Whirlpool Bracket
43WP3387747 Whirlpool Dryer Heating Element
44W11310028 Whirlpool Wire Harness
458529007 Whirlpool Plug
46WP3387230 Whirlpool Screw
