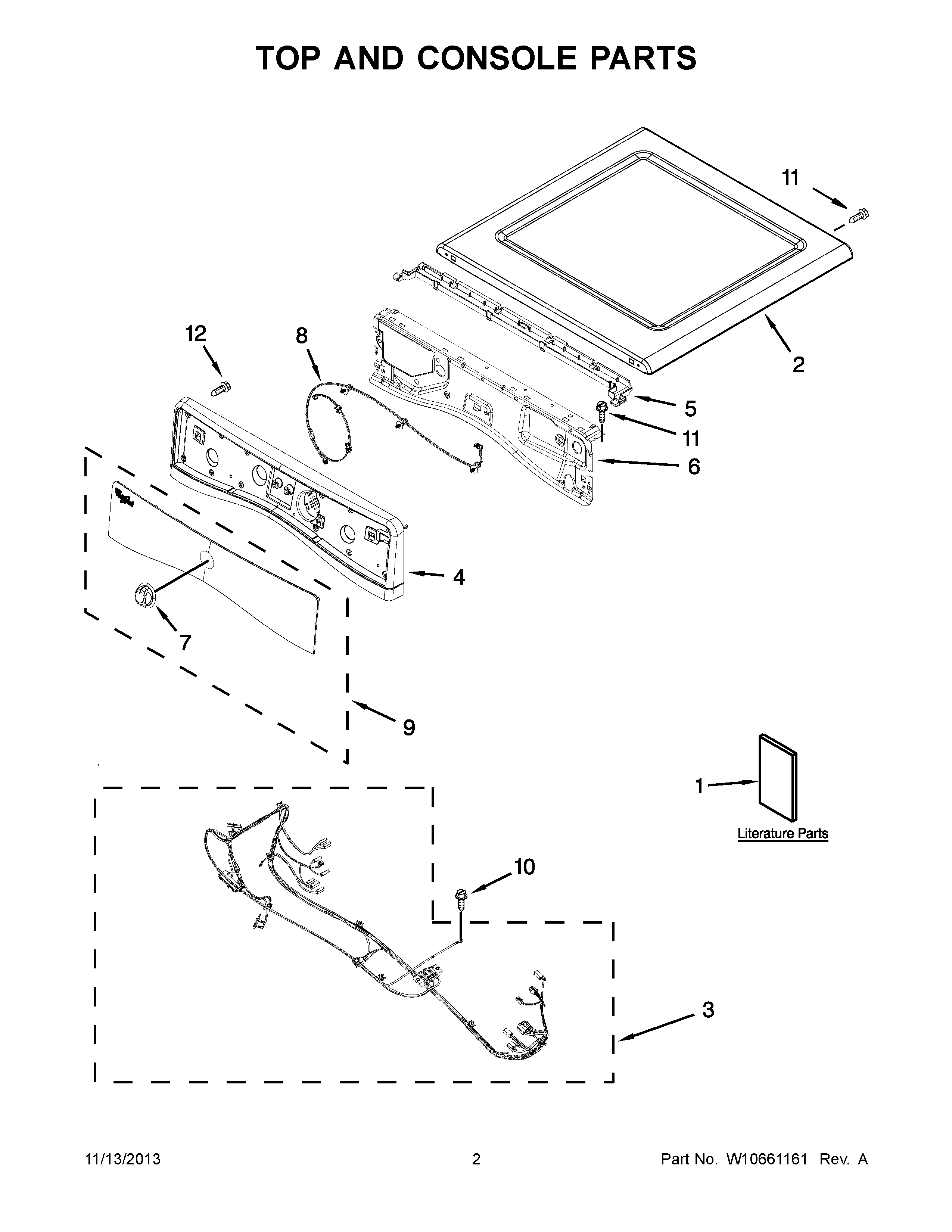

YWED96HEAU1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1WIRING DIAGRAM
1OWNERS MANUAL
1TECH SHEET
2WPW10460919 Whirlpool Top
2WPW10208383 Whirlpool Top Panel
2WPW10316282 Whirlpool Top Assembly
3HARNESS, MAIN
4WPW10463687 Whirlpool Console Assembly
4PANEL, CONSOLE ASSEMBLY (SILVER)
4WPW10446407 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7KNOB ASSEMBLY
8W10837344 Whirlpool Wire Harness
9WPW10446445 Whirlpool Control Panel
9WPW10446446 Whirlpool Control Panel
9W10446448 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
