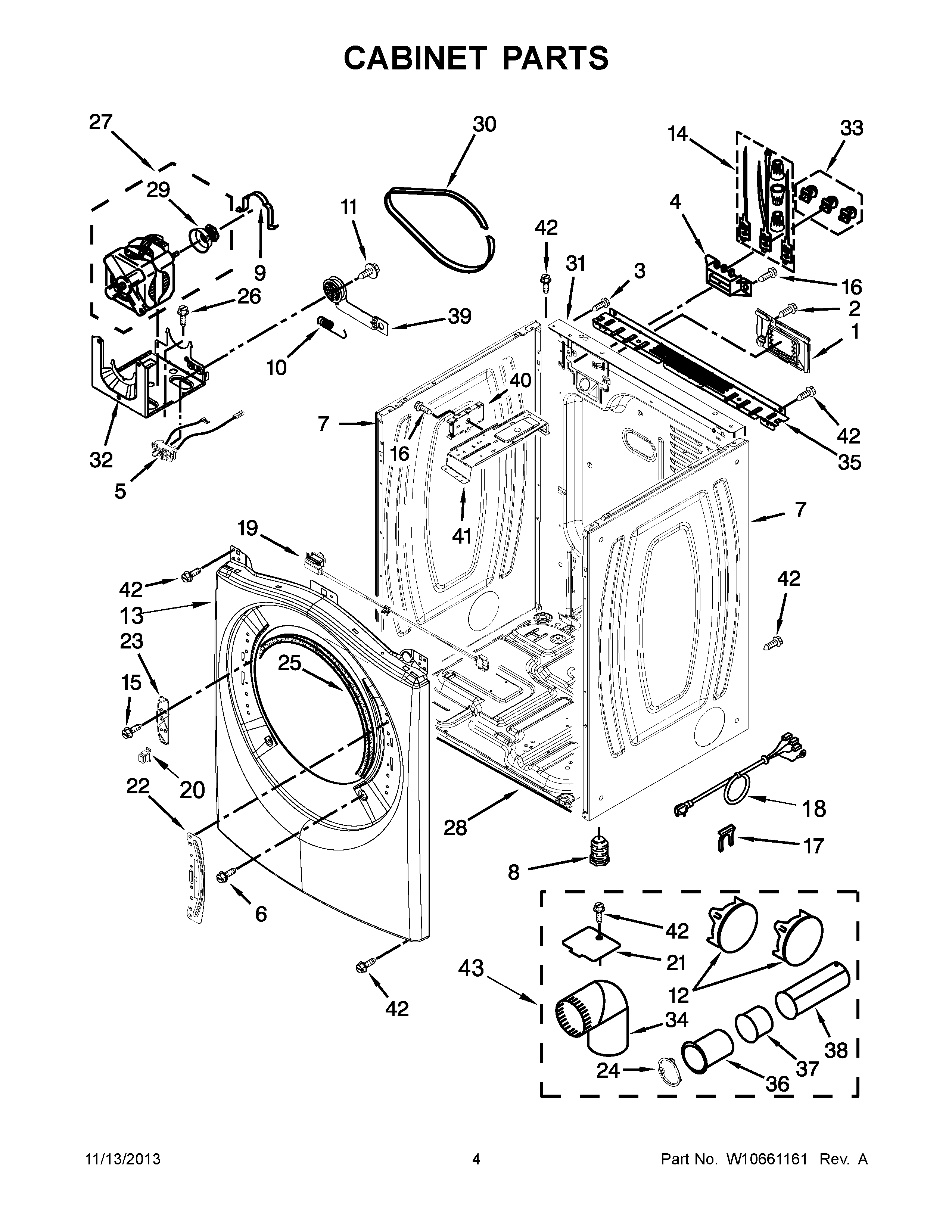

YWED96HEAW1 03 – CABINET PARTS

YWED96HEAW1 03 – CABINET PARTS

Written by

in

YWED96HEAW1 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WPW10316167 Whirlpool Dishwasher Terminal Cover
2WP3390631 Whirlpool Screw
3W10850756 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5W10847984 Whirlpool Switch
6WP308685 Whirlpool Microwave Screw
7W11315726 Whirlpool Panel Assembly
7WPW10468499 Whirlpool Panel
7W11233548 Whirlpool Panel
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13WPW10363953 Whirlpool Dishwasher Panel
13WPW10463309 Whirlpool Dishwasher Panel
13WPW10460923 Whirlpool Panel
14279318 Whirlpool Terminal
15SCREW
16WP90767 Whirlpool Screw
17W11712577 Whirlpool Clip
18CORD-POWER
19WPW10350906 Whirlpool Door Switch
20W11240283 Whirlpool Catch Assembly
21WPW10354249 Whirlpool Cover
22BRACKET, DOOR HINGE
23WPW10208250 Whirlpool Strike
24WPW10344699 Whirlpool Collar
25WP3387242 Whirlpool Seal
26SCREW
27279787 Whirlpool Dryer Drive Motor
28W11215531 Whirlpool Base
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10487430 Whirlpool Rear Panel
32W11481730 Whirlpool Bracket
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35WPW10208382 Whirlpool Dryer Bracket
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40WPW10495880 Whirlpool Electronic Control Board + Core
41BRACKET, CONTROL
42WP488729 Whirlpool Refrigerator Door Screw
43W10323246 Whirlpool Dryer Vent Kit 4-Way
