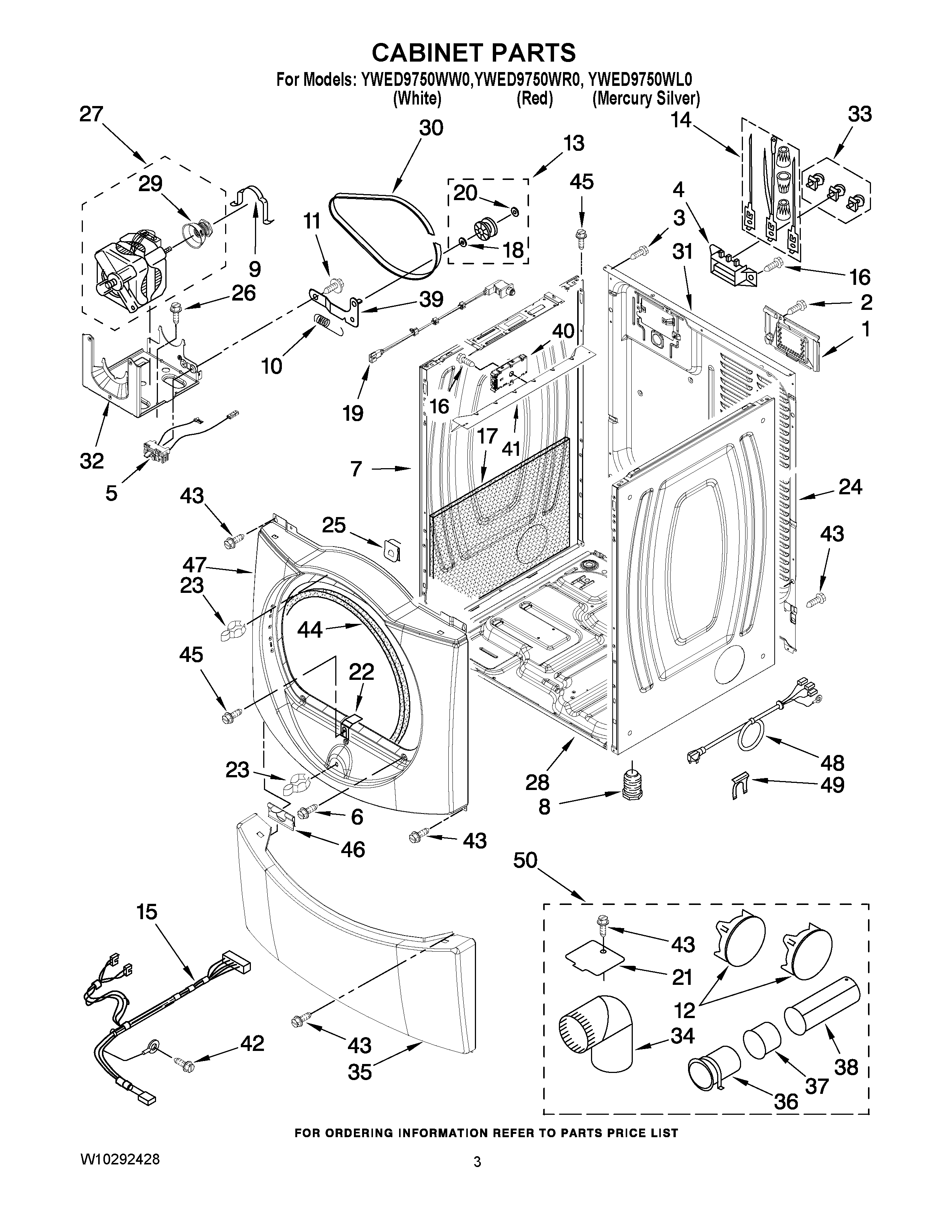

YWED9750WL0 02 – CABINET PARTS

YWED9750WL0 02 – CABINET PARTS

Written by

in

YWED9750WL0 02 – CABINET PARTS

Products

PositionProduct
1WPW10119283 Whirlpool Terminal Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5WPW10411937 Whirlpool Switch
6WP308685 Whirlpool Microwave Screw
7PANEL, SIDE (L.H.) (SILVER)
7W11233548 Whirlpool Panel
7PANEL, SIDE (L.H.) (RED)
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14279318 Whirlpool Terminal
15W10242904 Whirlpool Wire Harness
17W10123956 Whirlpool Sound Absorber
18WPW10121334 Whirlpool Washer
19W10128087 Whirlpool Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
22Ramp, Door
23279570 Whirlpool Dryer Door Latch Kit
24PANEL, SIDE (R.H.) (RED)
24WPW10249725 Whirlpool Panel
25Clip, Mounting (2)
26SCREW
27279787 Whirlpool Dryer Drive Motor
28BASE, CABINET
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10487430 Whirlpool Rear Panel
32W11481730 Whirlpool Bracket
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35PANEL, TOE (RED)
35TOE PANEL (MERCURY)
35TOE-PANEL (WHITE)
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40CONTROL BOARD
41WP8563727 Whirlpool Bracket
42WP693995 Whirlpool Screw
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
46W11295573 Whirlpool Clip
47FRONT PANEL (INCLUDE, ITEM. 7) (MERCURY)
47WPL W10180423
47FRONT PANEL (RED)
48CORD-POWER
49W11712577 Whirlpool Clip
50W10470674 Whirlpool Dryer Side Vent Exhaust Kit
