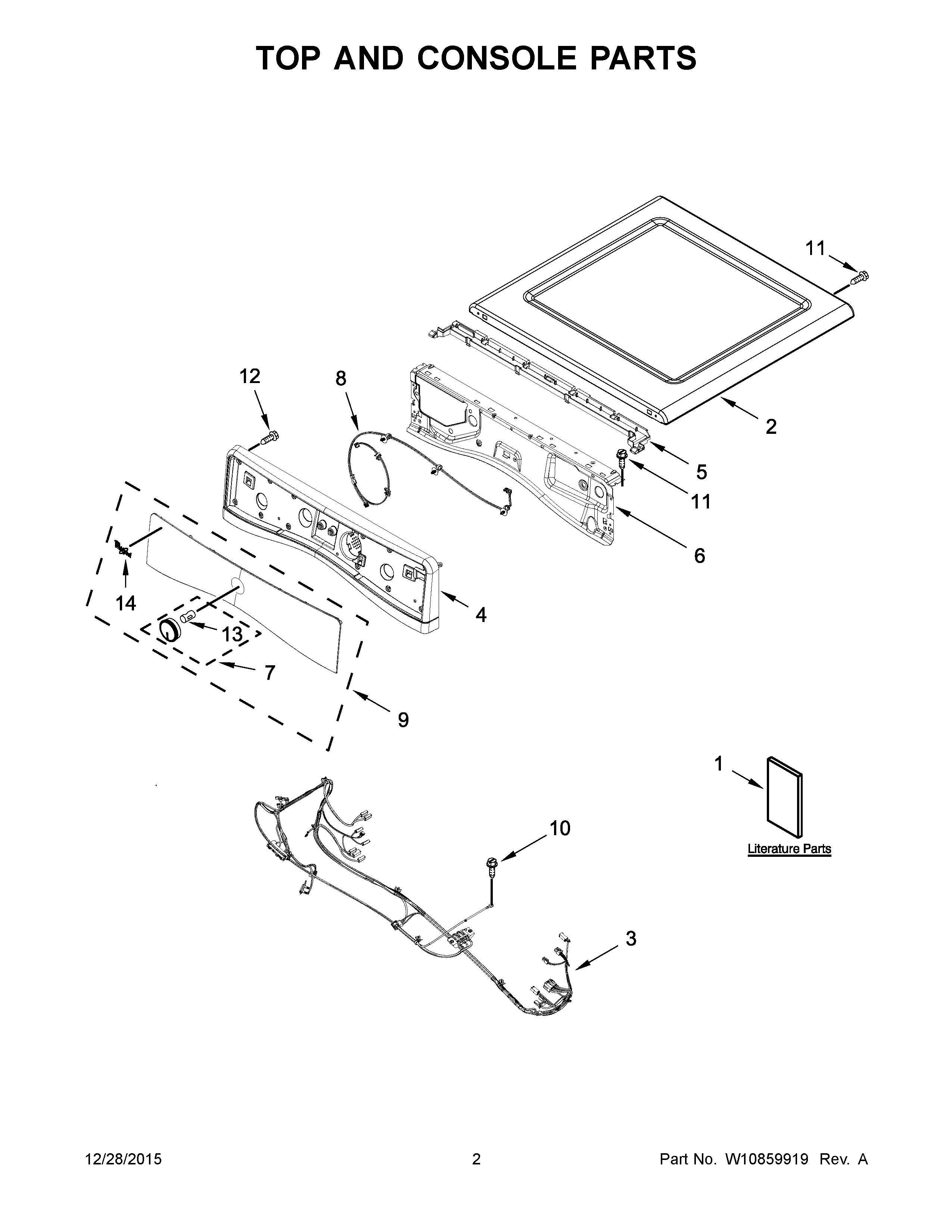

YWED97HEDBD1 02 – TOP AND CONSOLE PARTS

YWED97HEDBD1 02 – TOP AND CONSOLE PARTS

Written by

in

YWED97HEDBD1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1EENERGY GUIDE
1INSTALLATION INSTRUCTIONS
1DQUICK START GUIDE
1AUSE AND CARE GUIDE
1CTECH SHEET
2CW10628221 Whirlpool Top
2WPW10208383 Whirlpool Top Panel
2BWPW10316282 Whirlpool Top Assembly
2AWPW10460919 Whirlpool Top
3HARNESS, MAIN
4CW10433196 Whirlpool Console
4BPANEL, CONSOLE ASSEMBLY (SILVER)
4AWPW10463687 Whirlpool Console Assembly
4WPW10446407 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7AWPW10631127 Whirlpool Knob
7BW10631128 Whirlpool Knob Assembly
7W10875909 Whirlpool Timer Knob
8W10837344 Whirlpool Wire Harness
9CIML ASSEMBLY (BLACK)
9IML ASSEMBLY (WHITE)
9AIML ASSEMBLY (CHROME SHADOW)
9BIML ASSEMBLY (STAINLESS)
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WP8536939 Whirlpool Spring Clip
14BADGE (WHITE)
14AW10510982 Whirlpool Nameplate
