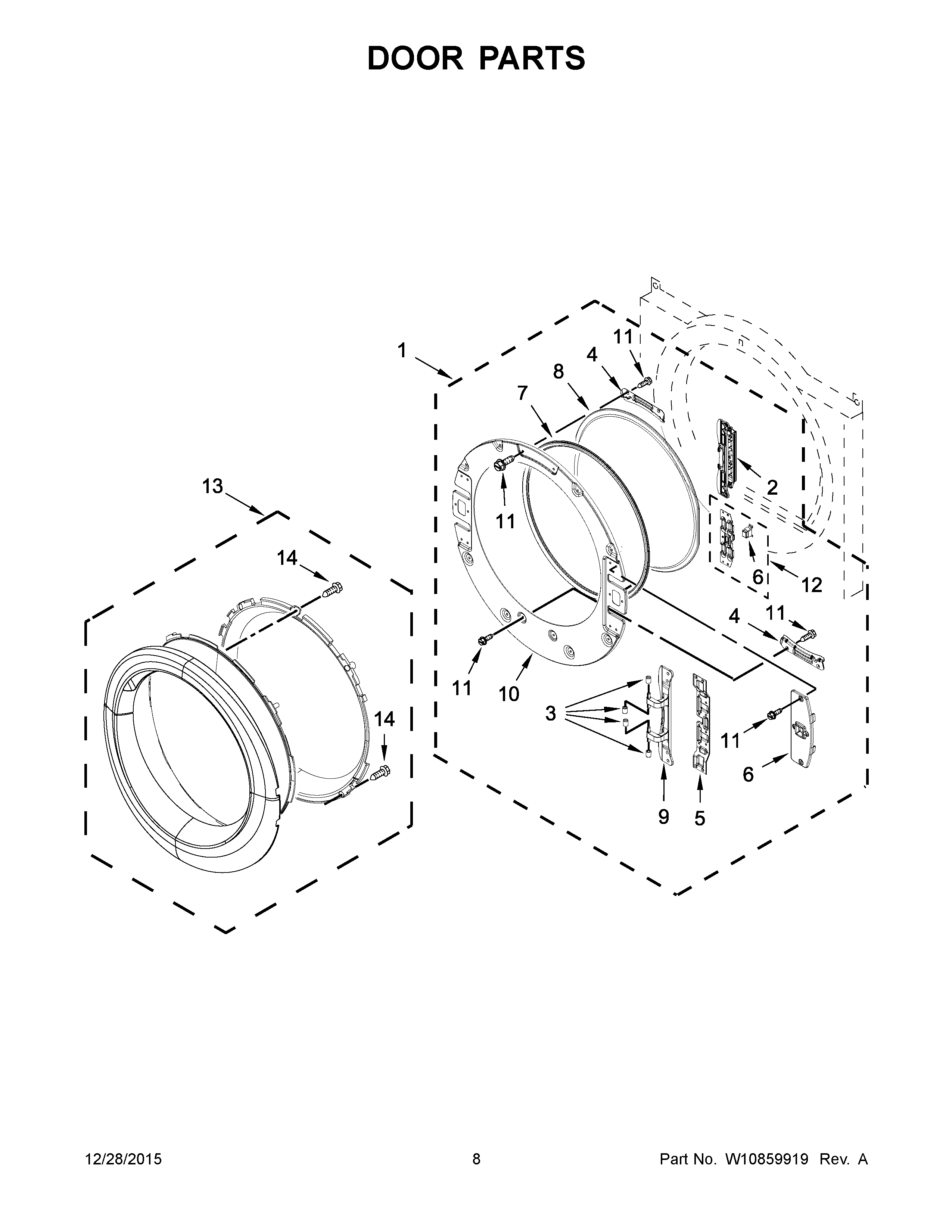

YWED97HEDBD1 05 – DOOR PARTS

Products

PositionProduct
1ASSEMBLY, INNER DOOR (CHROME SHADOW)
2HINGE
3WPW10208398 Whirlpool Hinge Pin Cap
4W10208252 Whirlpool Retainer
5WPW10208419 Whirlpool Plate
6W11240283 Whirlpool Catch Assembly
7W11126230 Whirlpool Seal
8W10823368 Whirlpool Window Assembly
9HINGE
10DOOR, INNER
11SCREW
12WPW10208254 Whirlpool Catch
13ASSEMBLY, OUTER DOOR
14SCREW
