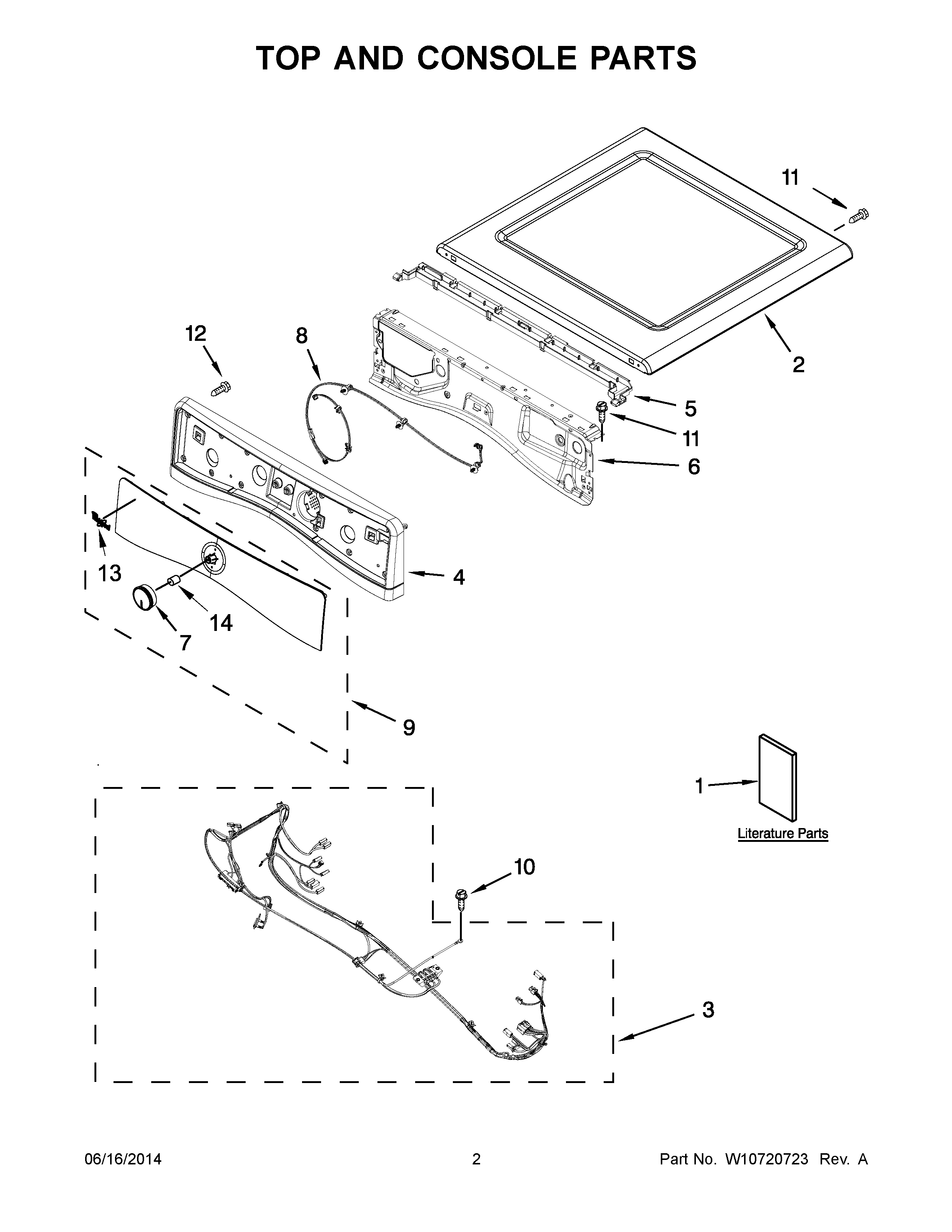

YWED97HEDC0 02 – TOP AND CONSOLE PARTS

YWED97HEDC0 02 – TOP AND CONSOLE PARTS

Written by

in

YWED97HEDC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1WIRING DIAGRAM
1QUICK START GUIDE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2WPW10460919 Whirlpool Top
2WPW10316282 Whirlpool Top Assembly
2W10628221 Whirlpool Top
2WPW10208383 Whirlpool Top Panel
3HARNESS, MAIN
4PANEL, CONSOLE ASSEMBLY (SILVER)
4W10433196 Whirlpool Console
4WPW10463687 Whirlpool Console Assembly
4WPW10446407 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10875909 Whirlpool Timer Knob
7W10631128 Whirlpool Knob Assembly
7WPW10631127 Whirlpool Knob
8W10837344 Whirlpool Wire Harness
9W10750362 Whirlpool Control Panel
9W10750361 Whirlpool Control Panel
9W10750360 Whirlpool Control Panel
9W10750359 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WPW10393264 Whirlpool Refrigerator Nameplate
13W11178521 Whirlpool Dishwasher Nameplate
14WP8536939 Whirlpool Spring Clip
