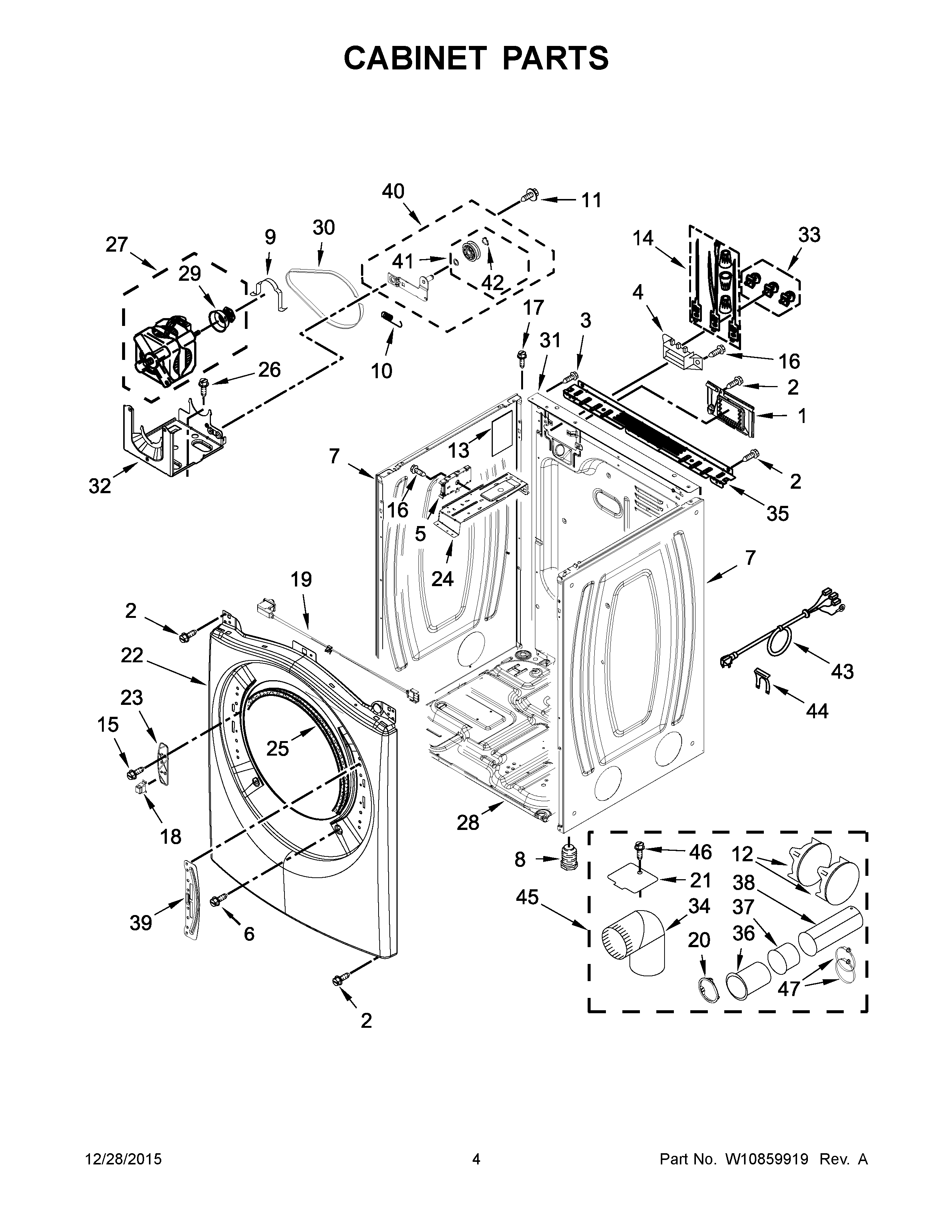

YWED97HEDU1 03 – CABINET PARTS

YWED97HEDU1 03 – CABINET PARTS

Written by

in

YWED97HEDU1 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WPW10316167 Whirlpool Dishwasher Terminal Cover
2WP488729 Whirlpool Refrigerator Door Screw
3W10850756 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5W10849080 Whirlpool Electronic Control Board + Core
6WP308685 Whirlpool Microwave Screw
7W11233548 Whirlpool Panel
7AW11315726 Whirlpool Panel Assembly
7CW10628249 Whirlpool Panel Assembly
7BWPW10468499 Whirlpool Panel
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13W11409002 Whirlpool Pad
14279318 Whirlpool Terminal
15SCREW
16WP489463 Whirlpool Refrigerator Screw
18W11240283 Whirlpool Catch Assembly
19WPW10350906 Whirlpool Door Switch
20WPW10344699 Whirlpool Collar
21WPW10354249 Whirlpool Cover
22WPW10363953 Whirlpool Dishwasher Panel
22AWPW10463309 Whirlpool Dishwasher Panel
22CW10433063 Whirlpool Panel
22BWPW10460923 Whirlpool Panel
23WPW10208250 Whirlpool Strike
24BRACKET, CONTROL
25WP3387242 Whirlpool Seal
26SCREW
27MOTOR-DRVE
28W11215531 Whirlpool Base
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10487430 Whirlpool Rear Panel
32W11481730 Whirlpool Bracket
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35WPW10208382 Whirlpool Dryer Bracket
36PIPE, EXHAUST (MEDIUM)
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39BRACKET, DOOR HINGE
40W10837240 Whirlpool Dryer Idler Pulley
41279640 Whirlpool Dryer Idler Pulley Kit
42WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
43W11710615 Whirlpool Cord-Power
44W11712577 Whirlpool Clip
45W10704365 Whirlpool Dryer Exhaust Kit
47WP696392 Whirlpool Hose Clamp
