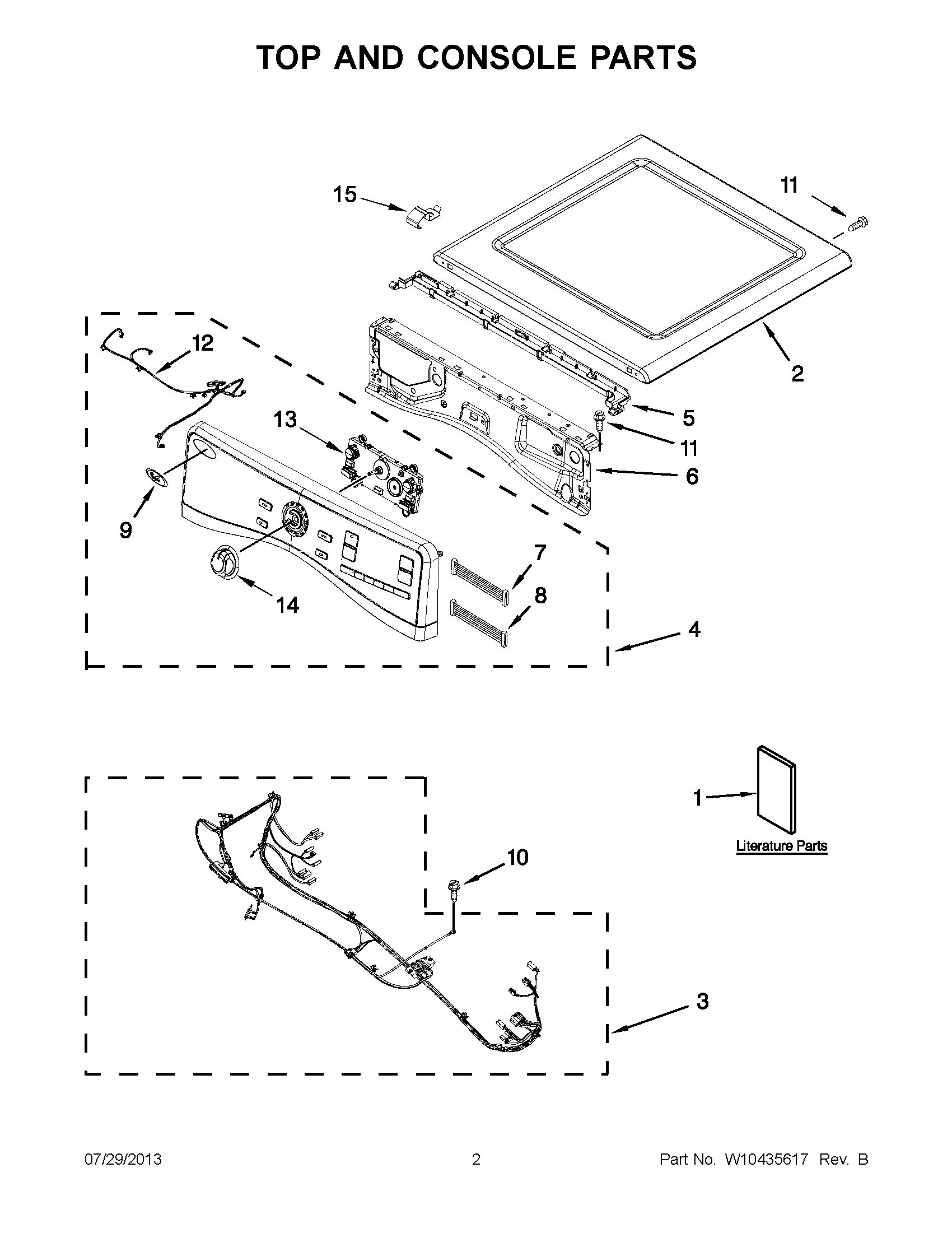

YWED97HEXR1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS
1	WIRING DIAGRAM
1	TECH SHEET
2	TOP (RED)
2	WPW10316282 Whirlpool Top Assembly
2	WPW10208383 Whirlpool Top Panel
3	HARNESS, MAIN
4	WPW10352485 Whirlpool Console
4	PANEL, CONSOLE (WHITE)
4	PANEL, CONSOLE (SILVER)
5	WPW10653575 Whirlpool Channel
6	W11480682 Whirlpool Bracket
7	HARNESS, JUMPER UI
8	W10267937 Whirlpool Wire Harness
9	Medallion
10	WP693995 Whirlpool Screw
11	WP488729 Whirlpool Refrigerator Door Screw
12	W10267832 Whirlpool Wire
13	UI, CENTER (INCLUDES KNOB)
14	WPW10251394 Whirlpool Knob
15	W10317566 Whirlpool Clip
