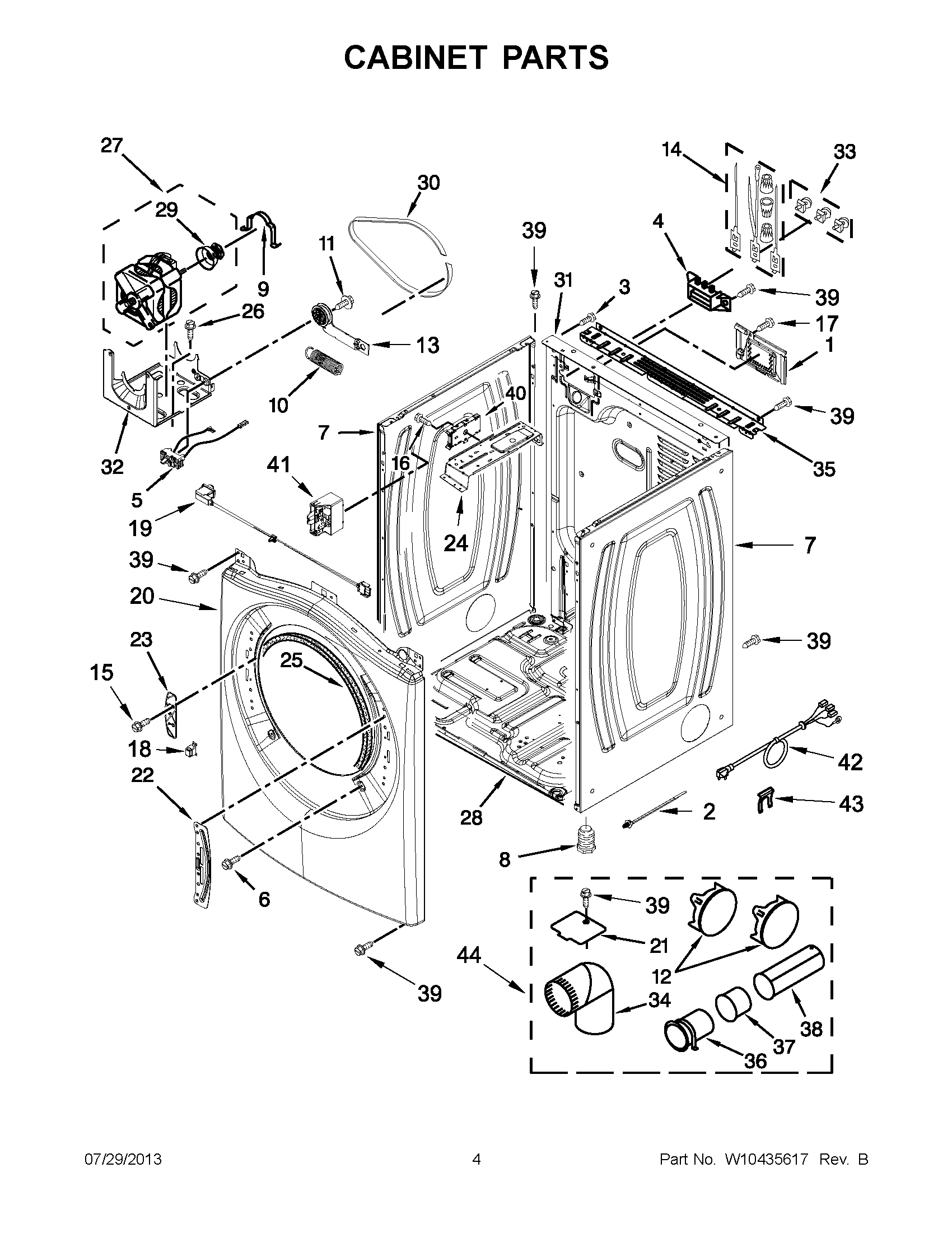

YWED97HEXR1 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WPW10316167 Whirlpool Dishwasher Terminal Cover
2	WPW10339879 Whirlpool Wire Tie
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	W10847984 Whirlpool Switch
6	WP308685 Whirlpool Microwave Screw
7	PANEL, SIDE (L.H.) (RED)
7	W11233548 Whirlpool Panel
7	WPW10468499 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	W10837240 Whirlpool Dryer Idler Pulley
14	279318 Whirlpool Terminal
15	SCREW
16	WP693995 Whirlpool Screw
17	WP3390631 Whirlpool Screw
18	W11240283 Whirlpool Catch Assembly
19	DOOR SWITCH ASSEMBLY
20	W10337783 Whirlpool Panel
20	WPW10316296 Whirlpool Panel
20	FRONT PANEL (INCLUDE ITEM, 25. ) (WHITE)
21	WPW10354249 Whirlpool Cover
22	BRACKET, DOOR HINGE
23	WPW10208250 Whirlpool Strike
24	BRACKET, CONTROL
25	WP3387242 Whirlpool Seal
26	SCREW
27	279787 Whirlpool Dryer Drive Motor
28	W11215531 Whirlpool Base
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10487430 Whirlpool Rear Panel
32	W11481730 Whirlpool Bracket
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
35	WPW10208382 Whirlpool Dryer Bracket
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	WP488729 Whirlpool Refrigerator Door Screw
40	W10845086 Whirlpool Control Board + Core
41	Power Cube
42	CORD-POWER
43	W11712577 Whirlpool Clip
44	W10323246 Whirlpool Dryer Vent Kit 4-Way
