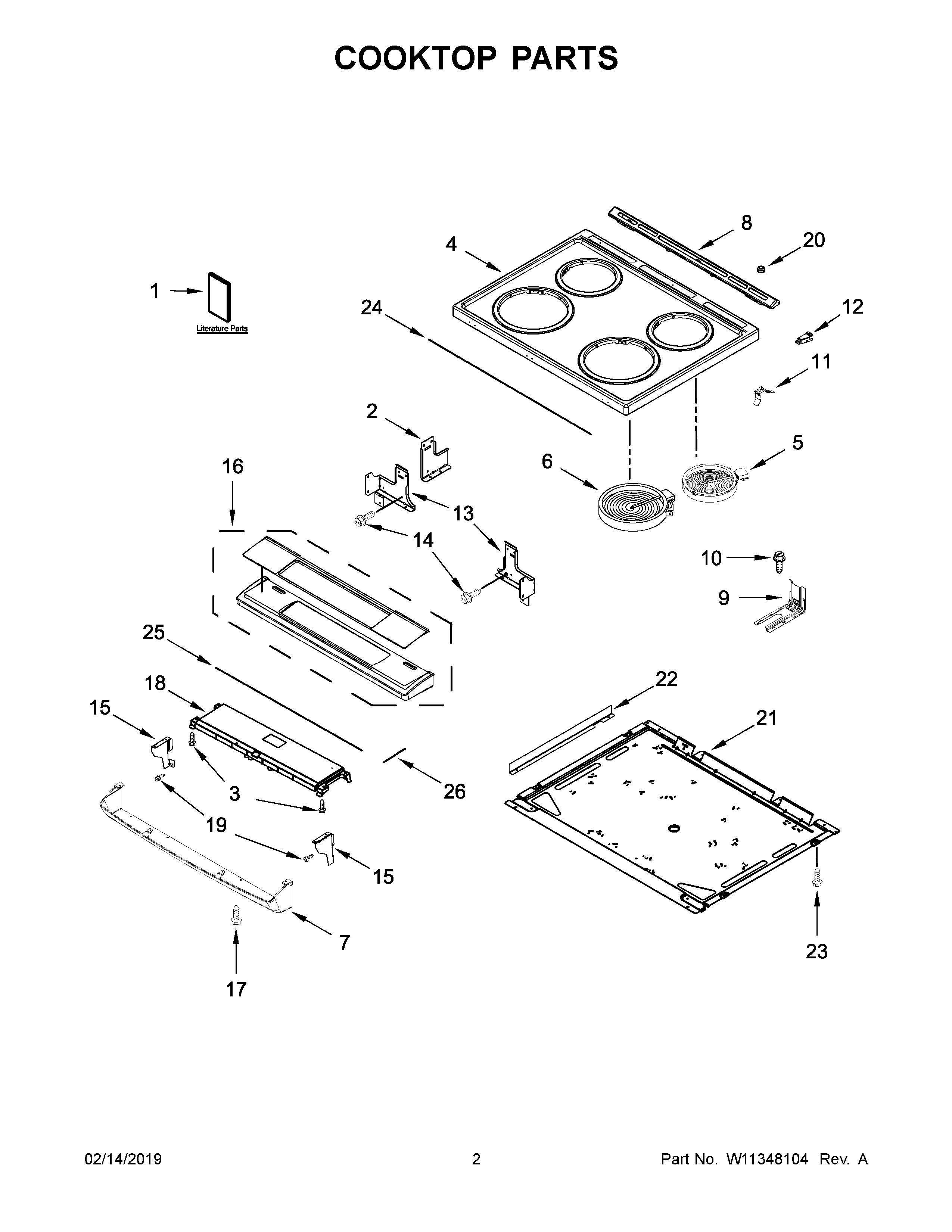

YWEE510S0FB2 02 – COOKTOP PARTS

YWEE510S0FB2 02 – COOKTOP PARTS

Written by

in

YWEE510S0FB2 02 – COOKTOP PARTS

Products

PositionProduct
NIW10664316 Whirlpool Clip
NIHARNESS, MAIN
NIW11171886 Whirlpool Wire Harness
NICLAMP, WIRE
NI16515 Whirlpool Clip
NIW11172419 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
1INSTRUCTIONS, INSTALLATION
1CWIRING DIAGRAM
1AUSE AND CARE GUIDE
1BTECH SHEET
2W10814305 Whirlpool Bracket Support
3W11245710 Whirlpool Refrigerator Screw
4W11040044 Whirlpool Glass Maintop
4AW11043368 Whirlpool Cooktop
5ELMNT-SURF
6W11517959 Whirlpool Electric Range Radiant Surface Element
7AW10894127 Whirlpool Control Panel
7W10894124 Whirlpool Control Panel
8W11240519 Whirlpool Vent Trim
8AW10636527 Whirlpool Vent Trim
9W11502257 Whirlpool Anchor Tip
10SCREW, ANTI-TIP KIT
11WPW10225448 Whirlpool Spring Assembly
12W10162253 Whirlpool Mounting Bracket
12AW10162252 Whirlpool Bracket Mounting
13SUPPORT, COOKTOP (LEFT)
13AW10814304 Whirlpool Support Bracket
14WP3196557 Whirlpool Screw
15AW10547961 Whirlpool Endcap Panel
15W10547960 Whirlpool Endcap Panel
16W10893944 Whirlpool Control Panel
16AW10893945 Whirlpool Control Panel
17W10516115 Whirlpool Screw
18W10894098 Whirlpool Range Electronic Control Board + Core
19SCREW
20W11690600 Whirlpool Bumper
21W10536275 Whirlpool Pan
22BRACKET, RADIANT
23W11244557 Whirlpool Screw
24W10802441 Whirlpool Gasket
25W10802457 Whirlpool Gasket
26W11744482 Whirlpool Gasket Assembly
