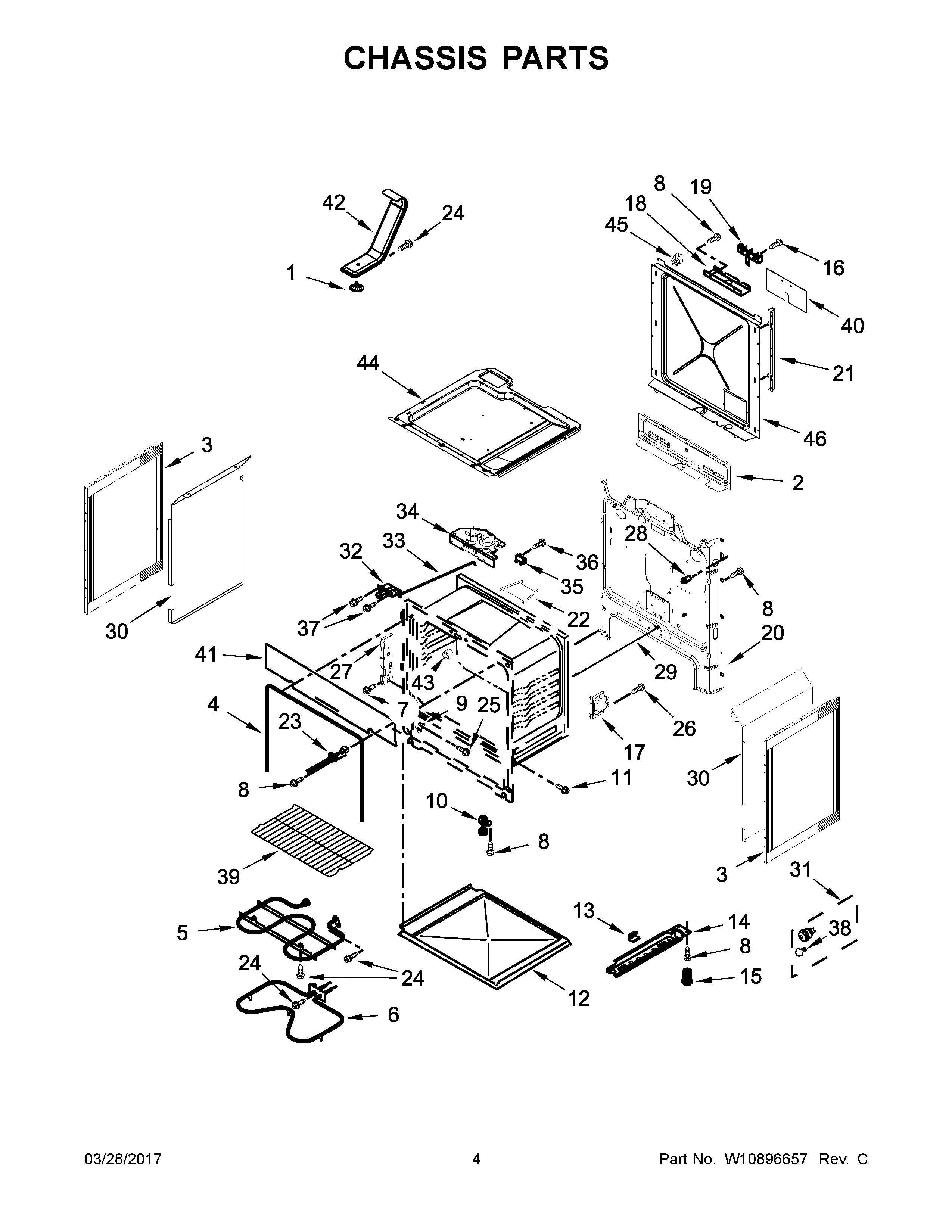

YWEE510S0FW0 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	INSULATION, WRAP
1	9761301 Whirlpool Oven Screen
2	W10162248 Whirlpool Wire Cover
3	WPW10575396 Whirlpool Side Panel
3A	W11730303 Whirlpool Side Panel
4	W11542153 Whirlpool Door Gasket
5	WPW10583047 Whirlpool Broil Element
6	W11447783 Whirlpool Bake Element
7	W10777162 Whirlpool Screw
8	SCREW
9	W10807823 Whirlpool Drawer Glide
10	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
11	WPW10067840 Whirlpool Screw
12	TRAY, INSULATION
13	W10137382 Whirlpool Clip
14A	WPW10306546 Whirlpool Base Rail
15	WPW10058460 Whirlpool Appliance Levelling Leg
16	WP355214 Whirlpool Screw
17	W10404688 Whirlpool Bracket Support
18	W11728255 Whirlpool Service Bracket
19	WPW10245259 Whirlpool Terminal Block
20	BACK, MAIN
21	W10162241 Whirlpool Channel
22	BAFFLE, UPPER CHASSIS
23	SENSOR-RANGE
25	Screw
26	WP3196557 Whirlpool Screw
27	W10647259 Whirlpool Hinge Receiver
28	WP9757262 Whirlpool Light Switch
29	9757239 Whirlpool Oven Door Rod
30A	9761448 Whirlpool Oven Retainer
30	9761449 Whirlpool Oven Retainer
31	W11594027 Whirlpool Range Oven Light Socket
32	WP9761013 Whirlpool Door Latch
33	W10078370 Whirlpool Latch Rod
34	WPW10107820 Whirlpool Door Latch
35	WP3196548 Whirlpool Thermal Fuse
36	3196172 Whirlpool Oven Screw
37	W11169708 Whirlpool Screw
38	RANGE ONLY 40W 120V APPL BULB
39	RACK-OVEN
40	W10655441 Whirlpool Insulation Wire
41	W11688573 Whirlpool Insulation
42	W10824557 Whirlpool Vent Tube
43	W10877054 Whirlpool Spacer Assembly
44	W10814301 Whirlpool Burner Box
45	CLIP-PANEL, RATCHETING
46	W11379354 Whirlpool Rear Cover
