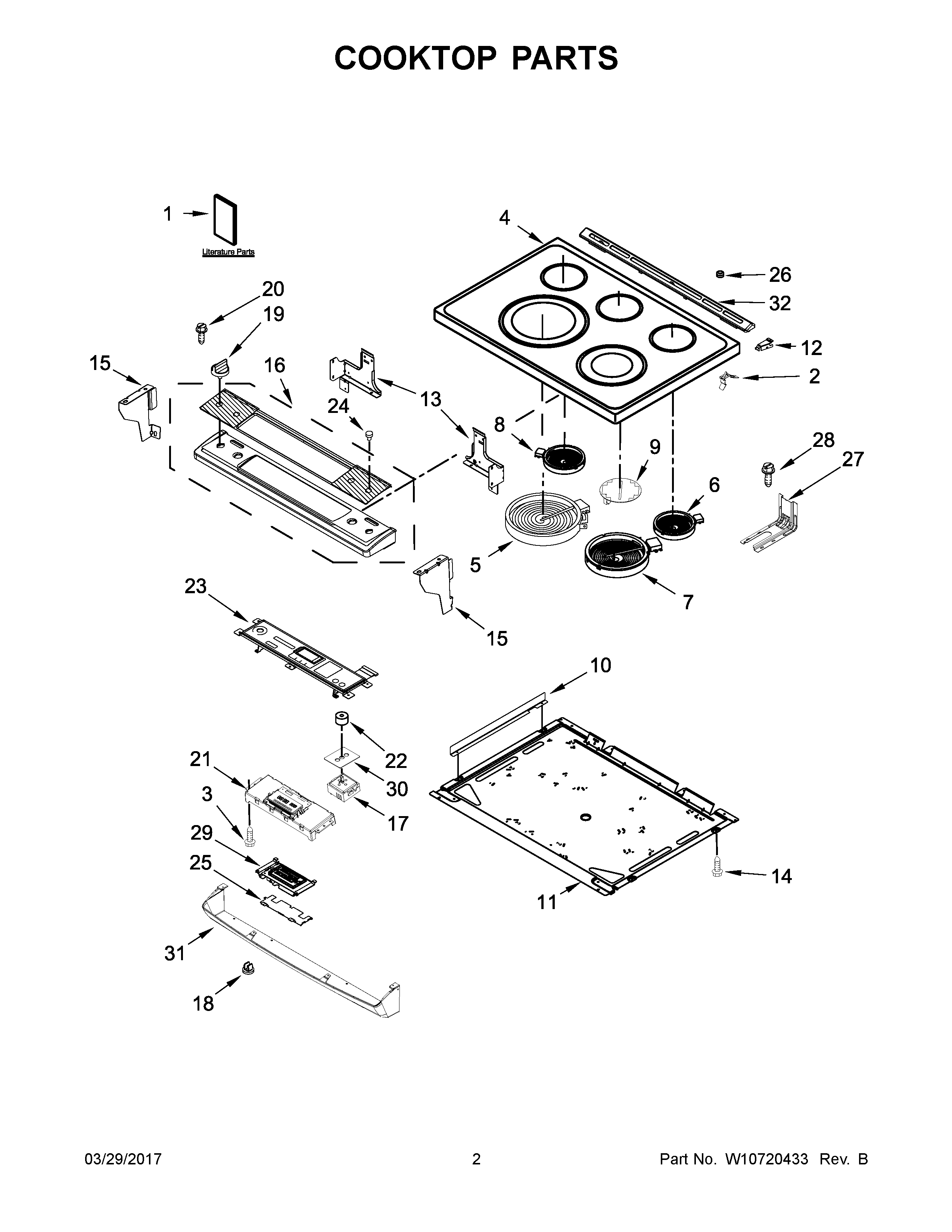

YWEE730H0DB0 02 – COOKTOP PARTS
Written by
in
YWEE730H0DB0 02 – COOKTOP PARTS
Products
Position
Product
NI
W10580280 Whirlpool Wire Harness
NI
WPL W10580294
NI
W11025616 Whirlpool Wire Harness
NI
WPL W10580295
NI
W11226772 Whirlpool Wire Harness
NI
W10664316 Whirlpool Clip
NI
CABINET (NOT A SERVICEABLE PART)
1B
SHEET, TECH
1F
QUICK START GUIDE (FRENCH)
1A
GUIDE, USE & CARE
1E
QUICK START GUIDE
1
INSTRUCTIONS, INSTALLATION
1D
Safer Cooking Tips (French)
1C
SAFER COOKING TIPS (ENGLISH
2
WPW10225448 Whirlpool Spring Assembly
3
SCREW
4
W10717748 Whirlpool Cooktop
4A
W10717749 Whirlpool Cooktop
5
ELMNT-SURF
6
ELMNT-SURF
7
W11047722 Whirlpool Radiant Surface Element
8
WPW10270604 Whirlpool Surface Element
9
W11041453 Whirlpool Surface Element
10
W10613286 Whirlpool Bracket
11
W10536275 Whirlpool Pan
12
W10162253 Whirlpool Mounting Bracket
12A
W10162252 Whirlpool Bracket Mounting
13B
W10598048 Whirlpool Support Bracket
13
W10289169 Whirlpool Bracket Support
13A
W10289170 Whirlpool Support Bracket
14
W11244557 Whirlpool Screw
15
W10547960 Whirlpool Endcap Panel
15A
W10547961 Whirlpool Endcap Panel
16A
W10728515 Whirlpool Control Panel
16
CONSOLE, ASSEMBLY (WHITE)
16B
W10728516 Whirlpool Stainless Control Panel
17A
W10911303 Whirlpool Infinite Switch
17
SWITCH-INF
17C
WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
17B
W11162115 Whirlpool Infinite Switch
18
W11025100 Whirlpool Insert
19A
W11568623 Whirlpool Knob
19B
W10828837 Whirlpool Knob
19
W11677626 Whirlpool Knob
20
WP3400882 Whirlpool Screw
21
W11050557-includeCORE Whirlpool W11050557 Washer Electronic Control Board + Core
22
W10702912 Whirlpool Switch Gasket
23
W10728524 Whirlpool Membrane Switch
23B
W10728531 Whirlpool Membrane Switch
23A
W10728532 Whirlpool Dishwasher Membrane Switch
24
WP3196068 Whirlpool Light Lens
25
W10558372 Whirlpool Bracket Mounting
26
W11104127 Whirlpool Bumper Assembly
27
W11502257 Whirlpool Anchor Tip
28
SCREW, ANTI-TIP KIT
29
WPW10603098 Whirlpool Stove Electronic Control Board + Core
30
GASKET, SWITCH
31
WPL W10570528
31A
W11218703 Whirlpool Mounting Bracket
31B
WPL W10581493
32
W10636527 Whirlpool Vent Trim
32A
W11240519 Whirlpool Vent Trim
←
