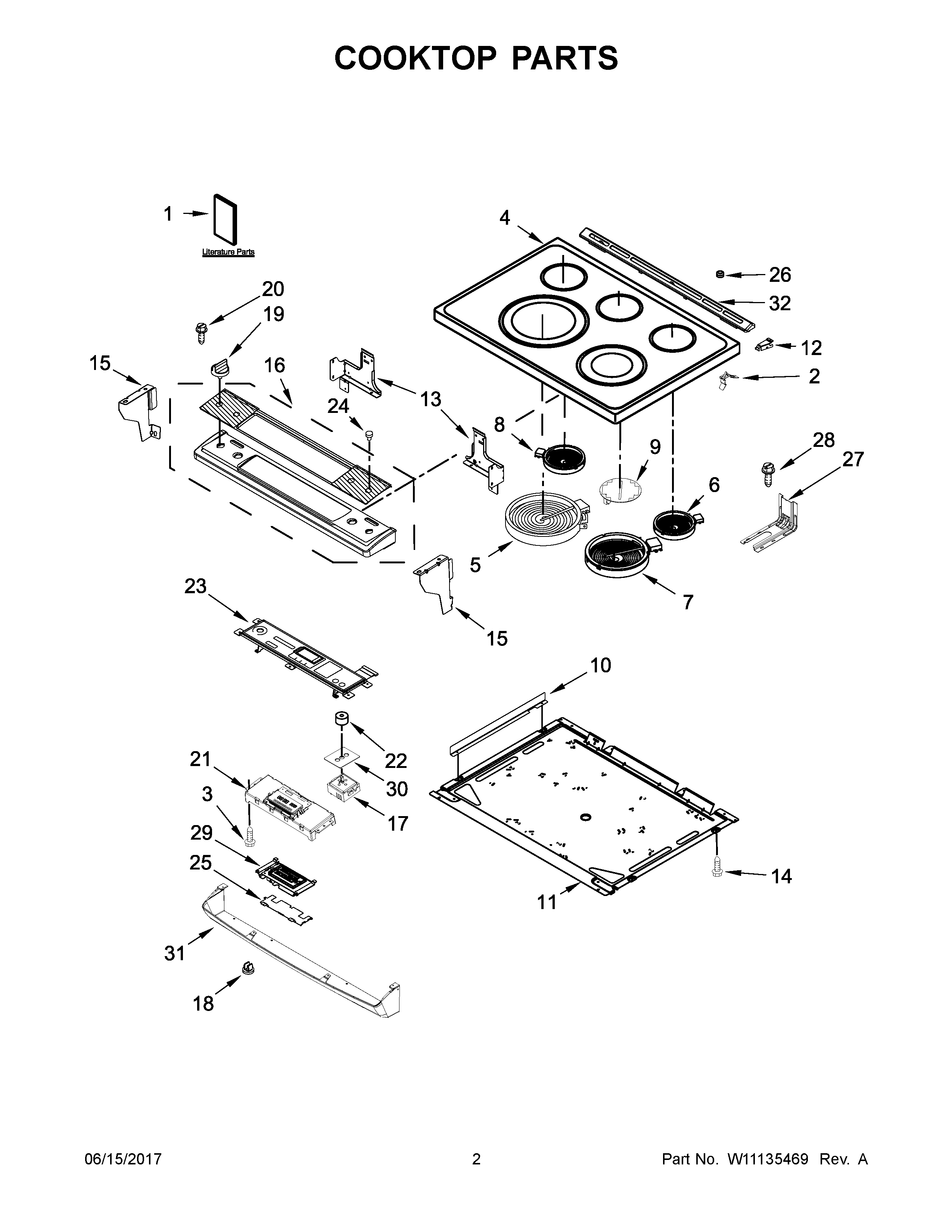

YWEE730H0DS1 02 – COOKTOP PARTS

YWEE730H0DS1 02 – COOKTOP PARTS

Written by

in

YWEE730H0DS1 02 – COOKTOP PARTS

Products

PositionProduct
NIW10664316 Whirlpool Clip
NIW11226772 Whirlpool Wire Harness
NIW11025616 Whirlpool Wire Harness
NIWPL W10580295
NIW10580280 Whirlpool Wire Harness
NIWPL W10580294
NICABINET (NOT A SERVICEABLE PART)
1INSTRUCTIONS, INSTALLATION
1FQUICK START GUIDE (FRENCH)
1EQUICK START GUIDE
1BSHEET, TECH
1AGUIDE, USE & CARE
1CSAFER COOKING TIPS (ENGLISH
1DSafer Cooking Tips (French)
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4AW10717749 Whirlpool Cooktop
4W10717748 Whirlpool Cooktop
5ELMNT-SURF
6ELMNT-SURF
7W11047722 Whirlpool Radiant Surface Element
8WPW10270604 Whirlpool Surface Element
9W11041453 Whirlpool Surface Element
10W10613286 Whirlpool Bracket
11W10536275 Whirlpool Pan
12W10162253 Whirlpool Mounting Bracket
12AW10162252 Whirlpool Bracket Mounting
13AW10289170 Whirlpool Support Bracket
13W10289169 Whirlpool Bracket Support
13BW10598048 Whirlpool Support Bracket
14W11244557 Whirlpool Screw
15W10547960 Whirlpool Endcap Panel
15AW10547961 Whirlpool Endcap Panel
16AW10728516 Whirlpool Stainless Control Panel
16CONSOLE, ASSEMBLY (WHITE)
17AW10911303 Whirlpool Infinite Switch
17BW11162115 Whirlpool Infinite Switch
17CWPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
17SWITCH-INF
18W11025100 Whirlpool Insert
19W11677626 Whirlpool Knob
19AW10828837 Whirlpool Knob
20WP3400882 Whirlpool Screw
21W11050557-includeCORE Whirlpool W11050557 Washer Electronic Control Board + Core
22W10702912 Whirlpool Switch Gasket
23AW10728531 Whirlpool Membrane Switch
23W10728524 Whirlpool Membrane Switch
24WP3196068 Whirlpool Light Lens
25W10558372 Whirlpool Bracket Mounting
26W11104127 Whirlpool Bumper Assembly
27W11502257 Whirlpool Anchor Tip
28SCREW, ANTI-TIP KIT
29W11122852 Whirlpool Electronic Control Board + Core
30GASKET, SWITCH
31WPL W10570528
31AWPL W10581493
32W10636527 Whirlpool Vent Trim
32AW11240519 Whirlpool Vent Trim
