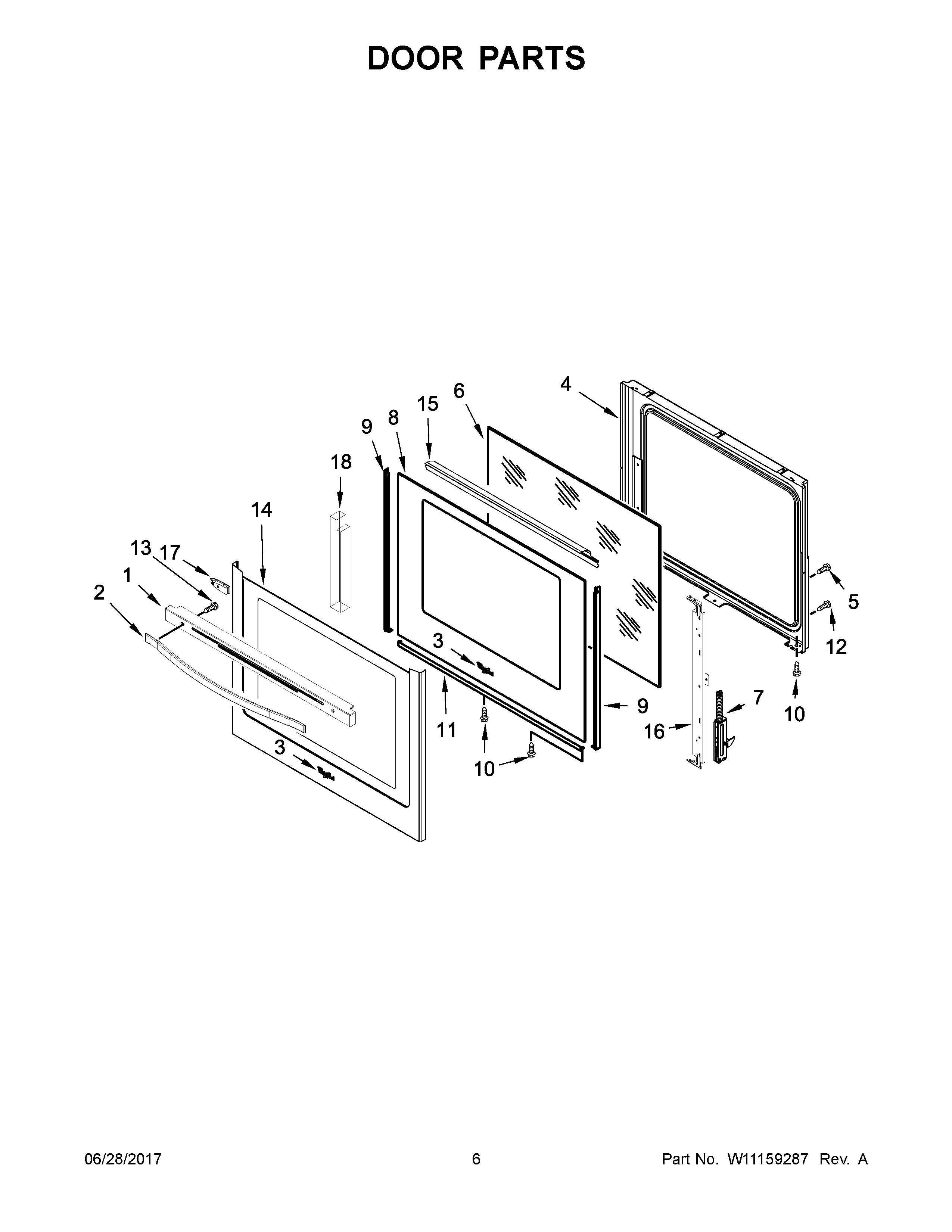

YWEE745H0FE1 04 – DOOR PARTS

Products

Position	Product
1A	WPW10335331 Whirlpool Trim Vent
1B	W11205076 Whirlpool Vent Trim
1	W10294855 Whirlpool Vent Trim
2	WPW10618239 Whirlpool Door Handle
3	W11178521 Whirlpool Dishwasher Nameplate
4	WPW10297318 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WPW10300487 Whirlpool Door Glass
7	WPW10440013 Whirlpool Door Hinge
8A	WPW10289141 Whirlpool Door Glass
8	WPW10289142 Whirlpool Glass Door
8B	W10881761 Whirlpool Door Glass
9A	W10334003 Whirlpool Door Trim
9	W10334004 Whirlpool Door Trim
10	W11169708 Whirlpool Screw
11A	WPW10333990 Whirlpool Glass Bracket
11	W10334031 Whirlpool Glass Bracket
12	W10777162 Whirlpool Screw
13	WPW10317886 Whirlpool Screw
14	W10909032 Whirlpool Door Glass
15	W10294853 Whirlpool Mounting Bracket
16	W11116956 Whirlpool Support Bracket
17	WPW10410341 Whirlpool Spacer
17A	WPW10429492 Whirlpool Spacer
18	W11688565 Whirlpool Insulation
