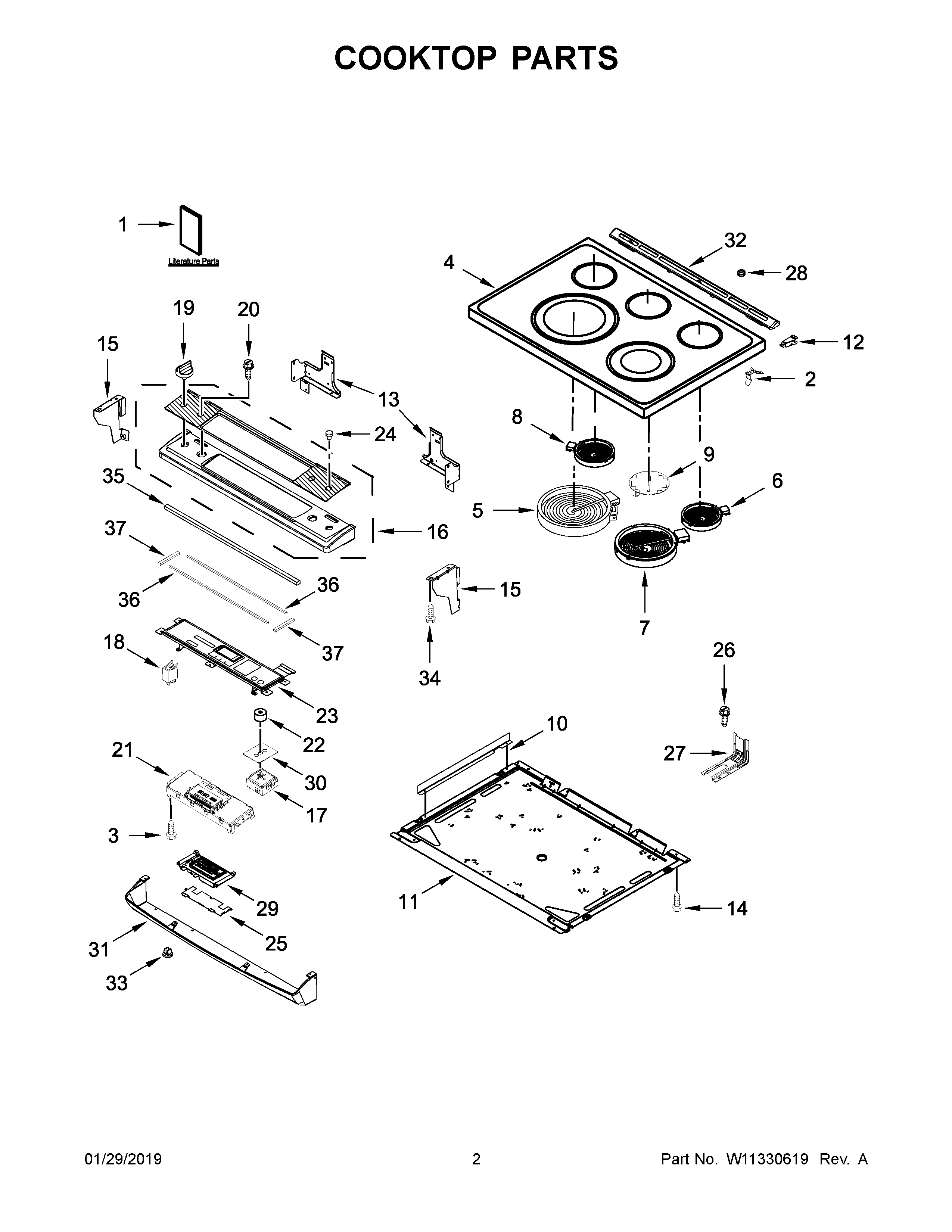

YWEE745H0FS2 02 – COOKTOP PARTS
Written by
in
YWEE745H0FS2 02 – COOKTOP PARTS
Products
Position
Product
NI
W11025616 Whirlpool Wire Harness
NI
16515 Whirlpool Clip
NI
W11226786 Whirlpool Wire Harness
NI
W11226772 Whirlpool Wire Harness
NI
W11226773 Whirlpool Wire Harness
NI
W10664316 Whirlpool Clip
NI
CABINET (NOT A SERVICEABLE PART)
NI
WPL W11188443
1A
GUIDE, USE AND CARE
1E
DIAGRAM, WIRING
1
INSTRUCTIONS, INSTALLATION
1C
QUICK START GUIDE
1D
QUICK START GUIDE (FRENCH)
1B
SHEET, TECH
2
WPW10225448 Whirlpool Spring Assembly
3
SCREW
4
W10884395 Whirlpool Cooktop
5
W11563195 Whirlpool Surface Element
6
ELMNT-SURF
7
W11517959 Whirlpool Electric Range Radiant Surface Element
8
WPW10342780 Whirlpool Surface Element
9
W11041453 Whirlpool Surface Element
10
BRACKET, RADIANT
11
W10536275 Whirlpool Pan
12A
W10162252 Whirlpool Bracket Mounting
12
W10162253 Whirlpool Mounting Bracket
13A
W10289169 Whirlpool Bracket Support
13B
W10598048 Whirlpool Support Bracket
13
W10289170 Whirlpool Support Bracket
14
W11244557 Whirlpool Screw
15
W10547960 Whirlpool Endcap Panel
15A
W10547961 Whirlpool Endcap Panel
16
W10884503 Whirlpool Control Panel
17A
SWITCH-INF
17B
W10911303 Whirlpool Infinite Switch
17
W11129442 Whirlpool Surface Infinite Element Switch
17C
W10917724 Whirlpool Infinite Switch
18
WP8523265 Whirlpool Indicator Light
19
W11517331 Whirlpool Knob
20
W10674068 Whirlpool Screw
21
W10884488 Whirlpool Electronic Control Board
22
W10702912 Whirlpool Switch Gasket
23
W10728532 Whirlpool Dishwasher Membrane Switch
24
WP3196068 Whirlpool Light Lens
25
W10558372 Whirlpool Bracket Mounting
26
SCREW, ANTI-TIP KIT
27
W11502257 Whirlpool Anchor Tip
28
W11104127 Whirlpool Bumper Assembly
29
W11122852 Whirlpool Electronic Control Board + Core
30
GASKET, SWITCH
31
W11218703 Whirlpool Mounting Bracket
32
W11240519 Whirlpool Vent Trim
33
W11025100 Whirlpool Insert
34
W11245710 Whirlpool Refrigerator Screw
35
W10802441 Whirlpool Gasket
36
W10802457 Whirlpool Gasket
37
W11744482 Whirlpool Gasket Assembly
←
