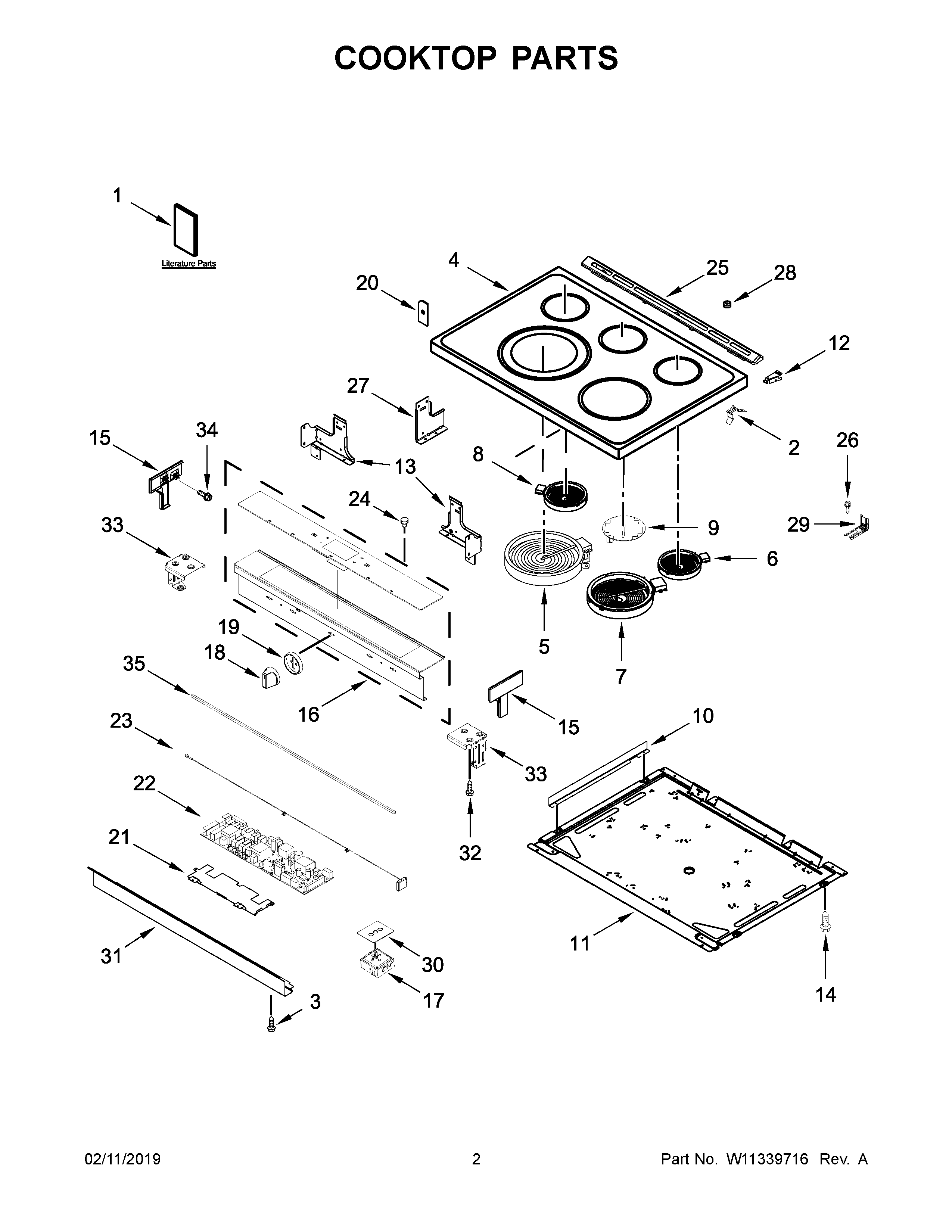

YWEE750H0HB1 02 – COOKTOP PARTS

YWEE750H0HB1 02 – COOKTOP PARTS

Written by

in

YWEE750H0HB1 02 – COOKTOP PARTS

Products

Position	Product
NI	WPL W11176672
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10664316 Whirlpool Clip
NI	W11226786 Whirlpool Wire Harness
NI	W11174740 Whirlpool Wire Harness
1B	SHEET, TECH
1D	WIRING, DIAGRAM
1A	USE AND CARE GUIDE
1C	GUIDE, INTERNET CONNECTIVITY
1	INSTRUCTIONS, INSTALLATION
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4A	W11112610 Whirlpool Cooktop
4	W11111844 Whirlpool Cooktop
5	W11563195 Whirlpool Surface Element
6	ELMNT-SURF
7	W11517959 Whirlpool Electric Range Radiant Surface Element
8	WPW10342780 Whirlpool Surface Element
9	W11041453 Whirlpool Surface Element
10	BRACKET, RADIANT
11	W10536275 Whirlpool Pan
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13A	W10867592 Whirlpool Support Bracket
13	W10867593 Whirlpool Support Bracket
14	W11244557 Whirlpool Screw
15C	ENDCAP (BLACK (RIGHT))
15B	ENDCAP (WHITE (RIGHT))
15	ENDCAP (WHITE (LEFT))
15A	ENDCAP (BLACK (LEFT))
16A	W11339764-includeCORE Whirlpool W11339764 Refrigerator Electronic Control Board + Core
16	W11339761-includeCORE Whirlpool W11339761 Electronic Control Board + Core
17	W11129442 Whirlpool Surface Infinite Element Switch
17A	W10911303 Whirlpool Infinite Switch
17B	SWITCH-INF
17C	W10917724 Whirlpool Infinite Switch
17D	W10888698 Whirlpool Selector Switch
18B	W11112764 Whirlpool Knob
18F	W11113747 Whirlpool Knob
18	W11112747 Whirlpool Knob
18G	W11113785 Whirlpool Knob
18D	W11113732 Whirlpool Knob
18E	W11113734 Whirlpool Knob
18C	W11112766 Whirlpool Knob
18A	W11112751 Whirlpool Knob Assembly
19	BEZEL (WHITE)
19A	BEZEL (BLACK)
20	W10882900 Whirlpool Gasket
21	WPL W10908536
22	W11113848-includeCORE Whirlpool W11113848 Refrigerator Electronic Control Board + Core
23	W11583804 Whirlpool Antenna
24	WP3196068 Whirlpool Light Lens
25	W10636527 Whirlpool Vent Trim
25A	W11240519 Whirlpool Vent Trim
26	SCREW, ANTI-TIP KIT
27	WPL W10867600
28	W11104127 Whirlpool Bumper Assembly
29	W11502257 Whirlpool Anchor Tip
30	GASKET, SWITCH
31	W10854346 Whirlpool Dishwasher Mounting Bracket
32	W10491985 Whirlpool Screw
33A	WPL W10828160
33	WPL W10828159
34	W11245710 Whirlpool Refrigerator Screw
35	W10802441 Whirlpool Gasket
