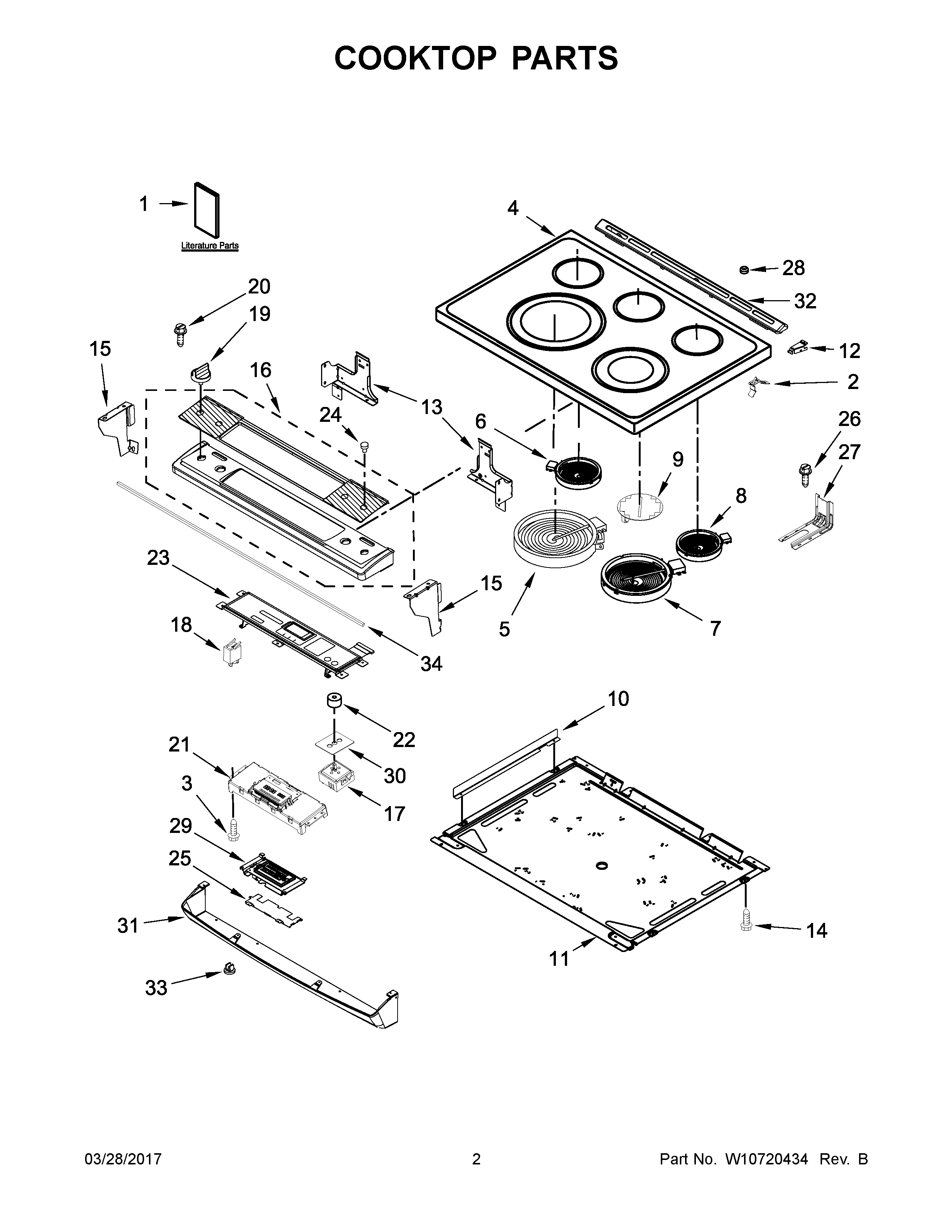

YWEE760H0DS0 02 – COOKTOP PARTS

Products

Position	Product
NI	W11226772 Whirlpool Wire Harness
NI	WPL W10580297
NI	W10664316 Whirlpool Clip
NI	WPL W10580243
NI	W11207143 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
1E	QUICK START GUIDE
1B	SHEET, TECH
1F	QUICK START GUIDE (FRENCH)
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE
1G	DIAGRAM, WIRING
1D	Safer Cooking Tips (French)
1C	SAFER COOKING TIPS (ENGLISH
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	W10727026 Whirlpool Cooktop
4A	W10727025 Whirlpool Cooktop
5	ELMNT-SURF
6	WPW10270604 Whirlpool Surface Element
7	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8	ELMNT-SURF
9	W11041453 Whirlpool Surface Element
10	W10613286 Whirlpool Bracket
11	W10536275 Whirlpool Pan
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13A	W10289169 Whirlpool Bracket Support
13	W10289170 Whirlpool Support Bracket
14	W11244557 Whirlpool Screw
15B	W10598048 Whirlpool Support Bracket
15A	W10547961 Whirlpool Endcap Panel
15	W10547960 Whirlpool Endcap Panel
16	W10728517 Whirlpool Control Panel
16A	W10728521 Whirlpool Control Panel
16B	W10728516 Whirlpool Stainless Control Panel
17A	WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
17C	W10911303 Whirlpool Infinite Switch
17B	W10917724 Whirlpool Infinite Switch
17	SWITCH-INF
18	WP8523265 Whirlpool Indicator Light
19	W10828837 Whirlpool Knob
20	WP3400882 Whirlpool Screw
21	W10884488 Whirlpool Electronic Control Board
22	W10702912 Whirlpool Switch Gasket
23A	W10728530 Whirlpool Membrane Switch
23	W10728531 Whirlpool Membrane Switch
24	WP3196068 Whirlpool Light Lens
25	W10558372 Whirlpool Bracket Mounting
26	SCREW, ANTI-TIP KIT
27	W11502257 Whirlpool Anchor Tip
28	W11104127 Whirlpool Bumper Assembly
29	WPW10603098 Whirlpool Stove Electronic Control Board + Core
30	GASKET, SWITCH
31B	WPL W10581493
31A	WPL W10570528
31	W11218703 Whirlpool Mounting Bracket
32A	W10636527 Whirlpool Vent Trim
32	W11240519 Whirlpool Vent Trim
33	W11025100 Whirlpool Insert
34	W10802441 Whirlpool Gasket
