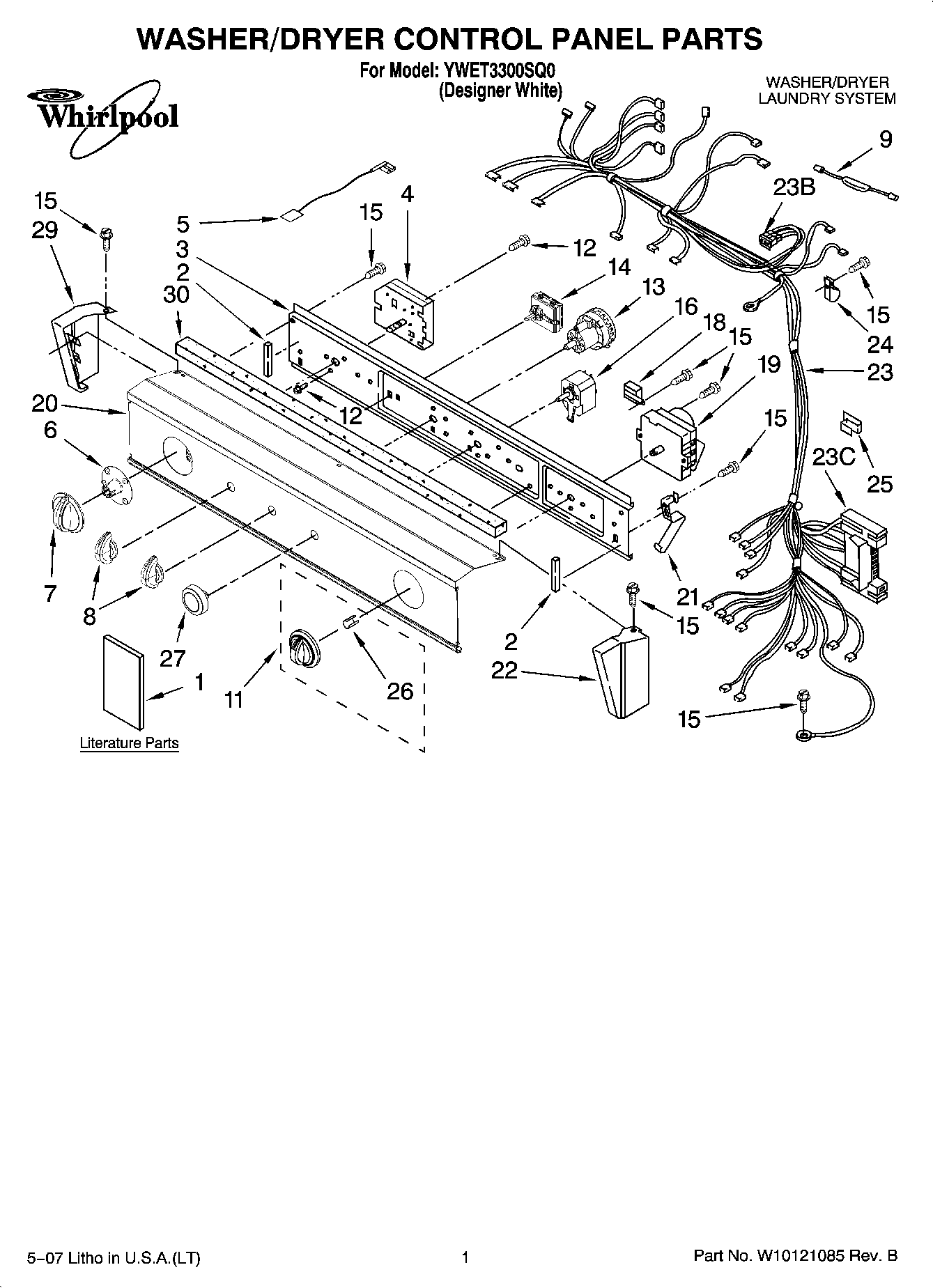

YWET3300SQ0 01 – WASHER/DRYER CONTROL PANEL PARTS

YWET3300SQ0 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

YWET3300SQ0 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1Installation Instructions (English)
1Use & Care Guide
1Wiring Diagram
1Sheet, Cycle Feature
23390688 Whirlpool Bumper Assembly
3W10732070 Whirlpool Bracket
4WPW10113761 Whirlpool Timer
5W10121648 Whirlpool Timer Jumper
6WP8566018 Whirlpool Dial Assembly
7Knob, Timer
8Knob, Control
9Resistor Assembly
11WP8566061 Whirlpool Knob
12W10915367 Whirlpool Screw Assembly
13Switch, Pressure
14W11103599 Whirlpool Temperature Switch
15WP90767 Whirlpool Screw
16WP3404233 Whirlpool Dryer Starter Switch
18WP694419 Whirlpool Buzzer Adjuster
19WPW10113804 Whirlpool Timer Assembly
20Panel, Control
213389453 Whirlpool Hinge Assembly
22End Cap (RH)
23Harness – Dryer
23C3395683 Whirlpool Connector
23BReceptacle,
247111P002-60 Whirlpool Clamp
25Clip, Harness (2)
26WP8536939 Whirlpool Spring Clip
27WP8566073 Whirlpool Appliance Knob
29End Cap (LH)
308521965 Whirlpool Gasket
