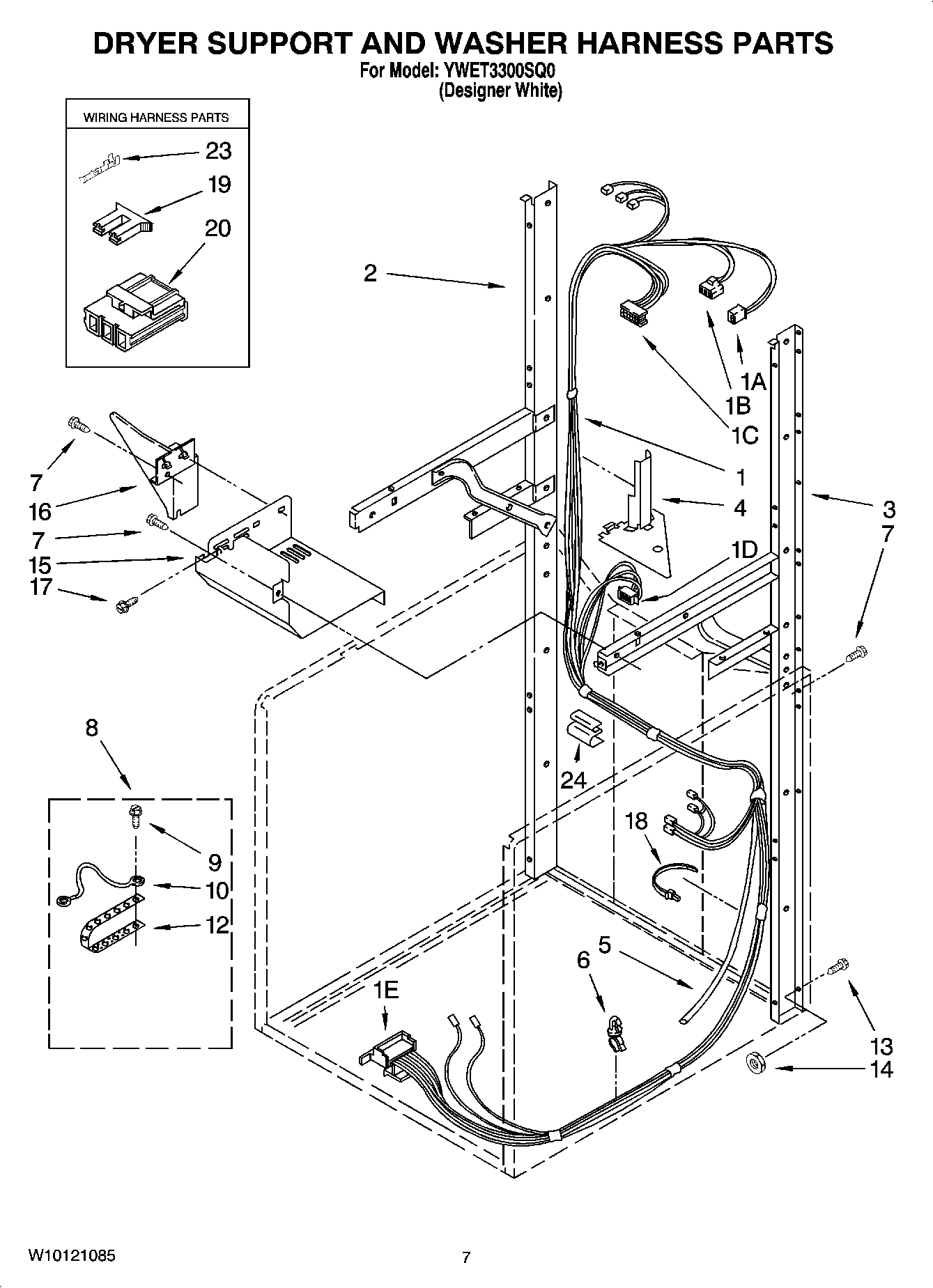

YWET3300SQ0 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

Position	Product
1	Harness – Washer
1A	3350130 Whirlpool Connector
1D	Receptacle, 3 Way
1B	Block, Disconnect
1C	W10876590 Whirlpool Connector
1E	WP62505 Whirlpool Connector
2	3388851 Whirlpool Support
3	3388850 Whirlpool Support
4	3390609 Whirlpool Shield
5	W10834213 Whirlpool Hose
6	2219077 Whirlpool Refrigerator Clip
7	SCREW
8	KIT, GROUNDING
9	WP90767 Whirlpool Screw
10	WPL 685449
12	Strap, Ground
13	Bolt, 5/16-18 x 1/2
14	Nut, Hex (4)
15	W11108181 Whirlpool Shield Assembly
16	Shield, Thermostat
17	WP308685 Whirlpool Microwave Screw
18	Tie, Cable
19	3354925 Whirlpool Connector
20	WP3360056 Whirlpool Connector
23	WP596797 Whirlpool Terminal
23	WP94614 Whirlpool Terminal
24	Protector, Harness
