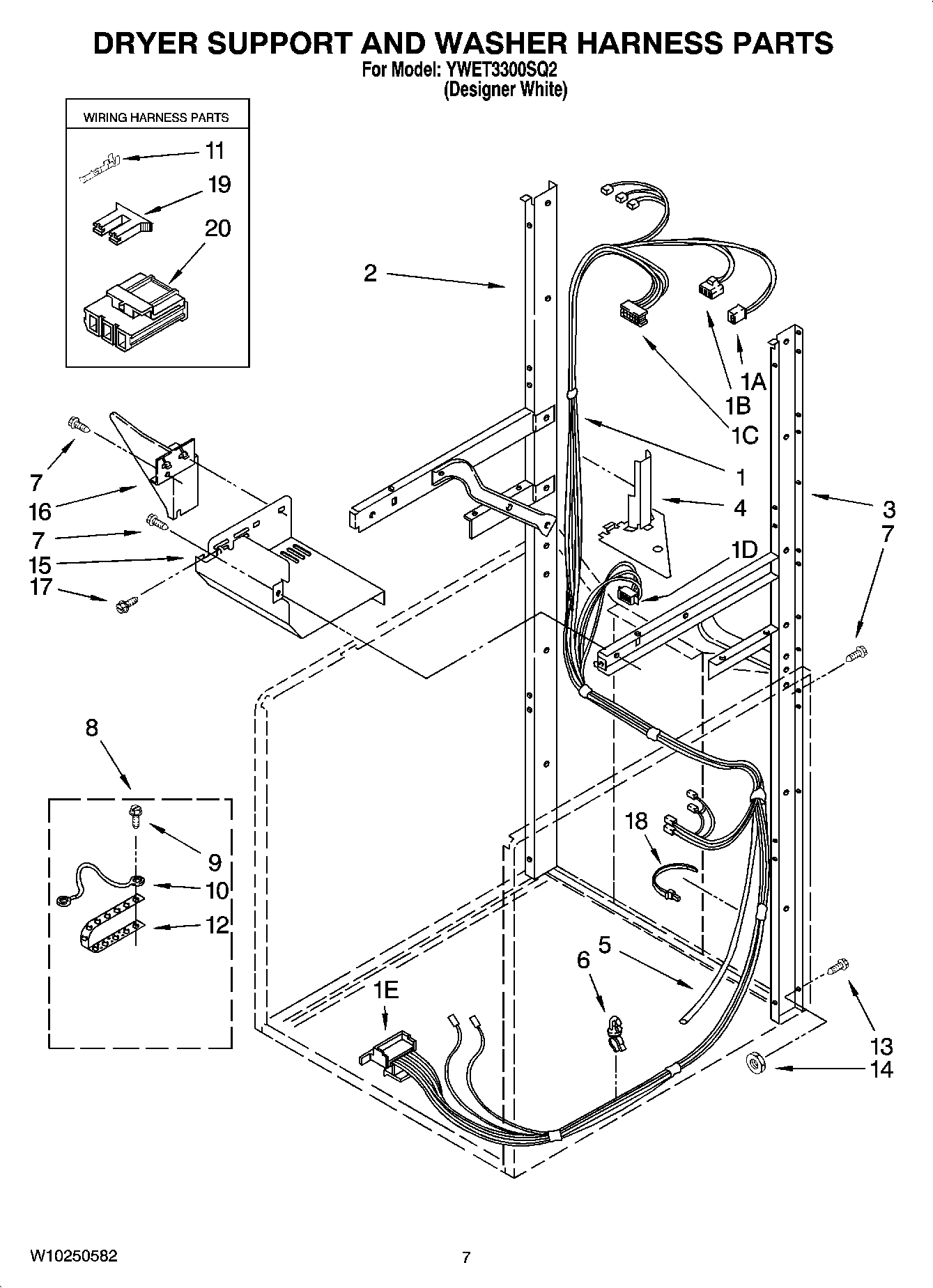

YWET3300SQ2 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

YWET3300SQ2 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Written by

in

YWET3300SQ2 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1Harness – Washer
1BBlock, Disconnect
1CW10876590 Whirlpool Connector
1A3350130 Whirlpool Connector
1EWP62505 Whirlpool Connector
1DReceptacle, 3 Way
23388851 Whirlpool Support
33388850 Whirlpool Support
43390609 Whirlpool Shield
5W10834213 Whirlpool Hose
6W10210799 Whirlpool Clip
7SCREW
8KIT, GROUNDING
9WP90767 Whirlpool Screw
10WPL 685449
11WP94614 Whirlpool Terminal
11WP596797 Whirlpool Terminal
12Strap, Ground
13Screw, 5/16-18 x 1/2 (2)
14WP8533952 Whirlpool Refrigerator Nut
15W11108181 Whirlpool Shield Assembly
16Shield, Thermostat
17WP308685 Whirlpool Microwave Screw
182219077 Whirlpool Refrigerator Clip
193354925 Whirlpool Connector
20WP3360056 Whirlpool Connector
