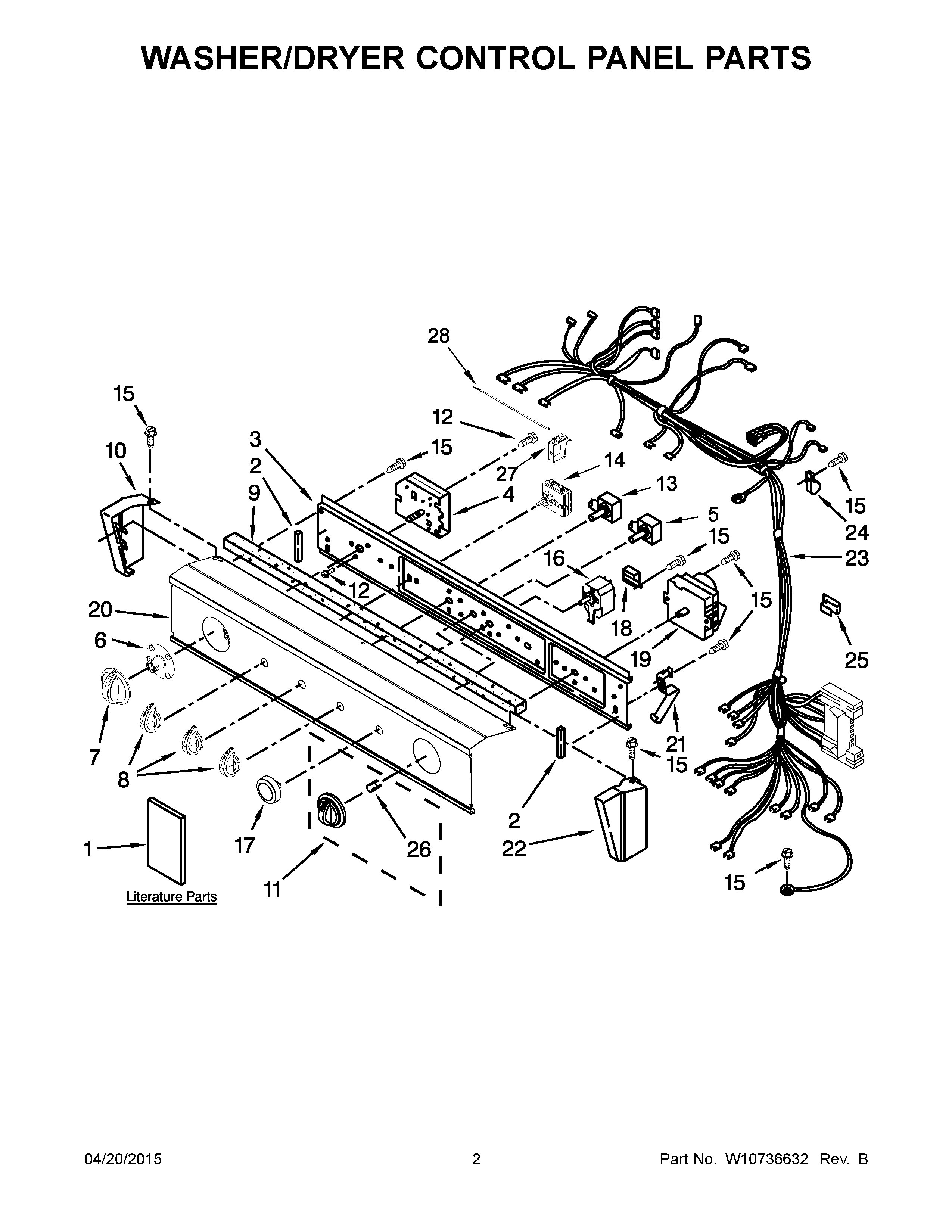

YWET3300XQ2 02 – WASHER/DRYER CONTROL PANEL PARTS

YWET3300XQ2 02 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

YWET3300XQ2 02 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1CENERGY GUIDE
1BWIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
1AUSE & CARE GUIDE
23390688 Whirlpool Bumper Assembly
3W10732070 Whirlpool Bracket
4WPW10113804 Whirlpool Timer Assembly
5W10851055 Whirlpool Cycle Switch
6WP8566018 Whirlpool Dial Assembly
7Knob, Timer
8Knob, Control
98521965 Whirlpool Gasket
10End Cap (LH)
11WP8566061 Whirlpool Knob
12W10915367 Whirlpool Screw Assembly
13WPW10544357 Whirlpool Cycle Switch
14W11103599 Whirlpool Temperature Switch
15WP90767 Whirlpool Screw
16WP3404233 Whirlpool Dryer Starter Switch
17WP8566073 Whirlpool Appliance Knob
18WP694419 Whirlpool Buzzer Adjuster
19W10854240 Whirlpool Laundry Center Dryer Timer
20W10339549 Whirlpool Control Panel
213389453 Whirlpool Hinge Assembly
22End Cap (RH)
23WIRING HARNESS, MAIN
247111P002-60 Whirlpool Clamp
25Clip, Harness (2)
26WP8536939 Whirlpool Spring Clip
27W10210799 Whirlpool Clip
28WPW10334336 Whirlpool Tie Wire
