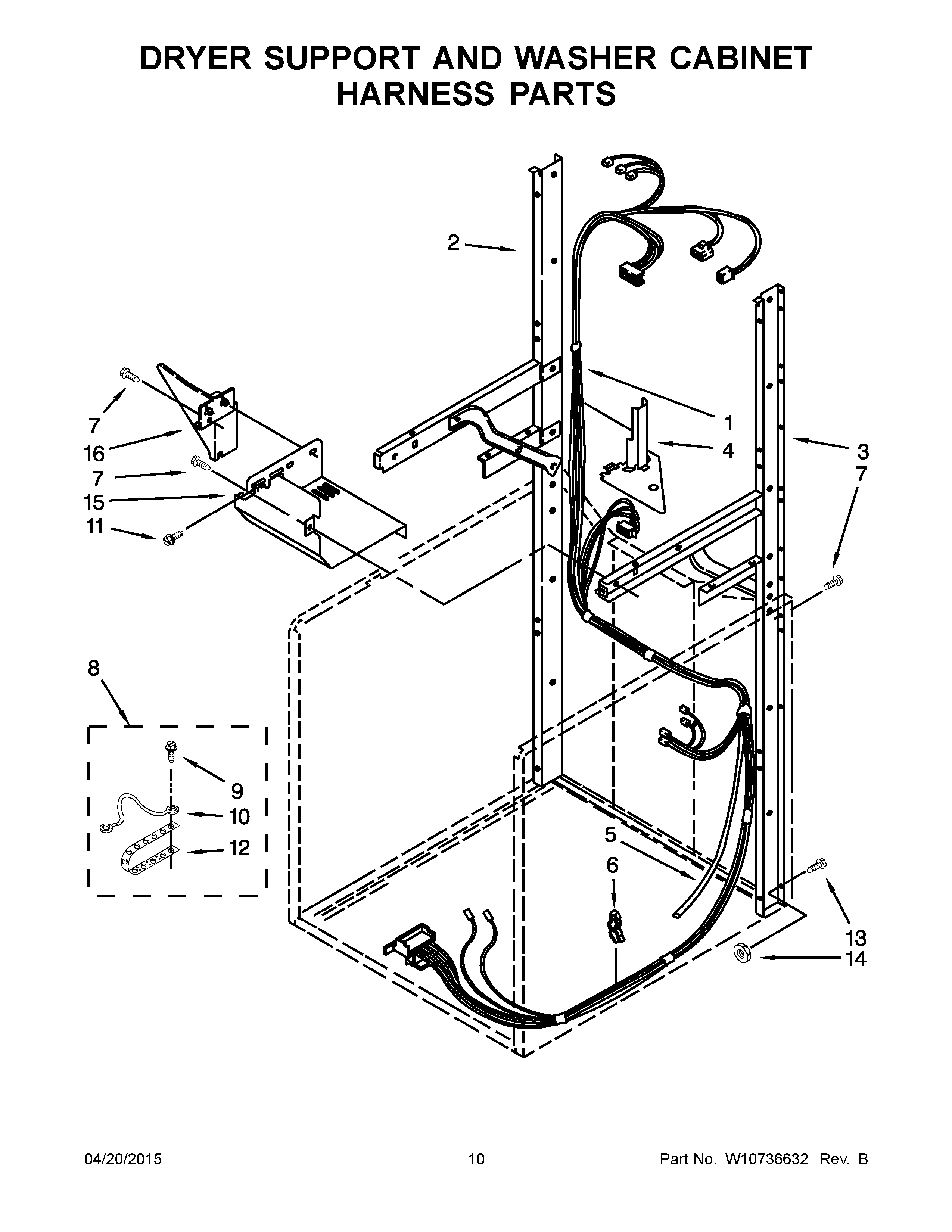

YWET3300XQ2 06 – DRYER SUPPORT AND WASHER CABINET HARNESS PARTS

Products

Position	Product
1	W10545604 Whirlpool Wire Harness
2	3388851 Whirlpool Support
3	3388850 Whirlpool Support
4	3390609 Whirlpool Shield
5	W10834213 Whirlpool Hose
6	W10210799 Whirlpool Clip
7	SCREW
8	KIT, GROUNDING
9	WP90767 Whirlpool Screw
10	WPL 685449
11	WP308685 Whirlpool Microwave Screw
12	Strap, Ground
13	Bolt, 5/16-18 x 1/2
14	WP8533952 Whirlpool Refrigerator Nut
15	W11108181 Whirlpool Shield Assembly
16	SHIELD, THERMOSTAT
