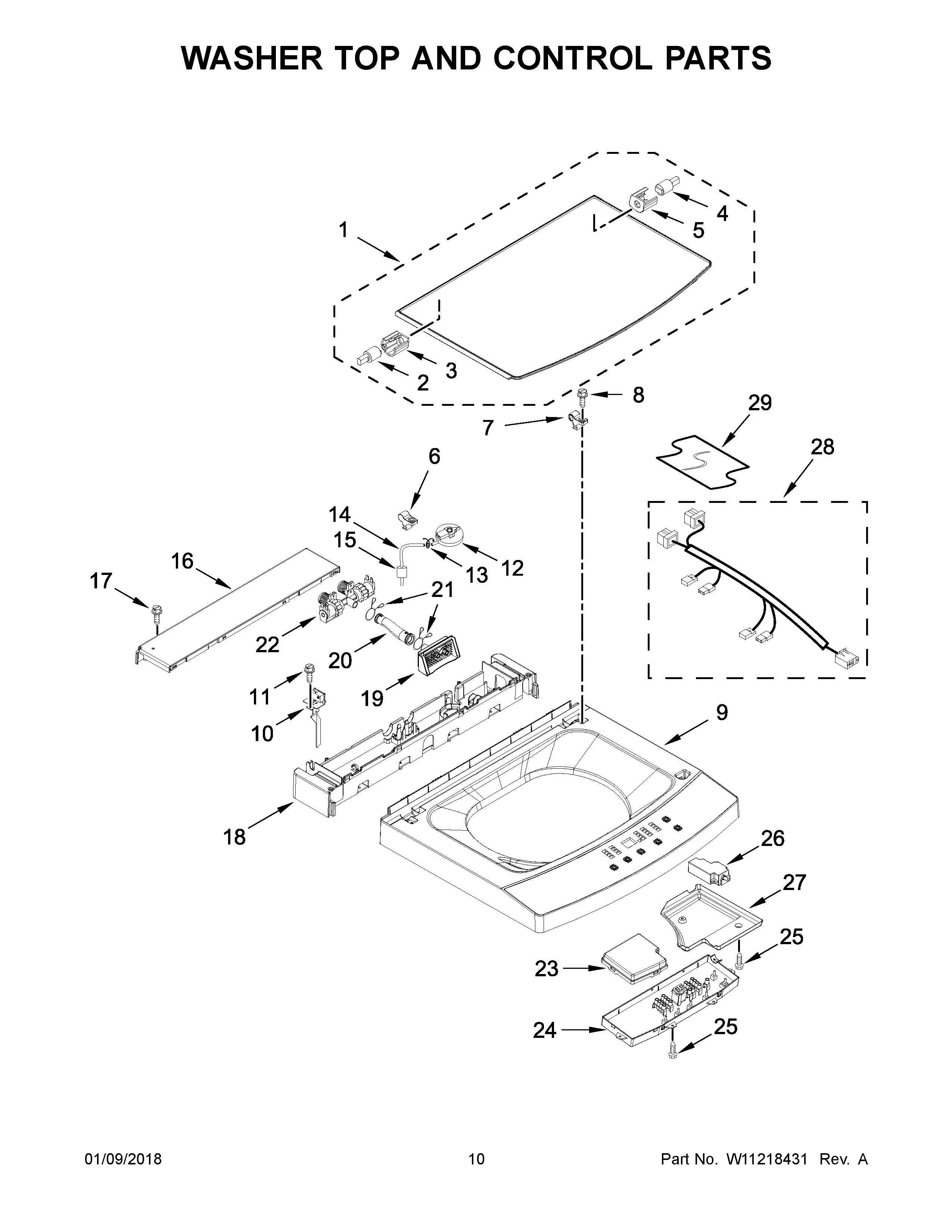

YWET4024HW0 06 – WASHER TOP AND CONTROL PARTS

YWET4024HW0 06 – WASHER TOP AND CONTROL PARTS

Written by

in

YWET4024HW0 06 – WASHER TOP AND CONTROL PARTS

Products

PositionProduct
1W11189136 Whirlpool Lid Assembly
2DAMPER (LEFT)
3COVER, DAMPER (LEFT)
4DAMPER (RIGHT)
5COVER, DAMPER (RIGHT)
6W11174370 Whirlpool Cover Assembly
7ROTARY SHAFT (RIGHT)
8SCREW
9W11676908 Whirlpool Top Assembly
10W10869495 Whirlpool KO Switch
11W10869499 Whirlpool Screw
12W11662130 Whirlpool Waffle Iron Switch
13W10883610 Whirlpool Hose Clamp
14W10882407 Whirlpool Hose Assembly
15W10882410 Whirlpool Sleeve
16W11174342 Whirlpool Cover
17W11296992 Whirlpool Screw
18HOUSING, WATER INLET
19FILL, WATER INLET
20W11189116 Whirlpool Hose
21CLAMP
22W10906602 Whirlpool Valve Assembly
23COVER, CONTROL (UPPER)
24W11189137-includeCORE Whirlpool W11189137 Washer Electronic Control Board + Core
25W10869504 Whirlpool Screw
26W11371714 Whirlpool Latch
27COVER, CONTROL (LOWER)
28W11174382 Whirlpool Wire Harness
29CLOTH, HARNESS PROTECTOR
