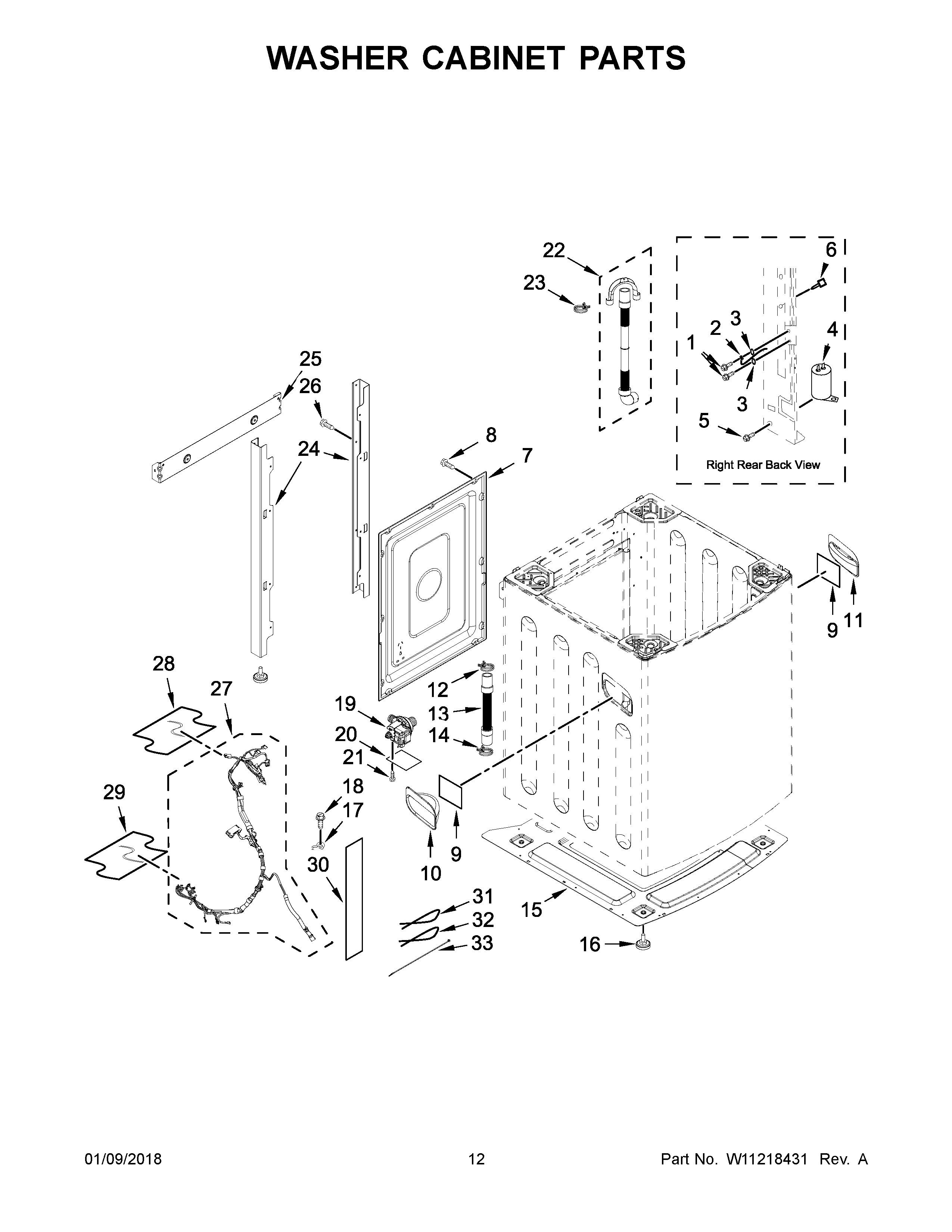

YWET4024HW0 07 – WASHER CABINET PARTS

Products

Position	Product
1	SCREW
2	WIRE, GROUND
3	4159493 Whirlpool Lockwasher
4	W11176560 Whirlpool Capacitor Assembly
5	W10882000 Whirlpool Screw
6	RETAINER, HARNESS
7	PANEL, REAR
8	SCREW
9	FOIL, INSULATION
10	W11174485 Whirlpool Handle Assembly
11	HANDLE (RIGHT)
12	W10883714 Whirlpool Hose Clamp
13	W10882096 Whirlpool Hose
14	W10883610 Whirlpool Hose Clamp
15	BASE, WASHER
16	W11176431 Whirlpool Leveling Feet
17	CLAMP, WIRE
18	W10869499 Whirlpool Screw
19	W10906604 Whirlpool Drain Pump
20	PAD, DRAIN PUMP
21	W10883733 Whirlpool Screw
22	W11727711 Whirlpool Hose
23	W10883711 Whirlpool Hose Clamp
24	BRACKET, VERTICAL SUPPORT
25	BRACKET, CROSS SUPPORT
26	SCREW
27	W11174407 Whirlpool Wire Harness
28	CLOTH, HARNESS PROTECTOR (CABINET CONNECTIONS UPPER)
29	CLOTH, HARNESS PROTECTOR (MOTOR CONNECTIONS LOWER)
30	SOUND ABSORBER (CABINET)
31	W11178919 Whirlpool Wire Tie
32	TWIST TIE, HARNESS
33	W10883819 Whirlpool Tie Wire
