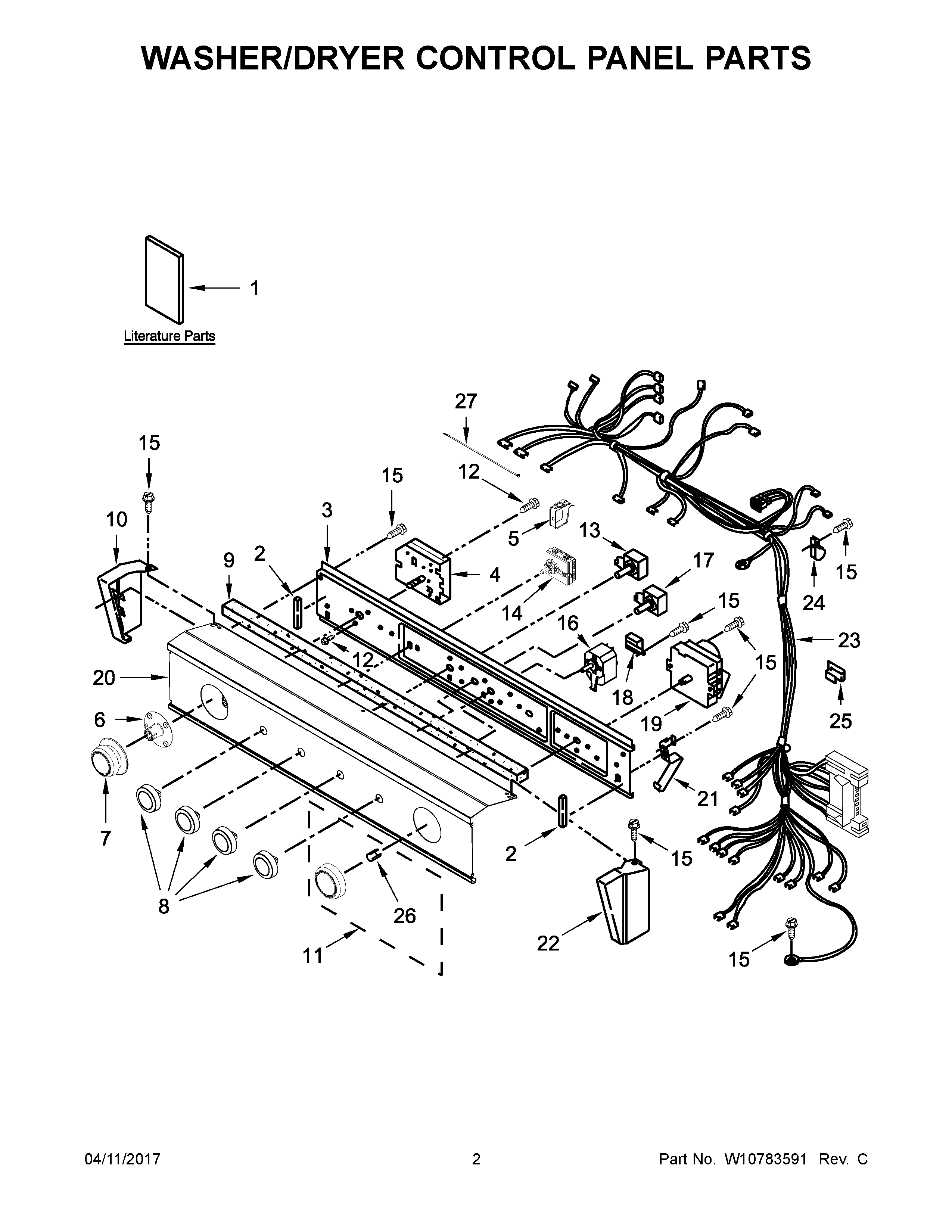

YWET4027EW0 02 – WASHER/DRYER CONTROL PANEL PARTS

Products

Position	Product
1A	USE AND CARE GUIDE
1	INSTALLATION INSTRUCTIONS
1C	WIRING DIAGRAM
1B	ENERGY GUIDE
2	3390688 Whirlpool Bumper Assembly
3	W10732070 Whirlpool Bracket
4	WPW10113804 Whirlpool Timer Assembly
5	W10210799 Whirlpool Clip
6	W11174845 Whirlpool Washer/Dryer Knob Dial
7	W11116863 Whirlpool Knob
8	W11034979 Whirlpool Knob
9	8521965 Whirlpool Gasket
10	END CAP (LEFT) (WHITE)
11	W11104717 Whirlpool Dial
12	W10915367 Whirlpool Screw Assembly
13	WPW10544357 Whirlpool Cycle Switch
14	W11103597 Whirlpool Temperature Switch
15	WP90767 Whirlpool Screw
16	WP3404233 Whirlpool Dryer Starter Switch
17	W10851055 Whirlpool Cycle Switch
18	WP694419 Whirlpool Buzzer Adjuster
19	W10854240 Whirlpool Laundry Center Dryer Timer
20	PANEL, CONTROL (WHITE)
21	3389453 Whirlpool Hinge Assembly
22	END CAP (RIGHT) (WHITE)
23	WIRING HARNESS, MAIN
24	7111P002-60 Whirlpool Clamp
25	Clip, Harness (2)
26	WP8536939 Whirlpool Spring Clip
27	WPW10334336 Whirlpool Tie Wire
