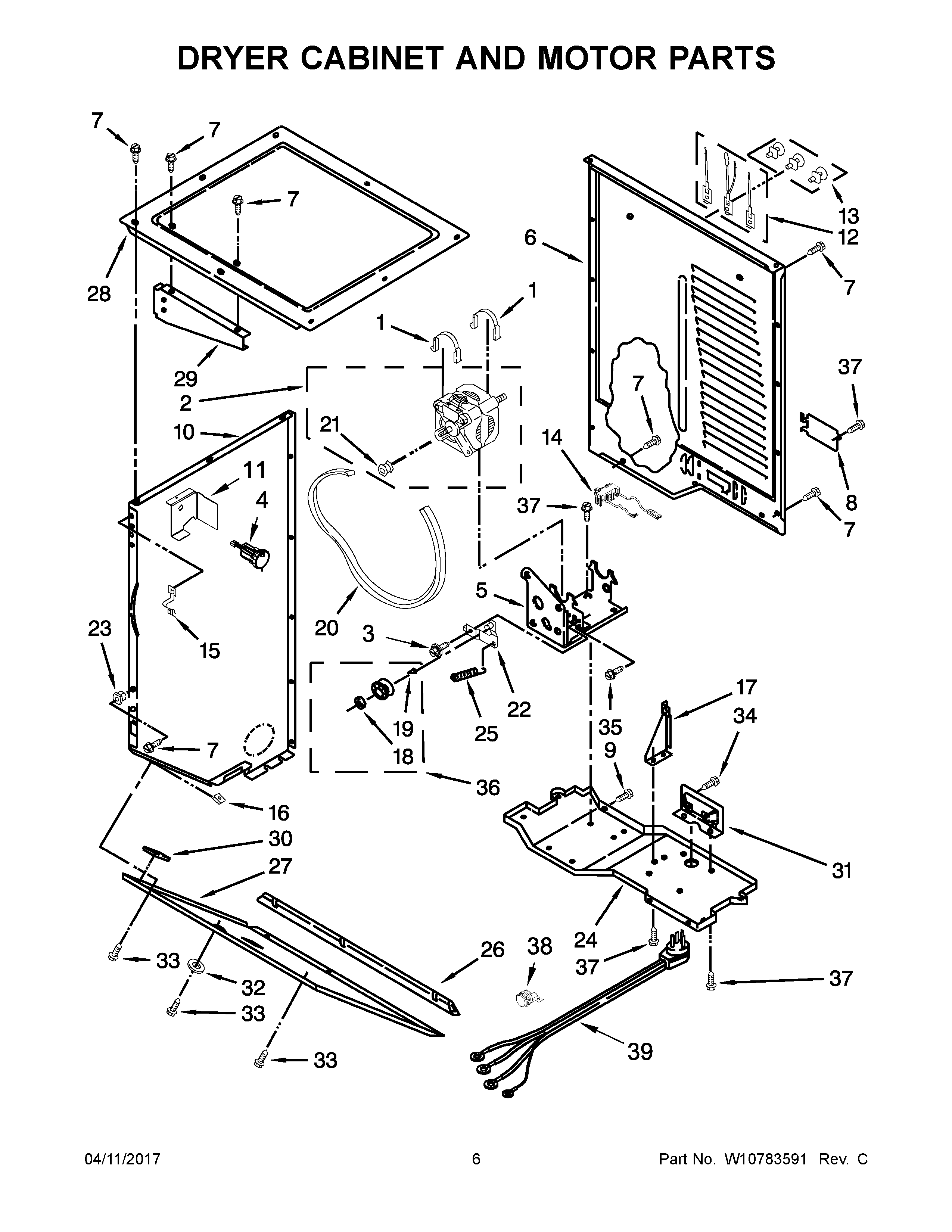

YWET4027EW0 04 – DRYER CABINET AND MOTOR PARTS

Products

Position	Product
1	CLAMP
3	WP3389420 Whirlpool Screw
4	W11129441 Whirlpool Washer Water Level Switch
5	W11107903 Whirlpool Bracket
6	W10892491 Whirlpool Rear Panel
7	SCREW
8	BRACKET, TERMINAL BLOCK
9	W10850756 Whirlpool Screw
10A	3389256 Whirlpool Panel
10	3389264 Whirlpool Panel Assembly
11	BRACKET, PRESSURE SWITCH
12	279318 Whirlpool Terminal
13	279393 Whirlpool Terminal Block Screw and Nut Kit
14	WPW10411937 Whirlpool Switch
15	3389231 Whirlpool Clip Front Panel
16	WP98234 Whirlpool Nut
17	3391639 Whirlpool Bracket Assembly
18	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19	WPW10121334 Whirlpool Washer
20	661570V Whirlpool Dryer Drum Belt
21	279811 Whirlpool Dryer Drive Motor
22	WPW10547294 Whirlpool Idler Pulley
23	WP692400 Whirlpool Nut
24	W10360901 Whirlpool Dryer Base
25	WPW10446781 Whirlpool Spring
26	3389683 Whirlpool Cover Assembly
27	3389272 Whirlpool Panel
29	3390722 Whirlpool Shield Assembly
30	3389682 Whirlpool Spacer
31	3393721 Whirlpool Bracket
32	WP3389431 Whirlpool Bumper Assembly
33	WP693304 Whirlpool Screw
34	WP273556 Whirlpool Screw
35	WP98129 Whirlpool Screw
36	279640 Whirlpool Dryer Idler Pulley Kit
37	WP3390631 Whirlpool Screw
38	687000 Whirlpool Connector
39	WPL W10237089
