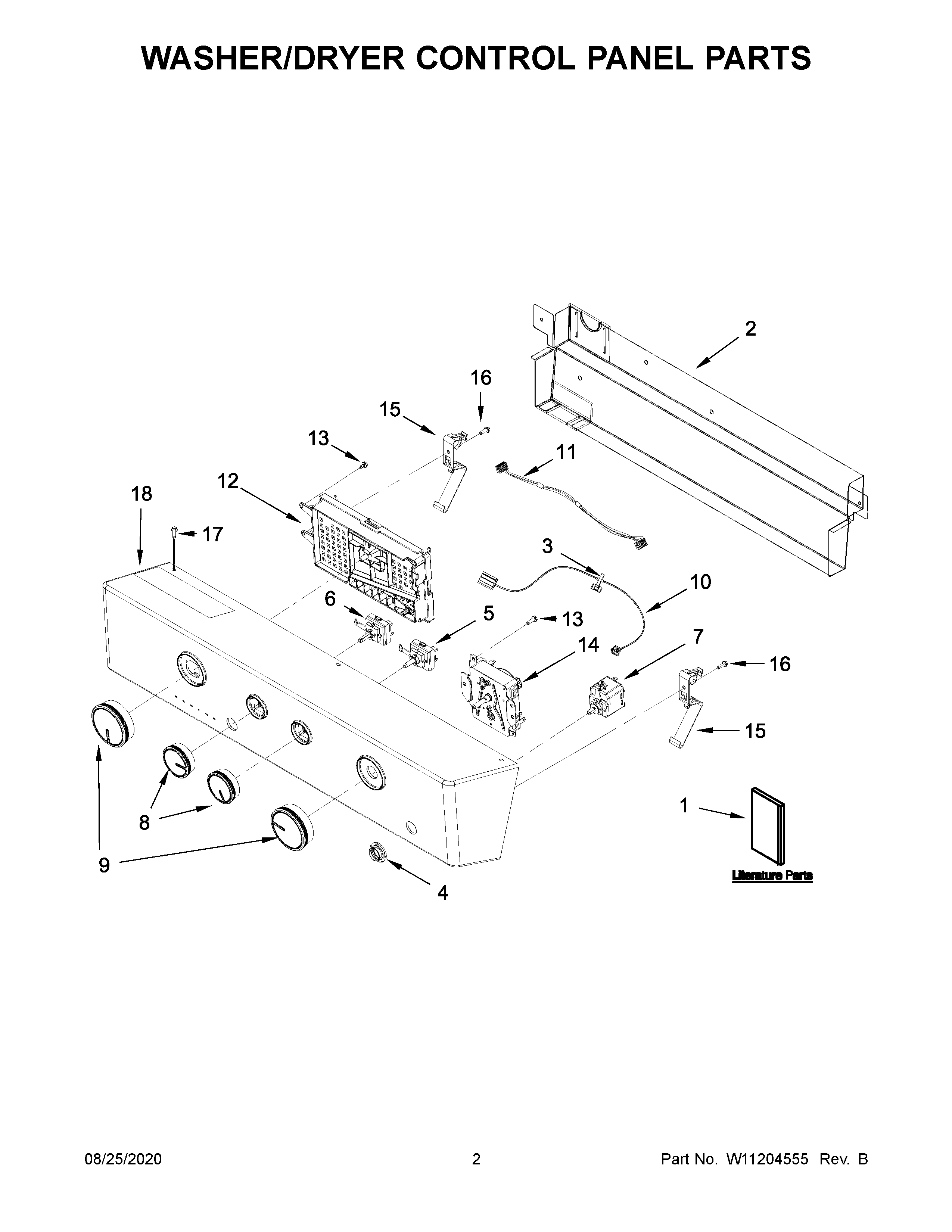

YWET4027HW0 02 – WASHER/DRYER CONTROL PANEL PARTS

YWET4027HW0 02 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

YWET4027HW0 02 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1AINSTALLATION INSTRUCTIONS
1BENERGY GUIDE
2W11040441 Whirlpool Bracket
3W10210799 Whirlpool Clip
4W11049351 Whirlpool Button
5W10859568 Whirlpool Cycle Switch
6W11168256 Whirlpool Cycle Switch
7WPW10420741 Whirlpool Dryer Start Switch
8W10770857 Whirlpool Knob
9W11678130 Whirlpool Washer Knob
10W11028056 Whirlpool Wire Harness
11W10694669 Whirlpool Wire Harness
12W11629601-includeCORE Whirlpool W11629601 Washer Electronic Control Board + Core
13WP90767 Whirlpool Screw
14W10854240 Whirlpool Laundry Center Dryer Timer
153389453 Whirlpool Hinge Assembly
16WP9740848 Whirlpool Dishwasher Screw
17W11590579 Whirlpool Screw
18W11367045 Whirlpool Control Panel
