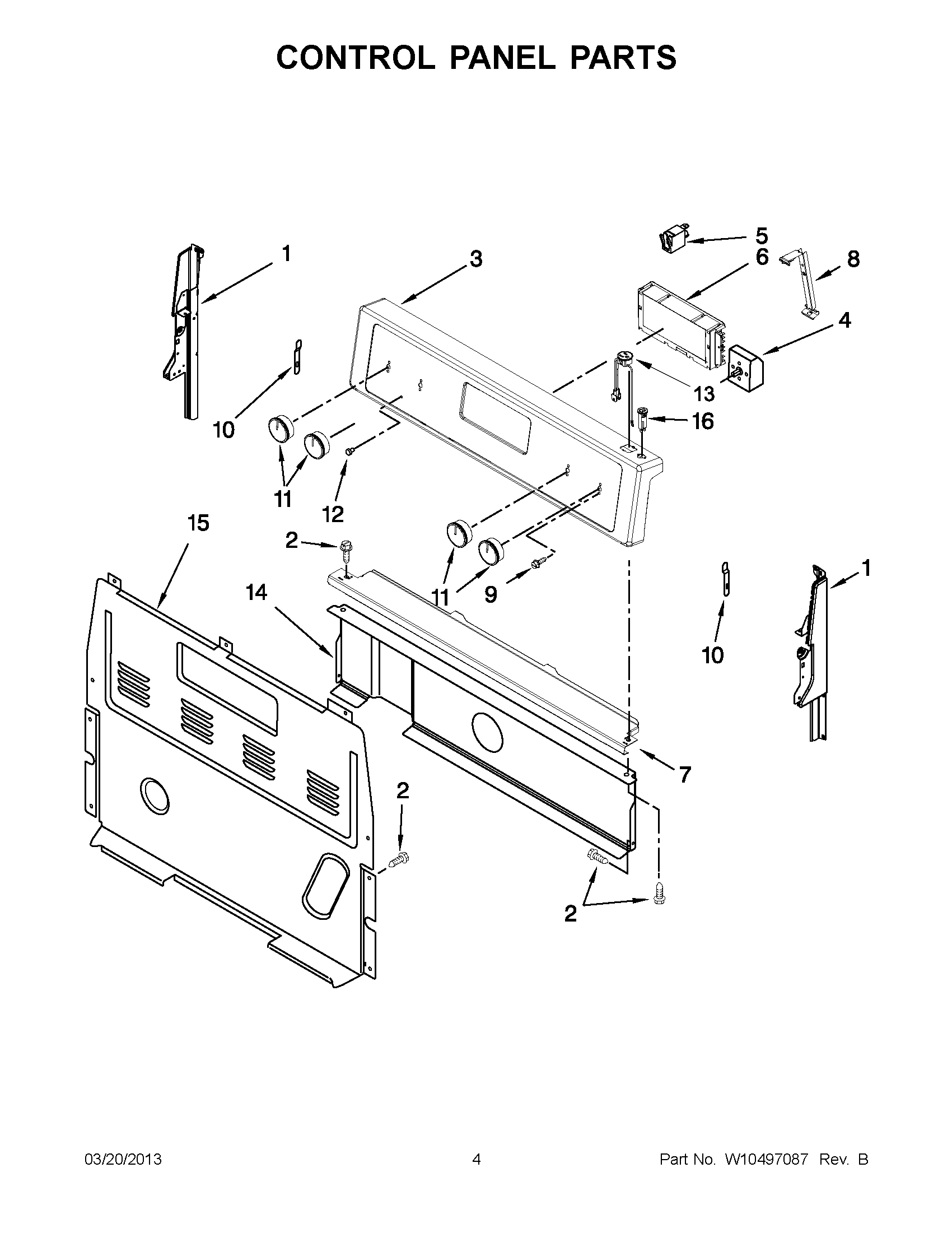

YWFC150M0AB0 02 – CONTROL PANEL PARTS
Written by
in
YWFC150M0AB0 02 – CONTROL PANEL PARTS
Products
Position
Product
1
W11219665 Whirlpool Panel Endcap
1
W11219664 Whirlpool Endcap Panel
1
W11219370 Whirlpool Endcap Panel
1
W11219365 Whirlpool Panel Endcap
2
WP4449154 Whirlpool Screw
3
PANEL, CONSOLE (STAINLESS)
3
PANEL, CONSOLE (WHITE)
3
PANEL, CONSOLE (BLACK STAINLESS)
4
SWITCH-INF
4
WP3149404 Whirlpool Oven Surface Element Switch
5
WP8523265 Whirlpool Indicator Light
6
W11122557 Whirlpool Electronic Control Board + Core
6
W11122555 Whirlpool Electronic Control Board + Core
6
W11122560 Whirlpool Control Board + Core
7
W10525121 Whirlpool Control Bracket
8
W11230932 Whirlpool Bracket Mounting
9
WP3400882 Whirlpool Screw
10
3196200 Whirlpool Clip
11
WPW10490037 Whirlpool Knob
11
WPW10490038 Whirlpool Knob
12
WP3196068 Whirlpool Light Lens
13
W10849725 Whirlpool Electrical Outlet
13
W10861164 Whirlpool Electrical Outlet
14
W10134247 Whirlpool Heat Shield
15
WP8272473 Whirlpool Rear Cover
16
WP9757601 Whirlpool Breaker
16
WP9757602 Whirlpool Breaker
←
