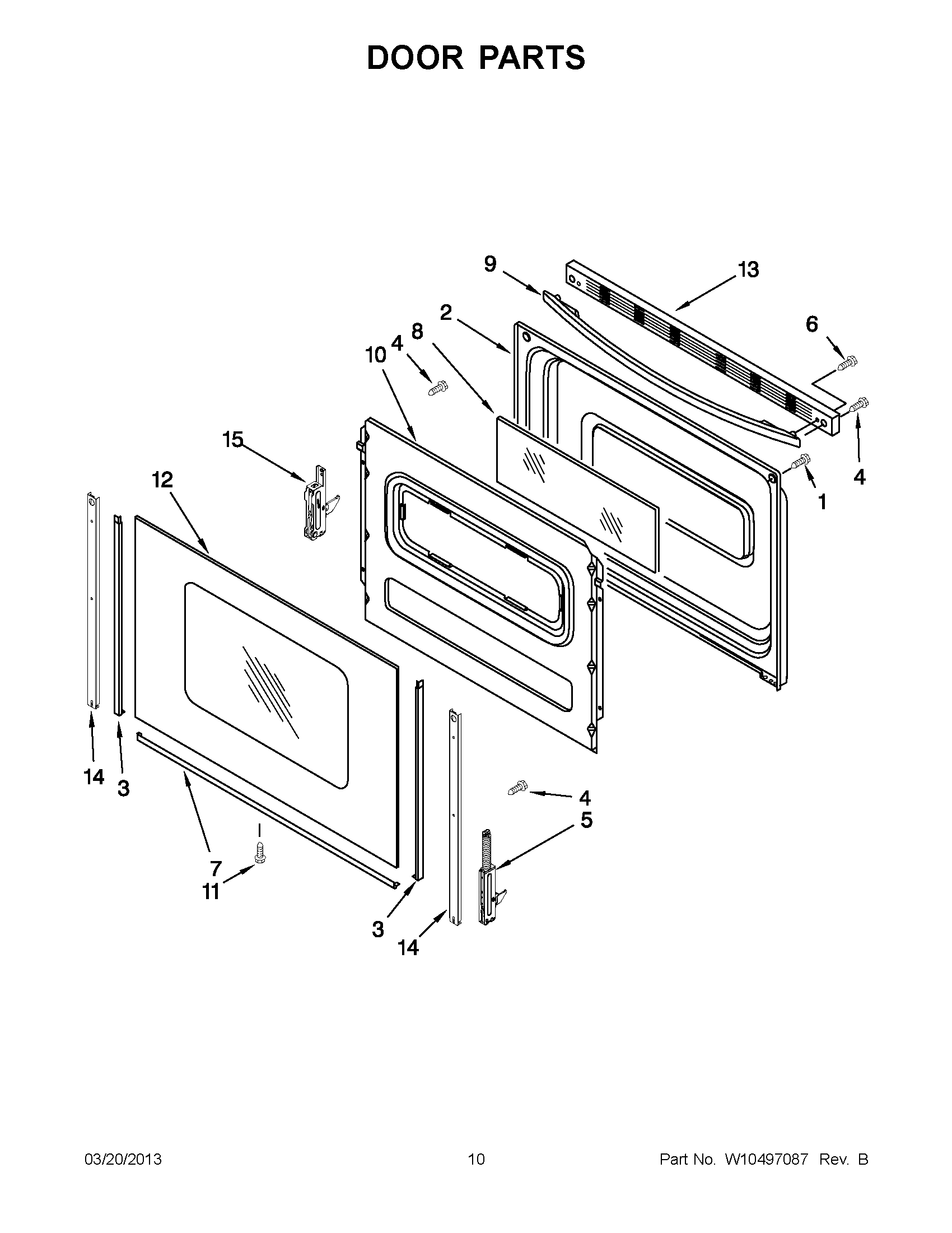

YWFC150M0AS0 05 – DOOR PARTS

YWFC150M0AS0 05 – DOOR PARTS

Written by

in

YWFC150M0AS0 05 – DOOR PARTS

Products

PositionProduct
1WPW10031790 Whirlpool Screw
2WP9761344 Whirlpool Door Liner
3W10761014 Whirlpool Right Door Trim
3WP8523166 Whirlpool Door Trim
3WP8523172 Whirlpool Left Door Trim
3W10761018 Whirlpool Dishwasher Left Door Trim
4WPW10200660 Whirlpool Range Oven Door Handle Screw
5WPW10299225 Whirlpool Door Hinge
6WPW10465148 Whirlpool Screw
7WP8523177 Whirlpool Door Trim Assembly
7WP8523175 Whirlpool Door Trim Assembly
8WP8053948 Whirlpool Door Glass
9W10300490 Whirlpool Door Handle
9W10300489 Whirlpool Door Handle
10W11685635 Whirlpool Retainer
11WP3196175 Whirlpool Screw
12WPW10409945 Whirlpool Glass Door
12WPW10409946 Whirlpool Door Glass
12WPW10409948 Whirlpool Door Glass
13W10817433 Whirlpool Vent Trim
13TRIM-VENT
14W11502236 Whirlpool Door Trim
15WPW10299227 Whirlpool Range Door Hinge
