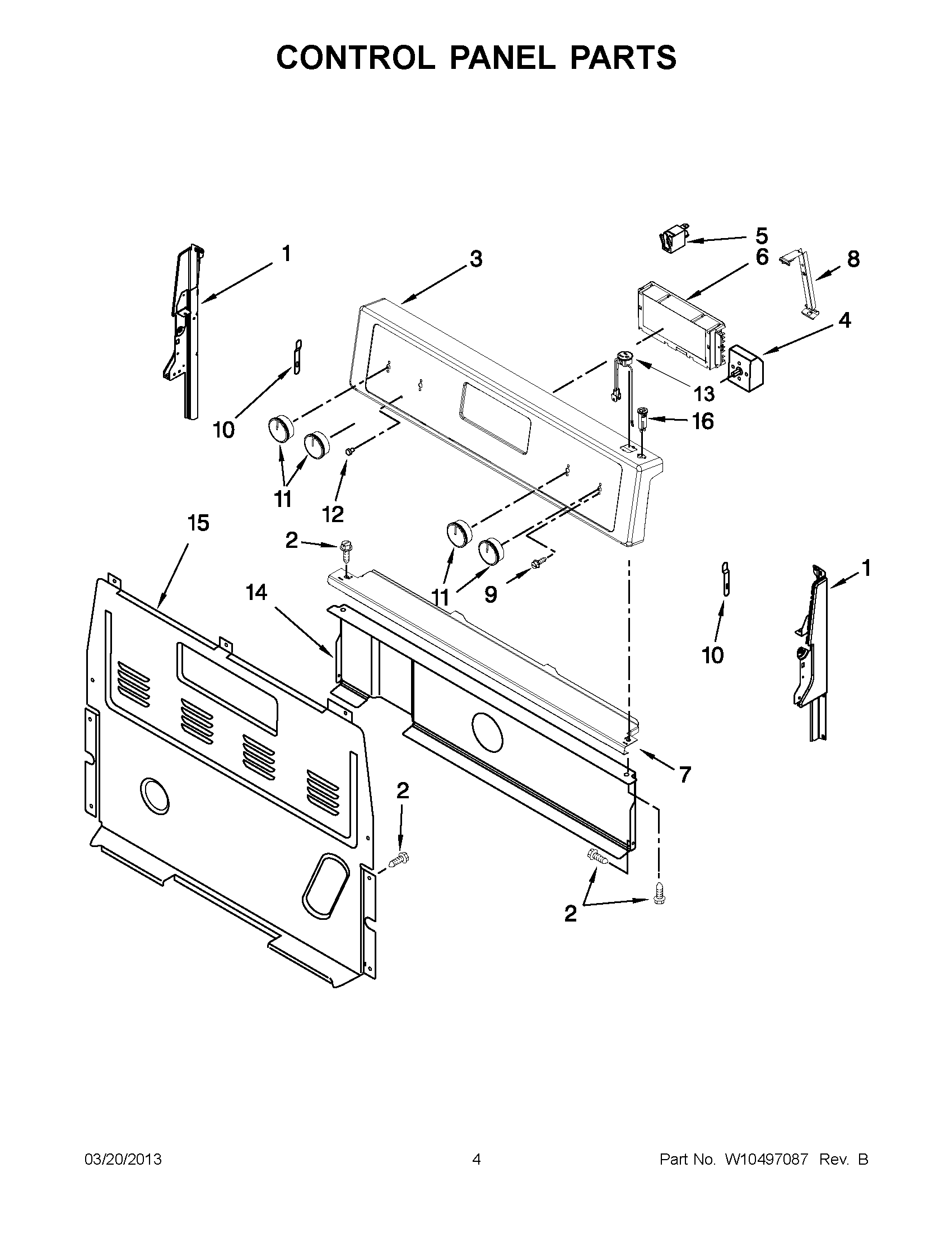

YWFC150M0AW0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
2	WP4449154 Whirlpool Screw
3	PANEL, CONSOLE (STAINLESS)
3	PANEL, CONSOLE (WHITE)
3	PANEL, CONSOLE (BLACK STAINLESS)
4	SWITCH-INF
4	WP3149404 Whirlpool Oven Surface Element Switch
5	WP8523265 Whirlpool Indicator Light
6	W11122557 Whirlpool Electronic Control Board + Core
6	W11122555 Whirlpool Electronic Control Board + Core
6	W11122560 Whirlpool Control Board + Core
7	W10525121 Whirlpool Control Bracket
8	W11230932 Whirlpool Bracket Mounting
9	WP3400882 Whirlpool Screw
10	3196200 Whirlpool Clip
11	WPW10490037 Whirlpool Knob
11	WPW10490038 Whirlpool Knob
12	WP3196068 Whirlpool Light Lens
13	W10849725 Whirlpool Electrical Outlet
13	W10861164 Whirlpool Electrical Outlet
14	W10134247 Whirlpool Heat Shield
15	WP8272473 Whirlpool Rear Cover
16	WP9757601 Whirlpool Breaker
16	WP9757602 Whirlpool Breaker
