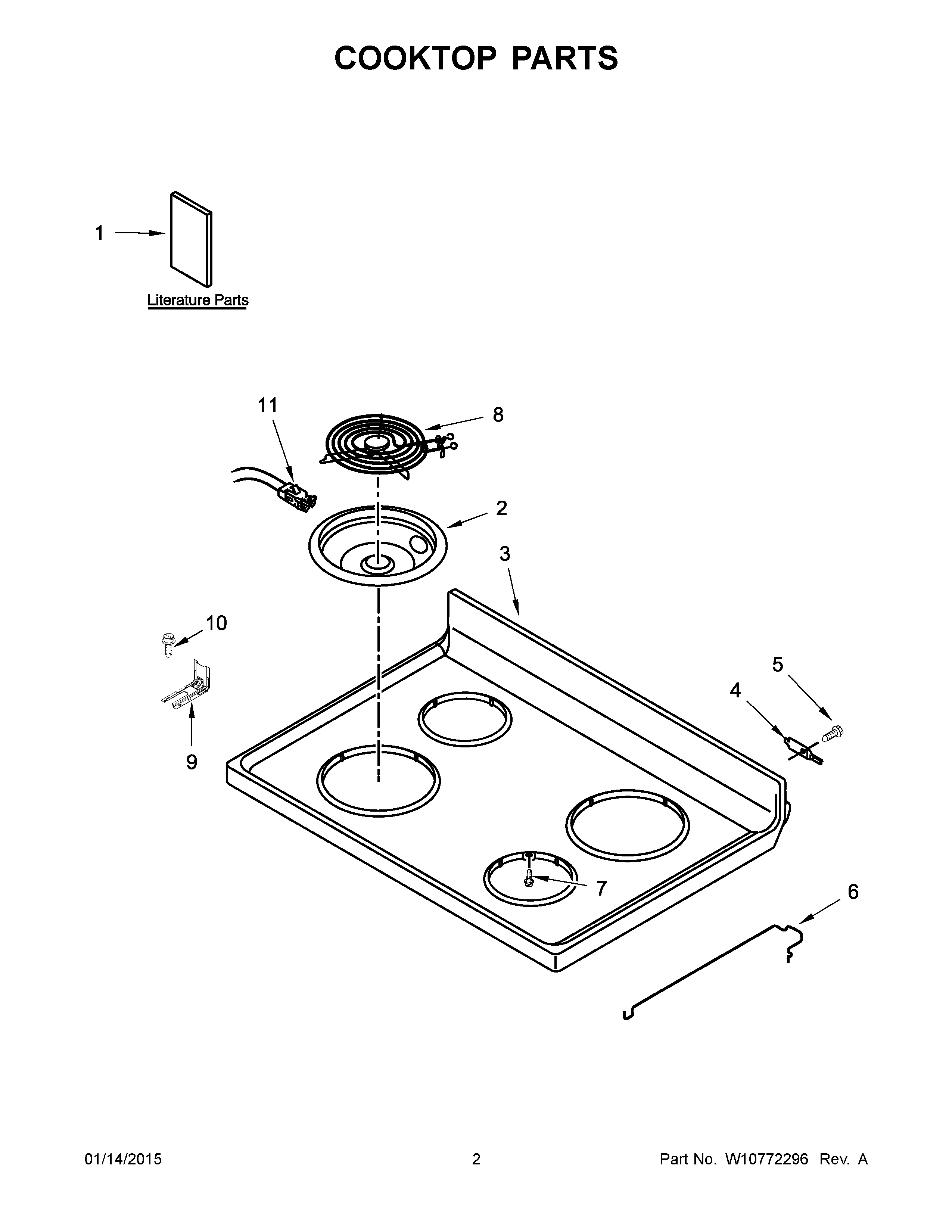

YWFC150M0EB0 02 – COOKTOP PARTS

Products

Position	Product
NI	WIRING HARNESS PARTS, HARNESS, MAIN
NI	WPW10281322 Whirlpool Connector
NI	WPW10295595 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11232223 Whirlpool Wire Harness
1	INSTRUCTIONS, INSTALLATION
1A	SHEET, TECH (ENGLISH)
1B	SHEET, TECH (FRENCH)
1D	Safer Cooking Tips (French)
1C	SAFER COOKING TIPS (ENGLISH
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
2A	DRIP BOWL 8" W/HOLE CHROME
3A	8195532 Whirlpool Cooktop Power Switch
3	8195534 Whirlpool Cooktop
4	WP3195060 Whirlpool Cooktop Pin
5	SCREW
6	WP3195812 Whirlpool Cooktop Rod
7	WP4449154 Whirlpool Screw
8A	W11161939 Whirlpool Range Surface Element 8"
8	W11168414 Whirlpool Range 6" Surface Element
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
11	814399 Whirlpool Receptacle Kit
