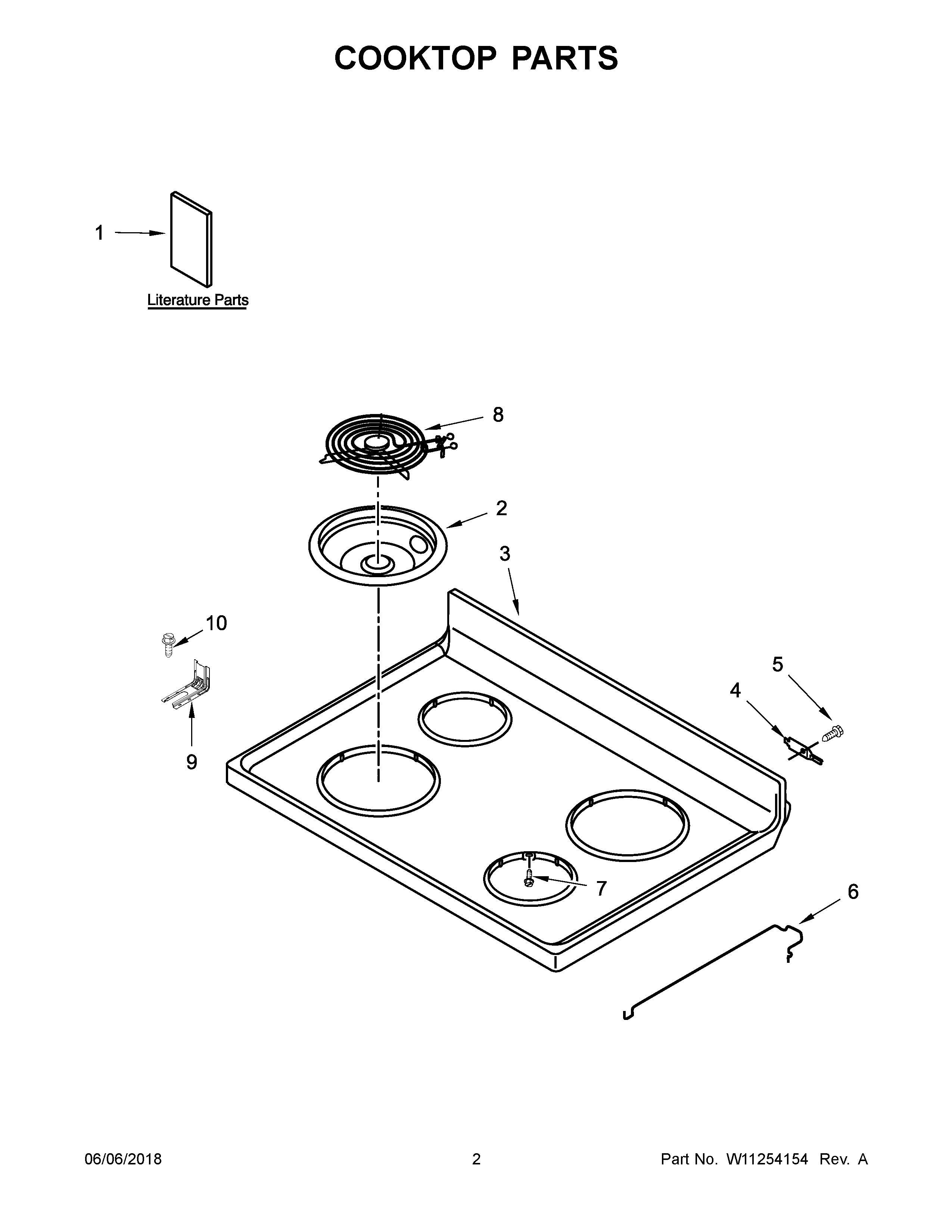

YWFC150M0EB2 02 – COOKTOP PARTS

YWFC150M0EB2 02 – COOKTOP PARTS

Written by

in

YWFC150M0EB2 02 – COOKTOP PARTS

Products

PositionProduct
NIWIRING HARNESS PARTS, HARNESS, MAIN
NIWPW10295595 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NIW11232223 Whirlpool Wire Harness
1INSTRUCTIONS, INSTALLATION
1AUSE AND CARE GUIDE
1BWIRING DIAGRAM
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2ADRIP BOWL 8" W/HOLE CHROME
3A8195532 Whirlpool Cooktop Power Switch
38195534 Whirlpool Cooktop
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP3195812 Whirlpool Cooktop Rod
7WP4449154 Whirlpool Screw
8AELMNT-SURF
8W11396792 Whirlpool Surface Coil Element
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
