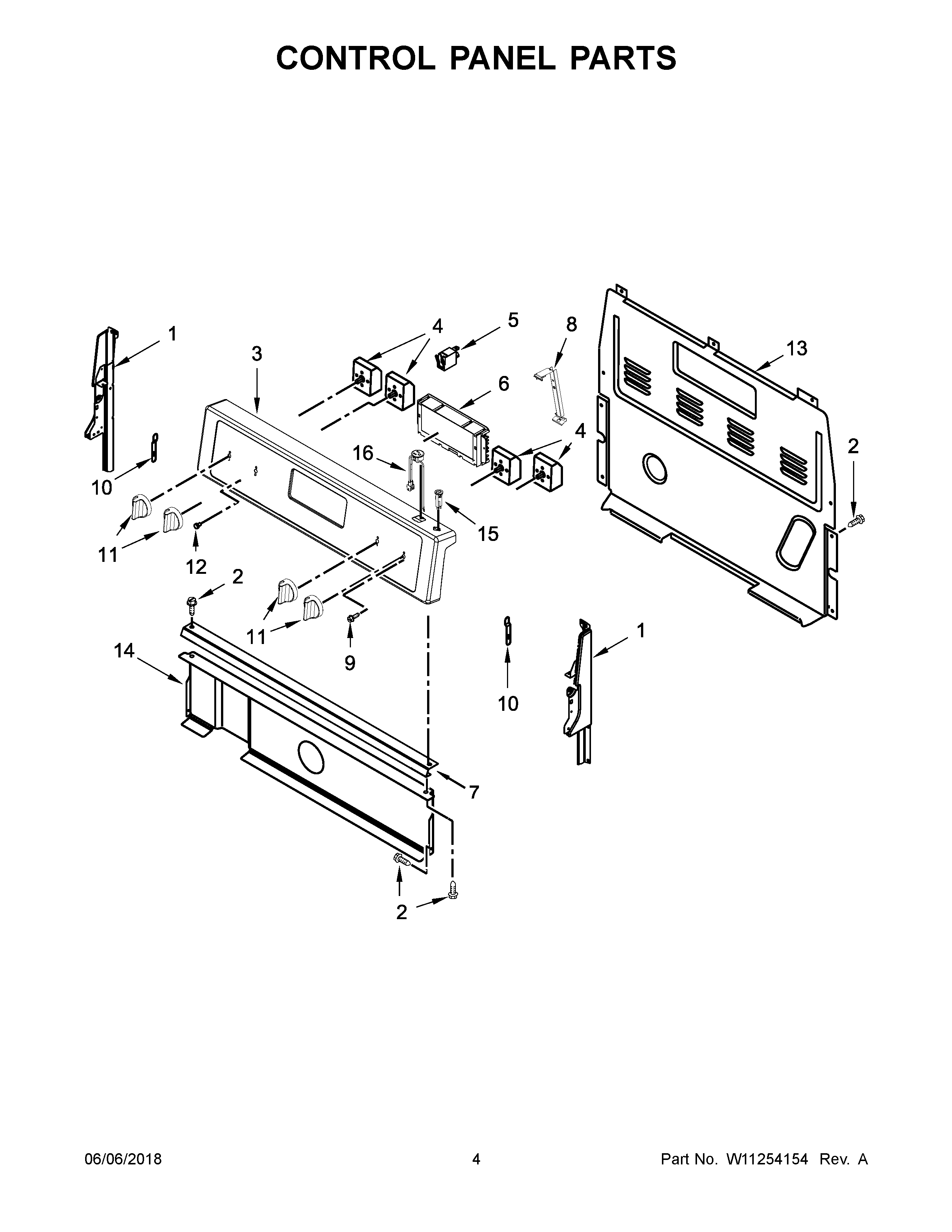

YWFC150M0EB2 03 – CONTROL PANEL PARTS

YWFC150M0EB2 03 – CONTROL PANEL PARTS

Written by

in

YWFC150M0EB2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW11219370 Whirlpool Endcap Panel
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
1BW11219365 Whirlpool Panel Endcap
2SCREW
3APANEL, CONSOLE (WHITE)
3PANEL, CONSOLE (BLACK)
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5WP8523265 Whirlpool Indicator Light
6AW11122557 Whirlpool Electronic Control Board + Core
6W11122555 Whirlpool Electronic Control Board + Core
7W10525121 Whirlpool Control Bracket
8W11230932 Whirlpool Bracket Mounting
9WP3400882 Whirlpool Screw
103196200 Whirlpool Clip
11W10836470 Whirlpool Knob Assembly
11AW10853029 Whirlpool Knob
12WP3196068 Whirlpool Light Lens
13WP8272473 Whirlpool Rear Cover
14W10134247 Whirlpool Heat Shield
15AWP9757601 Whirlpool Breaker
15WP9757602 Whirlpool Breaker
16AW10849725 Whirlpool Electrical Outlet
16RECEPTACLE (BLACK)
